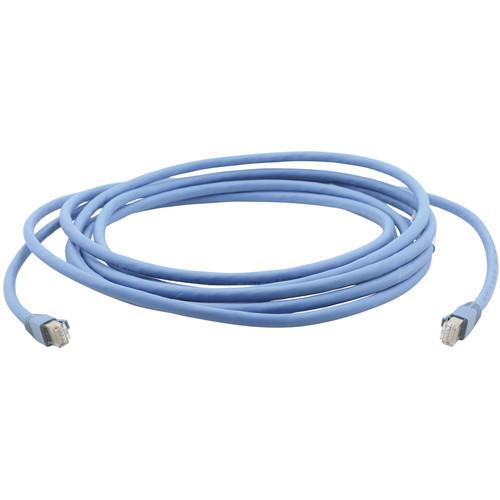

Product description Connect your HDBaseT-compatible equipment with the blue 164' Kramer CAT6a HDBaseT Cable. It features gold-plated RJ-45 connectors to help resist corrosion and enhance data transfer speeds. - Construction Features
-
- Conductors: 4 x 2 x 23 AWG, annealed copper
- Conductor Outer Diameter: 0.56 ± 0.01mm
- Insulation Material: Skin/foam/skin HDPE
- Insulation Outer Diameter: 1.33 ± 0.1mm
- Color: Per TIA/EIA 568-B
- Screening: Alu/PET per pair (Alu side out)
- Drain Wire: 90% tinned copper
- Drain Wire Outer Diameter: 0.4 ± 0.01mm
- Jacket: LSHF, blue RAL5012
- Physical Features
-
- Maximum Pulling Tension: 100 N
- Bending Radius: Installation 2.36", Installed 1.97"
- Operation Temperature: -4 to 140°F
- Storage/Transport/Installation Temperature: 32 to 122°F
- Electrical Features
-
- Impedance at 1 to 100 MHz: 100
|
Upload User Manual
Have you got an user manual for the Kramer 164' CAT6a HDBaseT Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKramer C-UNIKAT-164 Specs | | | Cable Length | 164' / 49.99 m | | Ethernet Standards | Cat 6a | | Connector 1 | RJ45 Male | | Connector 2 | RJ45 Male | | Compatibility | 10/100/1000 Base-T | | | | Bandwidth Rating | 500 MHz | | Conductor DC Resistance | 0.0243 Ohms/ft (Up to 3280' / 1000 m) | | Capacitance | 0.4572 pF/ft | | Impedance | 100 Ohms | | | | Shielding | None | | Cable Configuration | Solid | | Outer Diameter | 0.052" / 1.33 mm | | Wire Gauge | 23 AWG | | Contact Plating | Gold | | Insulation | HDPE | | | | Package Weight | 6.35 lb | | Box Dimensions (LxWxH) | 10.3 x 10.3 x 3.6" |
