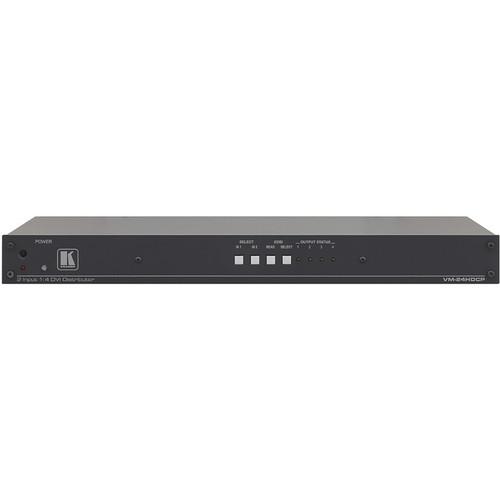

User Manual for Kramer 2:4 DVI Distribution Amplifier Click to enlarge the picture
Contents of the user manual for the Kramer 2:4 DVI Distribution Amplifier
- Product category: Distribution Amplifiers (DA's) Kramer
- Brand: Kramer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kramer Distribution Amplifiers (DA's)
|
User manual for the Kramer 2:4 DVI Distribution Amplifier contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kramer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kramer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kramer product will considerably shorten its lifespan!
|
Product description The Kramer 2:4 DVI Distribution Amplifier is designed to distribute DVI signals across 4 identical outputs. Offering 2 input ports for DVI signals, the distribution amplifier reclocks and equalizes one of the 2 input signals for loss-less duplication of the signal across all 4 outputs. It features a high 2.25Gbps data transfer rate for efficient transmission.
Featuring I-EDIDPro for EDID processing, the distribution amplifier offers an intelligent EDID handling and processing algorithm for plug-n-play operation with DVI systems. The unit allows you to control transmission via a front panel and IR switching. It is compatible with HDTVs and compliant with HDCP standards. The 19” rack mount size (1U) 2:4 distribution amplifier is powered via 100-240V AC. - Designed to distribute DVI signals across 4 identical outputs
- 2 input ports for DVI signals
- Reclocks and equalizes one of the 2 input signals for loss-less duplication of the signal across all 4 outputs
- High 2.25Gbps data transfer rate for efficient transmission
- Features I-EDIDPro for EDID processing
- Offers an intelligent EDID handling and processing algorithm for plug-n-play operation with DVI systems
- Control via front panel and IR switching
- Power source - 100-240V AC
- Standard 19" rack mount size - 1U
In the Box Kramer 2:4 DVI Distribution Amplifier Power Cord Rack "Ears" Null-Modem Adaptor Windows-based Control Software Infrared Remote Control Transmitter 7-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer 2:4 DVI Distribution Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKramer VM-24HDCP Specs | Input | 2 DVI, 1.2Vpp on a DVI Molex 24-pin (F) connector, DDC signal 5Vpp (TTL) | | Output | 4 DVI, 1.2Vpp on DVI Molex 24-pin (F) connectors, DDC signal 5Vpp (TTL) | | Bandwidth | Supports up to 2.25Gbps bandwidth per graphic channel | | Controls | EDID select, EDID read, IN 1, IN 2 buttons, RS-232, IR | | Indicators | Output status LEDs | | Power Source | 100 - 240V AC, 50/60Hz, 17VA | | Dimensions (WxDxH) | 19 x 7 x 1.75" (482.6 x 177.8 x 44.45 mm) | | Weight | 5.5 lb (2.5 kg) | | | | Package Weight | 5.2 lb | | Box Dimensions (LxWxH) | 21.4 x 11.0 x 4.3" |
