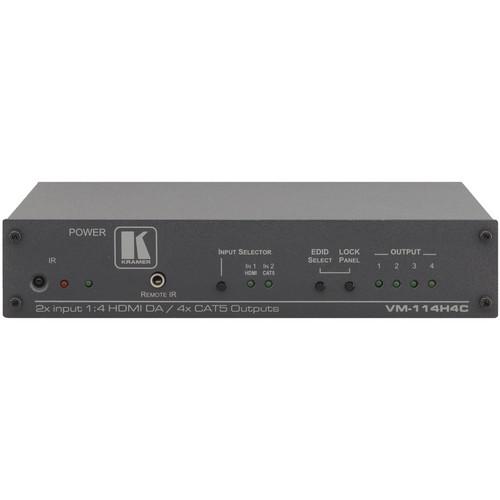

Product description Kramer's 2-Input 1:4 HDMI Twisted Pair Transmitter & Distribution Amplifier selects, reclocks and equalizes one of two inputs and distributes it over shielded twisted pair to four receivers, each sold separately. The two inputs are an HDMI and a twisted pair. The latter is there for the purpose of accepting HDMI signals converted by an HDMI-to-twisted pair converter, also sold separately. The reason for converting an HDMI signal instead of connecting it directly into the HDMI input is because twisted pair carries signals for much longer distances.
A great type of twisted pair cable to use is Kramer's DGKat twisted pair. It prevents cross-talk between pairs to avoid flickering. - Key Features
-
- Kramer Equalization & re-Klocking Technology allows longer transmission distances
- Intelligent EDID handling and processing algorithm ensures Plug & Play operation for HDMI systems
- Controls: Input Select button, EDID Select button, Panel Lock button
- Indicator LEDs: IR communication, Power, IN 1, IN 2, OUTPUT 1, 2, 3 and 4
- Power Connect System: a connection to the transmitter will power also the optional receiver when it's within 270 ft
- 1RU rack-mountable
- System Range
-
- 295 ft at 1080p or 330 ft at 1080i on shielded BC-DGKat7a23 cable
- 230 ft at 1080p or 295 ft at 1080i on shielded BC-DGKat623 cable
- 98 ft at 1080p or 295 ft at 1080i on shielded BC-DGKat524 cable
In the Box Kramer 2-Input 1:4 HDMI Twisted Pair Transmitter & Distribution Amplifier Power Supply IR Remote 7-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer 2-Input 1:4 HDMI Twisted Pair Transmitter & Distribution Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKramer VM-114H4C Specs | Inputs | 1x HDMI, 1x twisted pair on an RJ-45 connector | | Outputs | 4x twisted pair on RJ-45 connectors | | Bandwidth | Up to 1.65 Gbps per graphic channel | | Transmission | 295 ft @ 1080p / 330 ft @ 1080i on shielded BC-DGKat7a23 cable (90 / 100 m)
230 ft @ 1080p / 295 ft @ 1080i on shielded BC-DGKat623 cable (70 / 90 m)
98 ft @ 1080p / 295 ft @ 1080i on shielded BC-DGKat524 cable (30 / 90 m) | | HDCP Compliance | Yes | | Power Source | 12V DC, 2A | | Dimensions | 8.5 x 6.4 x 1.7" (21.5 x 16 x 4.3 cm) | | Weight | Approx. .67 lb (.3 kg) | | | | Package Weight | 3.85 lb | | Box Dimensions (LxWxH) | 13.5 x 8.4 x 3.0" |
