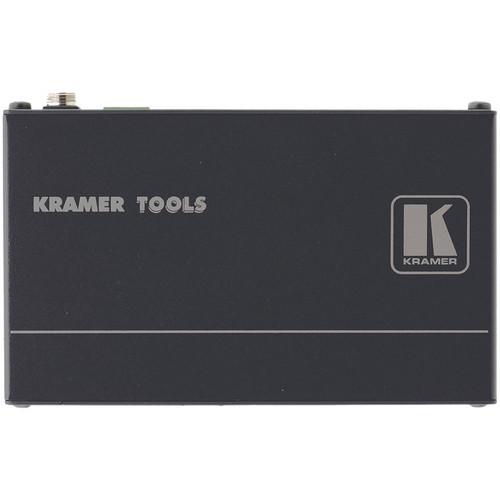

User Manual for Kramer 2 x 1 DisplayPort Switcher with IR Click to enlarge the picture
Contents of the user manual for the Kramer 2 x 1 DisplayPort Switcher
- Product category: Routers & Switchers Kramer
- Brand: Kramer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kramer Routers & Switchers
 |
User manual for the Kramer 2 x 1 DisplayPort Switcher contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kramer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kramer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kramer product will considerably shorten its lifespan!
|
Product description The Kramer 2 x 1 DisplayPort Switcher with IR is a high-performance switcher designed for DisplayPort signals and offers a maximum data transfer rate of 10.8 Gbps (2.7 Gbps per video stream). The device allows you to switch any of the 2 inputs to a single output. The DisplayPort Output is provided in high-resolution and up to 16-bit color over 4 video streams. Being HDCP compliant and HDTV compatible, the switcher is suitable for presentation and multimedia applications. You can control the 2 x 1 DisplayPort Switcher via the front panel buttons or remotely via contact closure or IR remote. A contact closure remote control is used for forced operation and flexible sync detection along with reconstruction circuitry. An optional RK-3T rack adaptor allows you to mount 3 units side-by-side in a 1U rack space. - High-performance automatic switcher for switching between 2 inputs and a single output
- Designed for switching DisplayPort signals
- Maximum data rate - 10.8 Gbps (2.7 Gbps per video stream)
- DisplayPort output - high-resolution, up to 16-bit color over 4 video streams
- Ideal for presentation and multimedia applications

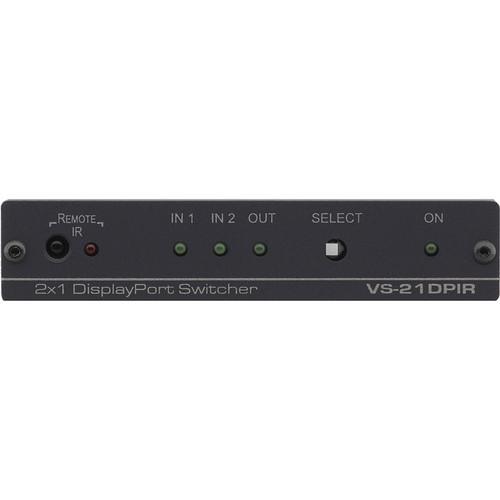

- Control via front panel buttons or remotely via contact closure or IR remote
- Contact closure remote control for forced operation
- Optional RK-3T rack adaptor for mounting 3 units side side-by-side in a 1U rack space

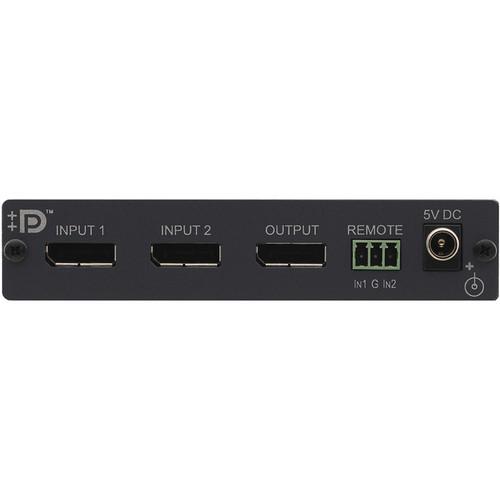

- Inputs - 2 DisplayPort connectors
- Outputs - 1 DisplayPort connector
In the Box Kramer 2 x 1 DisplayPort Switcher with IR RC-IR2 Infrared Remote Control Transmitter (including batteries and user manual) 5V DC Power Cord User Manual 7-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer 2 x 1 DisplayPort Switcher with IR in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKramer VS-21DP-IR Specs | Inputs | 2 DisplayPort connectors | | Outputs | 1 DisplayPort connector | | Bandwidth | Up to 2.7 Gbps bandwidth per graphics channel | | Compliance With HDMI Standard | Supports DisplayPort 1.1 and HDCP 1.3 | | Controls | Input SELECT button, IR remote control, contact closure remote control pins | | LED Indicators | IN 1, IN 2, OUT, and ON LEDs | | Power Source | 5V DC, 70mA | | Dimensions (WxDxH) | 4.72 x 2.44 x 0.96" (12 x 7.15 x 2.44cm) | | Options | Kramer DisplayPort cables , RK-3T 19" rack adapter | | Weight (Approx.) | 0.66 lb (0.3 kg) | | | | Package Weight | 1.4 lb | | Box Dimensions (LxWxH) | 9.1 x 5.5 x 3.9" |
