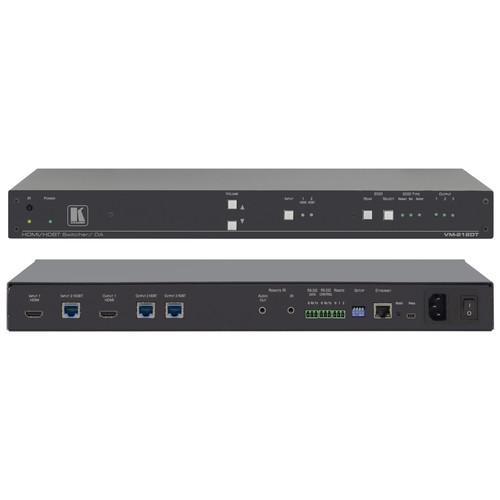

User Manual for Kramer 2x1:2 4K UHD HDMI and HDBaseT Distribution Amplifier Click to enlarge the picture
Contents of the user manual for the Kramer 2x1:2 4K UHD HDMI and
- Product category: Distribution Amplifiers (DA's) Kramer
- Brand: Kramer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kramer Distribution Amplifiers (DA's)
|
User manual for the Kramer 2x1:2 4K UHD HDMI and contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kramer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kramer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kramer product will considerably shorten its lifespan!
|
Product description Provided by third party: The VM-212DT is 4K@60Hz (4:2:0) HDMI & extended-reach HDBaseT DA for HDMI and HDBaseT signals. It reclocks and equalizes the signal and distributes it to two identical HDBaseT outputs and a looping HDMI output. It supports resolutions up to 4K@60Hz (4:2:0). This product offers the versatility of control options and audio de-embedding.
- Key Features
-
- HDCP compliant
- HDMI support
- Automatic live input detection
- Looping HDMI output
- I - EDIDPro Kramer Intelligent EDID Processing
- System range
- Lockable EDID and default EDID
- HDCP compliant
- Works with sources that support HDCP repeater mode.
- HDMI support
- Deep Color, x.v.Color and 3D.
- Automatic live input detection
- Based on video clock presence.
- Looping HDMI output
- Allow monitoring and cascading to additional DAs.
- I - EDIDPro Kramer Intelligent EDID Processing
- Intelligent EDID handling & processing algorithm ensures Plug and Play operation for HDMI systems.
- System range
- Up to 130m (430ft) at normal mode (2K), up to 100m at normal mode (4K); up to 180m (590ft) ultra mode (1080p @60Hz @24bpp) when using BC - UNIKAT cables.
- Lockable EDID and default EDID
- For fast and efficient connection of the unit.
Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer 2x1:2 4K UHD HDMI and HDBaseT Distribution Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKramer VM-212DT Specs | | | Type | Distribution amplifier / switcher | | Width | 17.2 in | | Depth | 7.2 in | | Height | 1.7 in | | Weight | 2.87 lbs | | | | Features | HDCP compliant, EDID support | | | | Nominal Voltage | AC 120/230 V | | Frequency | 50/60 Hz | | | | Terminals | (1) x HDMI input - 19 pin HDMI Type A
(1) x HDBaseT input - RJ-45
(1) x HDMI output - 19 pin HDMI Type A
(2) x HDBaseT output - RJ-45
(1) x audio line-out - mini-phone stereo 3.5 mm
(1) x infrared input
(2) x serial - terminal block
(1) x remote control bus - terminal block
(1) x network - RJ-45
(1) x USB | | | | Min Operating Temperature | 32
