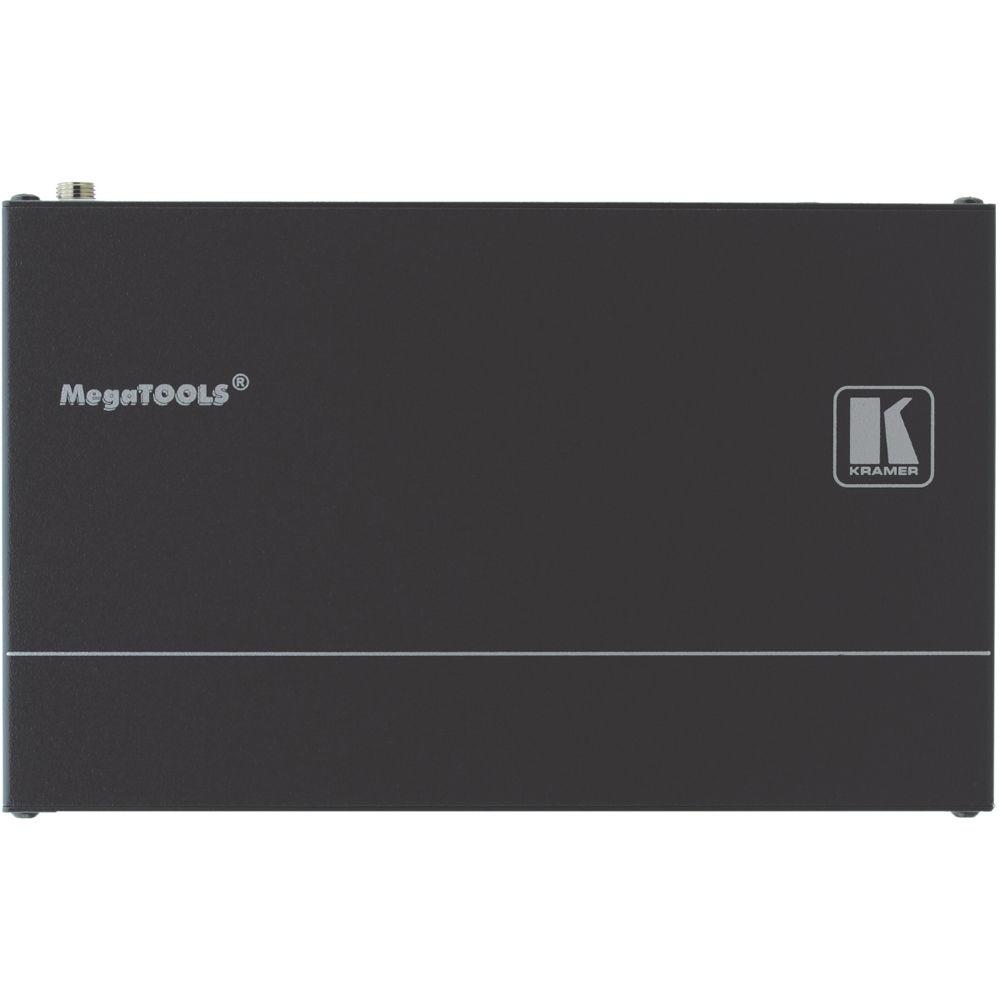

User Manual for Kramer 2x1 4K HDMI Auto Switcher Click to enlarge the picture
Contents of the user manual for the Kramer 2x1 4K HDMI Auto Switcher
- Product category: Routers & Switchers Kramer
- Brand: Kramer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kramer Routers & Switchers
 |
User manual for the Kramer 2x1 4K HDMI Auto Switcher contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kramer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kramer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kramer product will considerably shorten its lifespan!
|
Product description The VS-211UHD 2x1 4K Switcher from Kramer is an automatic switcher for 4K HDMI and analog audio signals. It automatically switches one of the two HDMI inputs to a predefined or last connected input, whenever the currently active video signal is interrupted or whenever a higher-priority video signal is detected. It also supports Kramer's Step-in over HDMI technology. - Features
-
- Maximum data rate of 8.91 Gbps (2.97 Gbps per graphic channel) with 4K UHD support.
- 4K maximum resolution support
- Step-in over HDMI technology
- HDTV compatible
- Active switching; selectable manual or fast auto-switching according to last connected or preset priority
- HDMI 1.4, HDCP, and DVI 1.0 compliant
- HDMI 1.4 supports deep color, 3D, up to 7.1 uncompressed audio channels, ARC (supported on input 1 only)
- HDMI ARC de-embedding; from output to balanced stereo audio line, uncompressed
- Automatic video input detection & selection
- Auto power-off when no HDMI input for 10 seconds (selectable)
- Selectable HDCP switching
- EDID configuration options
- Default EDID
- Contact closure for remote manual switching override
- Audio embedding/de-embedding
- Analog audio input per port
- Lock button
- Firmware upgrade over RS-232 or via mini-USB
- Supports Protocol 3000, EDID Designer, K-Upload via RS-232
- Varied control options; front panel buttons, contact closure, IR, RS-232 protocol 3000
- Mount two units side-by-side in a 1 RU rack-space with the optional RK-T2B rack-adapter
- E/B/U audio
- Applications
-

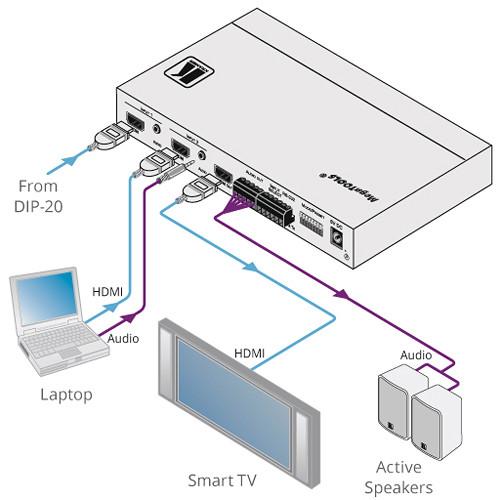

- Systems that require automatic HDMI routing
- Presentation and multimedia applications
In the Box Kramer 2x1 4K HDMI Auto Switcher 5 VDC Power Supply IR Remote Control with Batteries Bracket Set 4 x Rubber Feet Limited 7-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer 2x1 4K HDMI Auto Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

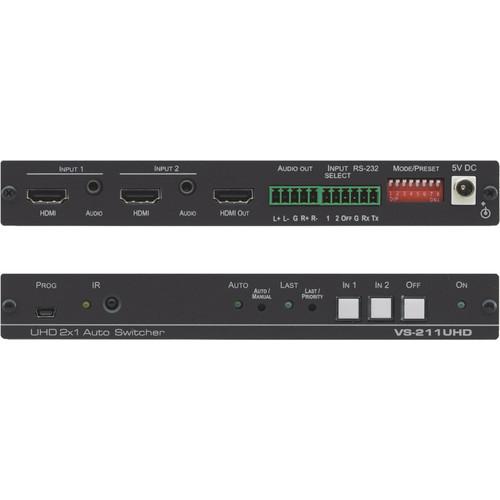

Technical parametersKramer VS-211UHD Specs | Inputs | 2 x HDMI
2 x 1/8" (3.5 mm) Unbalanced stereo audio | | Outputs | 1 x HDMI
1 x Balanced stereo audio on 5-pin terminal block | | Ports | 1 x RS-232 on a 3-pin terminal block
1 x Mini-USB for programming | | HDMI Support | HDMI 1.4, deep color, 3D, ARC, up to 7.1 uncompressed audio channels | | Supported Resolutions | Up to UXGA, 4K x 2K, 4K @ 60 4:2:0 | | Controls | Front panel buttons, contact closure, IR, RS-232 Protocol 3000 | | Software Supported | Protocol 3000, EDID Designer, K-Upload | | Power Consumption | 5 VDC, 520 mA | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | -40 to 158°F (-40 to 70°C) | | Humidity | 10 to 90%, RHL non-condensing | | Dimensions | 7.38 x 4.53 x 1.00" (18.75 x 11.50 x 2.54 cm) | | Weight | 0.9 lb (0.4 kg) approximately | | | | Package Weight | 3.5 lb | | Box Dimensions (LxWxH) | 13.5 x 7.0 x 2.3" |
