User Manual for Kramer 3G HD-SDI to HDMI Format Converter Click to enlarge the picture
Contents of the user manual for the Kramer 3G HD-SDI to HDMI Format
- Product category: Signal Converters Kramer
- Brand: Kramer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kramer Signal Converters
 |
User manual for the Kramer 3G HD-SDI to HDMI Format contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kramer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kramer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kramer product will considerably shorten its lifespan!
|

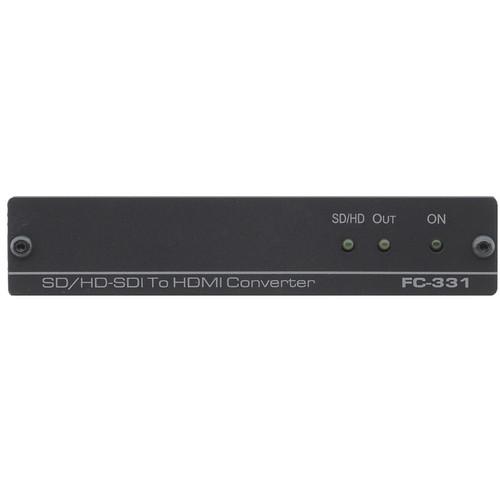

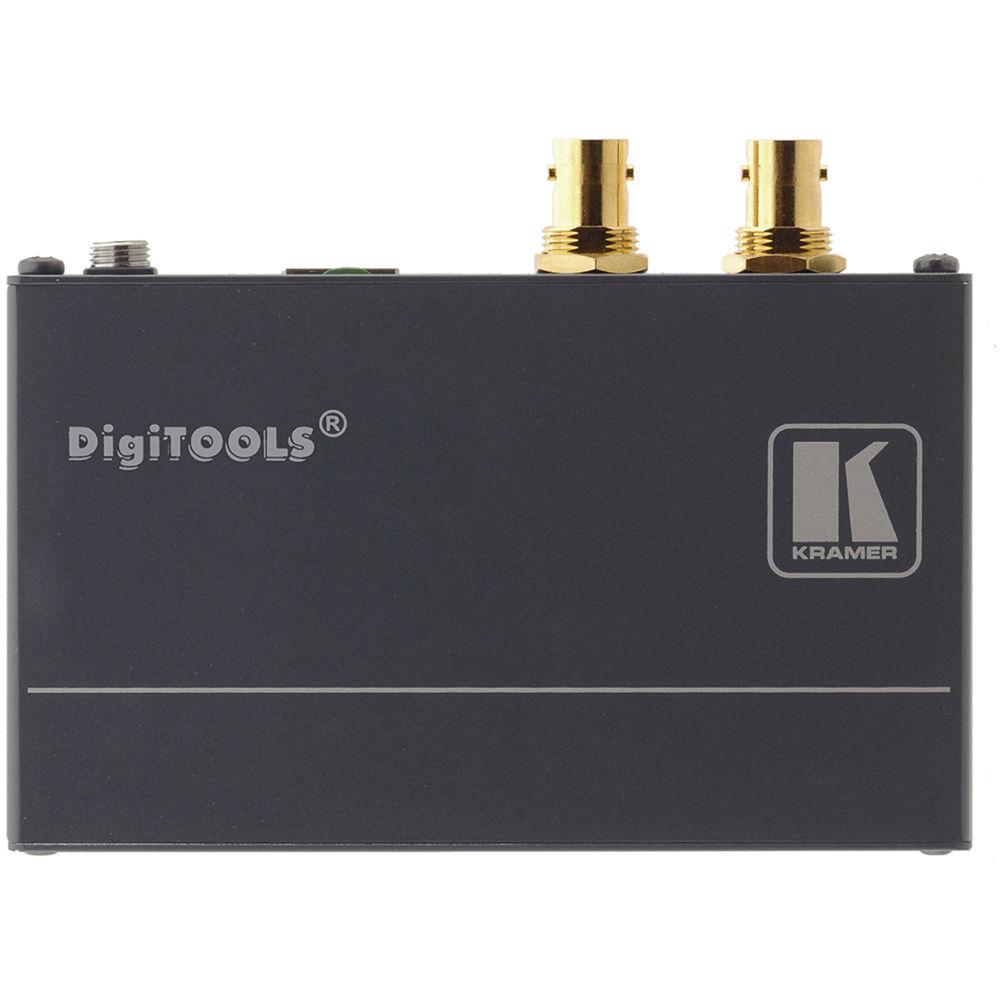

Product description The Kramer 3G HD-SDI to HDMI Format Converter, at a maximum data rate of 3Gbps, converts HDTV signals up to 3G HD-SDI to HDMI output signals. Featuring looping input with reclocking, the converter offers error-free conversion of signals. It is compatible with HDTV signals up to 3G HD-SDI. In addition to Audio Group De-embedded Selection feature, the converter has active input & output LED indicators.
The 3G HD-SDI to HDMI Format Converter can work in different standard modes of operation such as SDI (SMPTE 259M and SMPTE 344M), HD-SDI (SMPTE 292M) and 3G HD-SDI (SMPTE 424M). Being compact (4.7 x 2.8 x 1.0" / 12 x 7.2 x 2.4 cm), 3 units of the converter can be rack-mounted side by side in a 1U rack space with the optional RK-3T rack adaptor. - Converts HDTV signals up to 3G HD-SDI to HDMI output signals
- Maximum data rate of 3Gbps
- Looping input with reclocking - offers error-free conversion of signals
- Compatible with HDTV signals up to 3G HD-SDI
- Audio Group De-embedded Selection feature
- Active input & output LED indicators
- Works in different standard modes of operation such as SDI (SMPTE 259M and SMPTE 344M), HD-SDI (SMPTE 292M) and 3G HD-SDI (SMPTE 424M)
- Compact (4.7 x 2.8 x 1.0" / 12 x 7.2 x 2.4 cm)
- 3 units can be rack-mounted side by side in a 1U rack space with the optional RK-3T rack adaptor
In the Box Kramer 3G HD-SDI to HDMI Format Converter Limited 7-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer 3G HD-SDI to HDMI Format Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

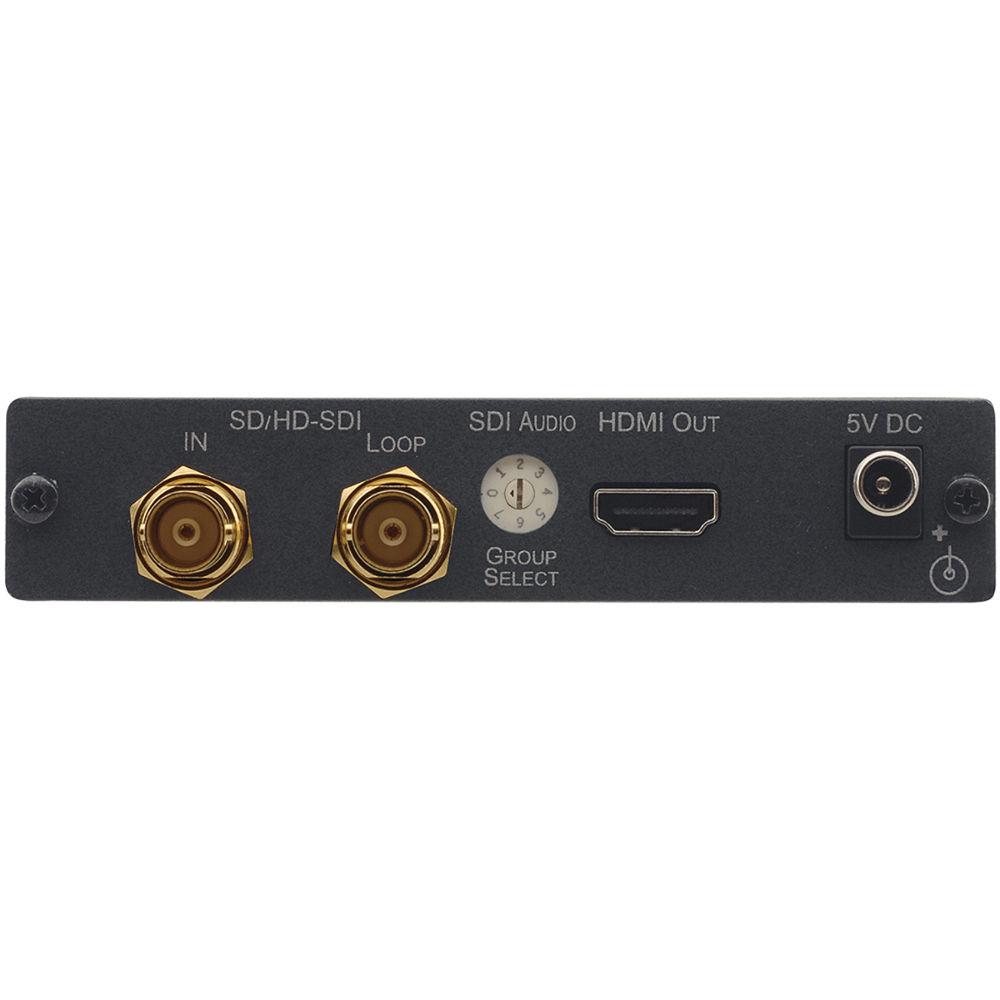

Technical parametersKramer FC-331 Specs | Input | 1 SDI, HD-SDI, 3G HD-SDI on a BNC connector | | Outputs | 1 SDI, HD-SDI, 3G HD-SDI loop on a BNC connector, 1 HDMI connector. | | Data Rate | Up to 3Gbps | | Standard Compliance | HDMI | | LEDs | SD/HD, OUT, ON. | | Power Source | 5V DC, 400mA | | Dimensions | 4.7" x 2.8" x 1.0" / 12 x 7.2 x 2.4cm | | Weight | 0.3kg (0.7lbs) | | Accessories | Power supply | | Options | RK-3T 19" rack adaptor | | | | Package Weight | 1.2 lb | | Box Dimensions (LxWxH) | 9.2 x 4.8 x 3.5" |
