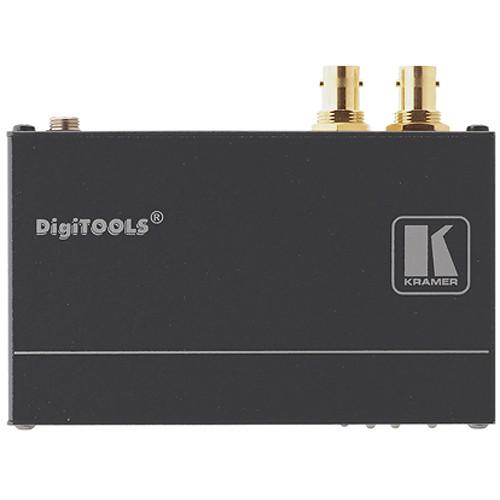

User Manual for Kramer 3G HD-SDI to HDMI Format Converter FC-332 Click to enlarge the picture
Contents of the user manual for the Kramer 3G HD-SDI to HDMI Format
- Product category: Signal Converters Kramer
- Brand: Kramer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kramer Signal Converters
 |
User manual for the Kramer 3G HD-SDI to HDMI Format contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kramer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kramer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kramer product will considerably shorten its lifespan!
|
Product description The Kramer 3G HD-SDI to HDMI Format Converter FC-332 converts an SDI input, along with the audio embedded in it, into two HDMI outputs, without any change in resolution or frame rate. The SDI connector supports a transfer rate of up to 3Gbps and so the highest quality HD can be input via just one SDI connector.

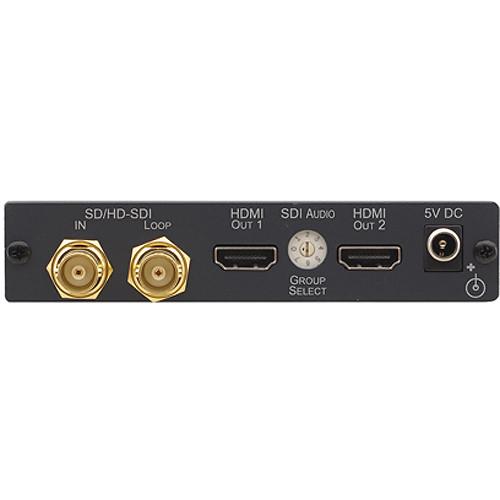

The FC-332 also features an SDI looping input by way of which the SDI input signal is just passed along to an SDI output, without being processed in any way. Also featured is a group-select rotary switch that shows eight channels of embedded audio to choose from. By rotating the switch from 0 to 7, an SDI input stereo channel can be selected.

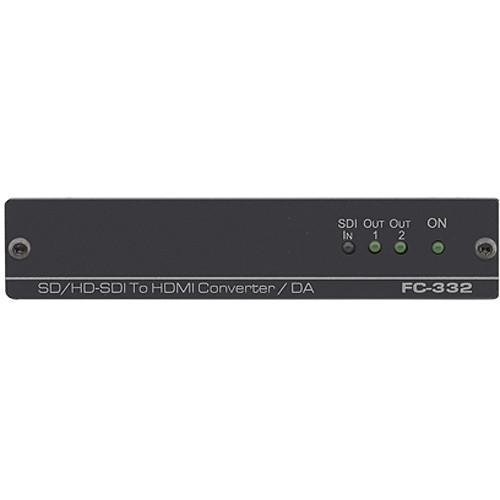

The FC-332 has color-coded LED indicator lights showing SD, HD, OUT, and ON. The device can be kept on a desktop, or can be rack-mounted. To be rack-mounted, it would need to be so side-by-side with two additional units in a 1U rack space by way of an optional RK-3T rack adapter. - Converts an SDI input at up to 3Gps, along with embedded audio, into two HDMI outputs.
- Converts without any change in resolution or frame rate.
- Features an SDI looping input that "passes" original signal to an SDI output.
- A group-select rotary switch shows eight channels of embedded audio to choose from.
- Color-coded LED indicators show SD, HD, OUT, and ON. The device can optionally be rack-mounted.
In the Box Kramer 3G HD-SDI to HDMI Format Converter FC-332 Power Supply Limited 7-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer 3G HD-SDI to HDMI Format Converter FC-332 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKramer FC-332 Specs | Input | One SDI, HD−SDI, or 3G HD−SDI on a BNC connector | | Outputs | One SDI, HD−SDI, 3G HD−SDI loop on a BNC connector; 2 HDMI connectors | | Maximum Data Rate | Up to 3Gbps | | Standard Compliance | HDMI | | Indicator Lights | LEDs showing SD/HD, OUT, ON | | Power Source | 5V DC, 510mA | | Dimensions | 4.7 x 2.8 x 1" (12 x 7.2 x 2.4cm) | | Weight | .7 lbs (.3kg) | | | | Package Weight | 1.15 lb | | Box Dimensions (LxWxH) | 9.1 x 4.9 x 3.4" |
