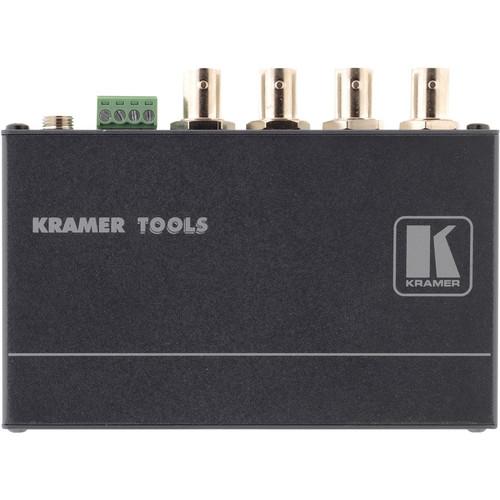

Product description The Kramer 3x1 Video Switcher is used during vertical interval for glitch-free switching with genlocked sources of composite video signals. The switcher is suitable for any professional system requiring high-quality video switching and it is used in video production and broadcast facilities, retail stores, point-of-sale systems, and security/CCTV applications. The video switcher can be controlled with a contact closure remote switching capability, which allows you to route an input to the output by remote control. It offers a maximum video bandwidth (-3dB) of 46MHz and maximum video output of 1.8Vpp/ 75Ω. The optional RK-3T rack adapter allows you to rack mount 3 units side-by-side in a 1U rack space. - High-performance unit for composite video signals
- Switching during the vertical interval ensures glitch-free switching with genlocked sources
- Ideal for any professional system requiring high-quality video switching
- Suitable for video production and broadcast facilities, retail stores, point-of-sale systems, and security/CCTV applications

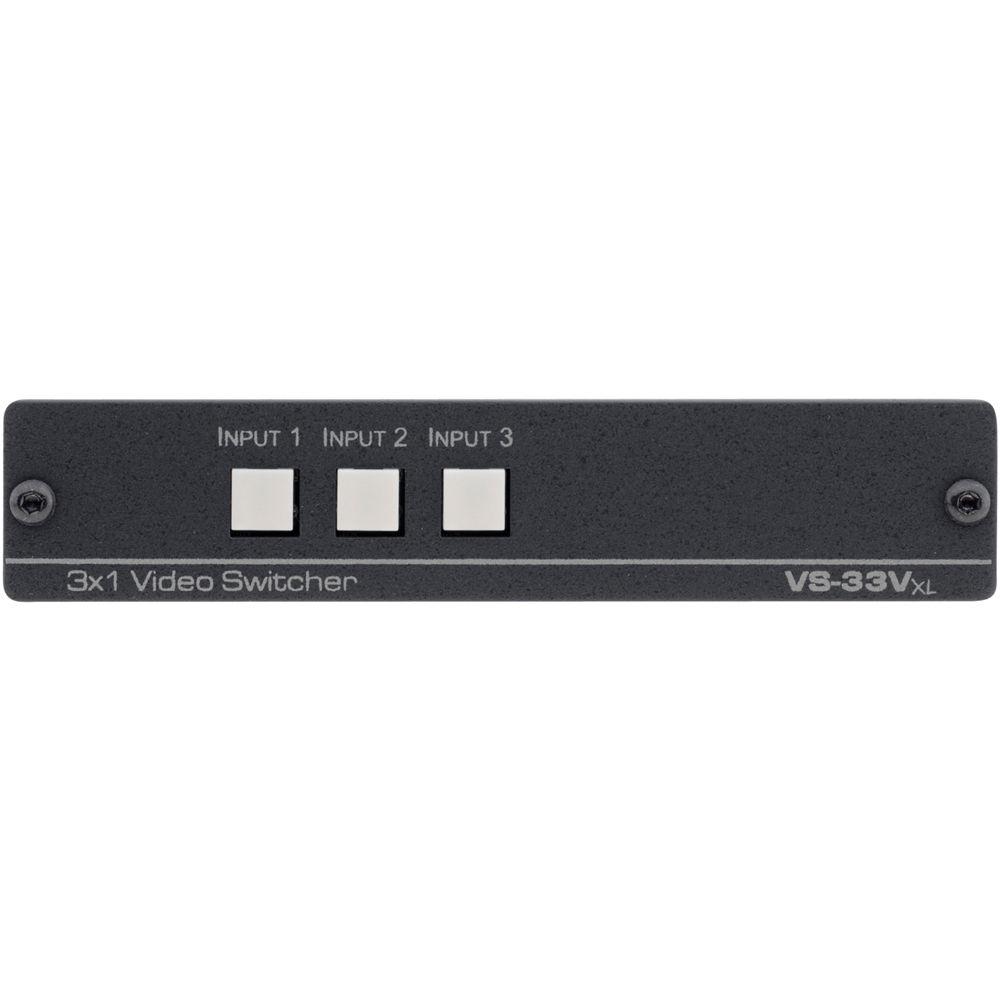

- Control the switcher via input selector buttons or contact closure remote connector
- Maximum video bandwidth 46MHz (-3dB)
- Maximum video output 1.8Vpp/ 75Ω
- Optional RK-3T rack adapter

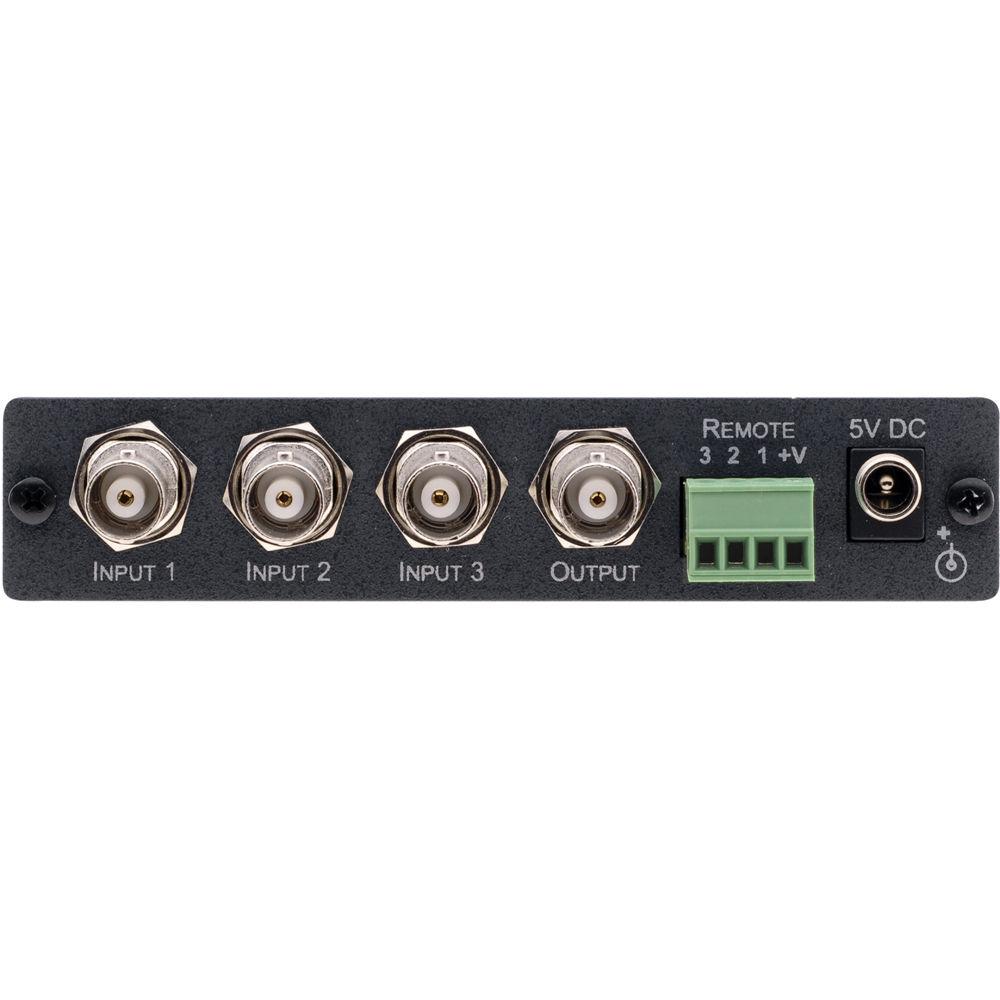

- Input - 3 composite video, 1Vpp/75Ω on BNC connectors
- Output - 1 composite video, 1Vpp/75Ω on a BNC connector
In the Box Kramer 3x1 Video Switcher Power Adapter 7-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer 3x1 Video Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKramer VS-33VXL Specs | Input | 3 composite video, 1Vpp/75 on BNC connectors | | Output | 1 composite video, 1Vpp/75 on a BNC connector | | Video Bandwidth | 46MHz | | Video Signal-to-Noise Ratio | 73dB | | Differential Phase | 0.52° | | Differential Gain | 1.25% | | Switching | Vertical interval | | Crosstalk | -44dB@5MHz | | Power Source | 5VDC, 22mA | | Dimensions | 4.7 x 1 x 2.7" (12 x 2.4 x 7cm) | | Weight | 0.7 lbs (0.3kg) | | | | Package Weight | 1.25 lb | | Box Dimensions (LxWxH) | 9.5 x 5.0 x 3.8" |
