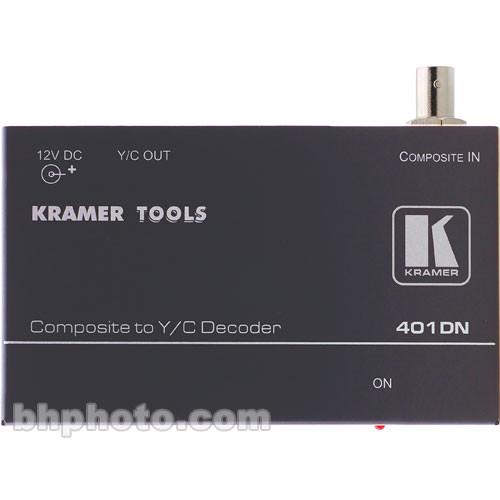

User Manual for Kramer 401DN Analog Video Signal Converter - Composite to Y C Click to enlarge the picture
Contents of the user manual for the Kramer 401DN Analog Video Signal Converter
- Product category: Signal Converters Kramer
- Brand: Kramer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kramer Signal Converters
|
User manual for the Kramer 401DN Analog Video Signal Converter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kramer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kramer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kramer product will considerably shorten its lifespan!
|
Product description The Comprehensive/Kramer 401DN is a high performance analog video signal converter; it accepts a composite video signal and converts the signal to a Y/C (S-Video) output signal. - Full Compensation
- Y/C delay can be a problem but, this device has full compensation for a very clean conversion.
- 12 Volt DC Operation
- This unit can be powered by any 12 VDC supply making it great for location operations where AC voltage may be difficult to access.
- Compact Size
- Measuring less than 5" in length this unit will fit in studio "in line" situations and on desktops very easily.
In the Box Kramer 401DN Analog Video Signal Converter - Composite (BNC) to Y/C (S-Video) AC Power Adapter Mounting Bracket Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer 401DN Analog Video Signal Converter - Composite to Y C in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKramer 401DN Specs | Input | Composite Video, 1 Vpp @ 75 ohms, on a BNC connector | | Output | Y/C (S-Video), Y: 1 Vpp C: 0.3 Vpp @ 75 ohms, on a 4-Pin connector | | Conversion | Composite analog video to Y/C (S-Video) analog video | | Control | None | | Power Source | 12 VDC on a Supplied AC Power Adapter | | Dimensions (WxDxH) | 4.7 x 2.95 x 0.98"
12 x 7.5 x 2.5cm | | Weight | 0.62 lbs
280 grams | | | | Package Weight | 1.45 lb | | Box Dimensions (LxWxH) | 9.3 x 4.9 x 3.5" |
