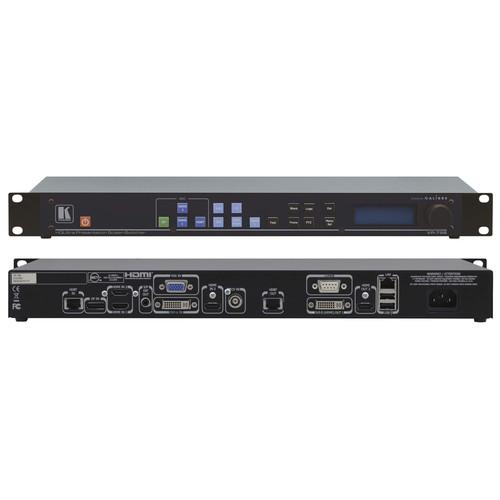

User Manual for Kramer 4K HQUltra HDBaseT and Legacy Presentation Switcher Scaler Click to enlarge the picture
Contents of the user manual for the Kramer 4K HQUltra HDBaseT and Legacy
- Product category: Routers & Switchers Kramer
- Brand: Kramer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kramer Routers & Switchers
|
User manual for the Kramer 4K HQUltra HDBaseT and Legacy contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kramer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kramer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kramer product will considerably shorten its lifespan!
|
Product description The HQUltra HDBaseT and Legacy Presentation Switcher/Scaler from Kramer is a universal 4K presentation scaler-switcher for HDMI, DisplayPort, HDBaseT, VGA, composite and DVI-U video signals, analog audio, and H.264 streaming video. Its HQUltraFast technology switches in typically a quarter of a second. Thanks to Kramer's HQUltra scaling technology, the switcher can achieve low-latency. -
- H.264 1080p streaming video input
- HDCP compliant
- Supports up to 4K UHD @ 60 Hz (4:2:0)
- Front panel jog-wheel and LCD display for fast easy set up in the field
- RGB controls, saturation, and hue
- Pan-tilt-zoom control
- Built-in test patterns
- Supports customized video logo
- Flexible aspect ratio conversion
- Audio de-embed from H.264 streaming, HDMI, DisplayPort, and HDBaseT inputs to analog and S/PDIF; re-embed to HDMI and HDBaseT outputs
- Up to 8 unbalanced stereo inputs, two microphone inputs with phantom power and an audio mixer
- Stereo audio power amplifier supporting 15+15W RMS speaker outputs
- Separate stereo balanced line-level audio outputs for external amplifier systems
- Can be controlled over RS-232, Ethernet with built-in Web pages, or via API
- Applications
-
- Lecture halls
- Classrooms
- Corporate meeting spaces
- Houses of worship
- Hotel conference venues
- Medical and healthcare
- Networked video
In the Box Kramer 4K HQUltra HDBaseT and Legacy Presentation Switcher/Scaler Standard 19" (1U) Rack Ears Power Cord Limited 7-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer 4K HQUltra HDBaseT and Legacy Presentation Switcher Scaler in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKramer VP-796ASV Specs | Video Inputs | 1 x RJ45 / HDBT
1 x DisplayPort
2 x HDMI (4K UHD)
1 x HDMI (HD)
1 x DVI-U (DVI/HDMI & VGA/RGBS/YPbPr)
1 x VGA
1 x RCA / CV
H.264 1080p streaming video on the network connector | | Audio Inputs | 2 x 1/4" (6.3 mm) Mic
1 x RCA / CV stereo (R, L)
7 x 1/8" (3.5 mm) unbalanced stereo | | Outputs | 1 x RJ45 / HDBT
1 x HDMI
1 x DVI/HDMI on a DVI-I connector | | Audio Outputs | 1 x speaker out on a 4-pin terminal block
1 x line out on a 5-pin terminal block
1 x S/PDIF on an RCA connector | | Ports | 1 x RS-232 on a 9-pin D-sub connector
1 x LAN on an RJ45 connector
2 x USB-A connectors | | Component Video Input | 484i (480i) and 576i (SD), 480p, 576p (ED), 720p, 1080i @ 50, 59.94 and 60 Hz and 1080p @ 23.98, 24, 25, 29.97 and 30 Hz | | Signal Formats | SD: 625i (576i) and 525i (480i) in double-rate formats
ED: 480p, 576p; HD: 1280 x 720p, 1920 x 1080i, 1920 x 1080psf; 1920 x 1080p 23.97, 24, 25, 29.94, 30, 50, 59.94 & 60 Hz
2048 x 1080p 23.97, 24, 25, 29.94, 30, 50, 59.94 & 60 Hz
The 4K capable HDMI 1 and HDMI 2 inputs also support: 3840 x 2160p & 4096 x 2160p 23.97, 24, 25, 29.94, 30, 50, 59.94 & 60 Hz (50, 59.94 & 60 Hz supported in YUV 4:2:0 colour space format) | | Output Resolutions | 640 x 480, 800 x 600, 1024 x 768, 1280 x 768, 1280 x 800, 1280 x 1024, 1400 x 1050, 1600 x 1200, 1920 x 1200, 480i, 576i, 480p, 576p, 1080i, 720p (default after reset), 1080p, 2024 x 1080, 2560 x 1080, 2560 x 1440, 2560 x 1600, 3860 x 2160, 4096 x 2160 | | Frame Rate | 60, 59.94, 50, 48, 25, 24, 23.97 Hz, auto | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | -40 to 158°F (-40 to 70°C) | | Humidity | 10 to 90%, RHL non-condensing | | Power Consumption | 100 to 264 VAC, 50/60 Hz, 65 W | | Standards Compliance | CE: 2004/108/EC electromagnetic compatibility directive, and 2006/95/EC low voltage directive
Compliance is to EN55022 class A | | Dimensions | 19 x 7.20 x 1" (43.6 x 18.30 4.36 cm) | | Weight | 6.0 lb (2.7 kg) |
