User Manual for Kramer 4K UHD HDMI, Ethernet, Bidirectional RS232, and IR over Extended Range Twisted Pair HDBaseT Transmitter with POE Click to enlarge the picture
Contents of the user manual for the Kramer 4K UHD HDMI, Ethernet, Bidirectional
- Product category: Video Extenders & Repeaters Kramer
- Brand: Kramer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kramer Video Extenders & Repeaters
 |
User manual for the Kramer 4K UHD HDMI, Ethernet, Bidirectional contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kramer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kramer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kramer product will considerably shorten its lifespan!
|

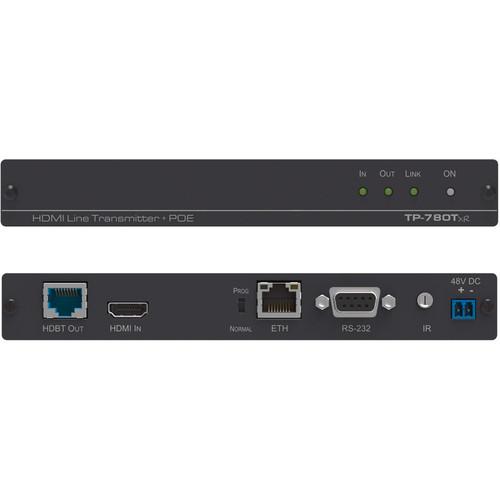

Product description Provided by third party: TP780TXR is a high-performance, HDBaseT twisted pair transmitter for 4K, 2K x 4K HDMI, Ethernet, bidirectional RS-232, IR signals and PoE. The TP780TXR inputs HDMI, Ethernet, RS-232, and IR signals and converts them into an HDBaseT twisted pair signal, that it transmits to a TP780RXR receiver. The TP780TXR provides power remotely over Ethernet to the TP780RXR in places, where an external power supply is difficult to reach. The result is that a single HDBaseT LAN cable can provide both data and power to compatible devices.
- Key Features
-
- HDMI signal transmission
- Multichannel audio transmission
- EDID and CEC pass through
- Ethernet transmission
- Bidirectional RS-232 transmission
- Bidirectional infrared transmission
- Firmware upgrade
- LED indicators
- HDMI signal transmission
- HDMI 2.0 and HDCP 2.2 compliant signal, supporting deep color, x.v.Color, lip sync, HDMI uncompressed audio channels, Dolby TrueHD, DTSHD, CEC, Full HD, 2K, 4K, and 3D.
- Multichannel audio transmission
- Up to 32 channels of digital stereo uncompressed signals for supporting surround sound at studio level.
- EDID and CEC pass through
- Passes EDID and CEC signals from the source to the display.
- Ethernet transmission
- Ethernet interface data flows in both directions to allow extension of up to 100 Mbps Ethernet connectivity for LAN communication and device control.
- Bidirectional RS-232 transmission
- Serial interface data flows in both directions to allow data transmission and device control.
- Bidirectional infrared transmission
- IR interface data flows in both directions to allow remote control of peripheral devices, located at either end of the extended line.
- Firmware upgrade
- Local upgrade via RS-232 control connection and the KUpload tool to ensure field-proven deployment.
- LED indicators
- Status indicators for HDMI input and the HDBT output link facilitate maintenance and troubleshooting.
Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer 4K UHD HDMI, Ethernet, Bidirectional RS232, and IR over Extended Range Twisted Pair HDBaseT Transmitter with POE in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKramer TP-780TXR Specs | | | Device Type | Video/audio/infrared/serial extender | | Form Factor | External | | | | Connectivity Technology | Wired | | Data Link Protocol | HDBaseT | | Data Transfer Rate | 10.2 Gbps | | Max Resolution | 3840 x 2160 @ 60 Hz | | Max Transfer Distance | 590 ft | | Status Indicators | Power, input, output | | Features | Power over Ethernet (PoE), HDTV Compatible, HDCP compliant, HDBaseT technology, 3D Pass-Through, EDID Pass-Through, Dolby TrueHD support, DTS-HD Master Audio support | | Compliant Standards | HDCP 2.2 | | | | Interfaces | 1 x HDMI - Type A female
1 x RS-232 - DB-9 female
1 x IrDA - mini jack female
1 x HDBaseT - RJ-45 female
1 x network - RJ-45 | | | | Power Device | External power adapter | | | | Width | 7.4 in | | Depth | 4.5 in | | Height | 1 in | | Weight | 14.11 oz | | | | Min Operating Temperature | 32
