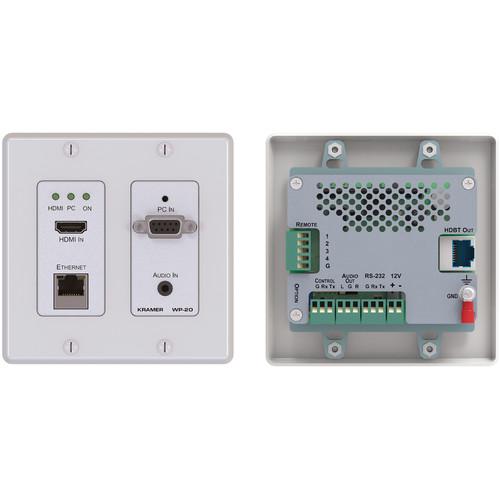

Product description Provided by third party: WP-20 is a 4K UHD, HDBaseT active wall plate with step-in auto switcher for HDMI, VGA and analog audio signals that supports resolutions up to 4K@60Hz (4:2:0). The device has EDID management, easy control options and audio embedding. The unit is a fully-featured step-in auto-switcher with the convenience and simplicity of a wall plate. Designed for deployment in any size room, the WP-20 is easy to install with browser-based configuration and single PoE cable for Ethernet connectivity and powering.
- Key Features
-
- Max. Data Rate - 10.2Gbps (3.4Gbps per graphic channel)
- Max. Resolution - 4K@60Hz (4:2:0) and WUXGA
- HDTV Compatible
- HDCP Compliant - works with sources that support HDCP repeater mode
- HDMI Support - Deep Color, x.v.Color and 3D
- Automatic Live Input Detection - based on video clock presence
- Automatic Input Selection - based on manual selection or last connected input
- Automatic Analog Audio Detection & Embedding
- I - EDIDPro Kramer Intelligent EDID Processing - intelligent EDID handling & processing algorithm ensures Plug and Play operation for HDMI systems
- Kramer Equalization & re - Klocking Technology - rebuilds the digital signal to travel longer distances
- Range - Up to 130m (430ft) at normal mode (2K), up to 100m at normal mode (4K); up to 180m (590ft) ultra-mode (1080p @60Hz @24bpp) when using BC - UNIKAT cables
- Lockable EDID
- Flexible Control Options - via Kramer Protocol 3000, Ethernet and embedded Web pages over RS - 232
- Digital Audio Format Support
- Mounting Option - for wall mounting, use Kramer's OWB - 2G
Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer 4K UHD HDMI XGA Ethernet RS232 over HDBaseT Active Wall Plate Transmitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKramer WP-20(W) Specs | | | Type | HDBaseT transmitter | | Width | 3 in | | Depth | 0.4 in | | Height | 1.6 in | | | | Features | HDCP compliant, EDID support, Kramer Equalization & re-Klocking technology | | | | Terminals | (1) x HDMI input - 19 pin HDMI Type A
(1) x VGA input - 15 pin HD D-Sub (HD-15)
(1) x audio line-in - mini-phone stereo 3.5 mm
(1) x HDBaseT output - RJ-45
(1) x audio line-out - terminal block
(1) x serial - terminal block | | | | Min Operating Temperature | 32
