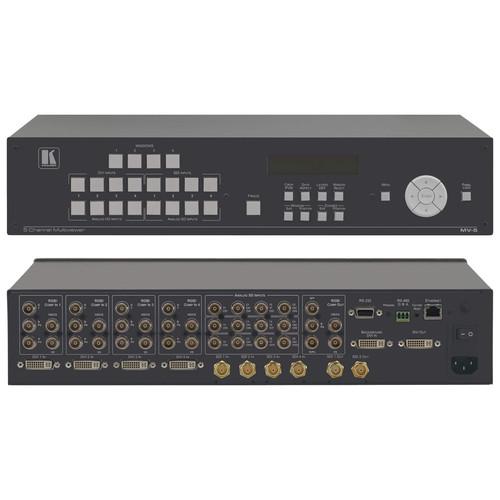

User Manual for Kramer 5-Channel Multiviewer Click to enlarge the picture
Contents of the user manual for the Kramer 5-Channel Multiviewer
- Product category: Multiviewer Processors Kramer
- Brand: Kramer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kramer Multiviewer Processors
|
User manual for the Kramer 5-Channel Multiviewer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kramer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kramer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kramer product will considerably shorten its lifespan!
|
Product description Provided by third party: The MV-5 is a versatile, high-performance video and graphic multi-window viewer for DVI signals, SD and HD analog signals up to 1920 x 1200@60 Hz, and SDI signals up to 3G HD-SDI. The device can window up to four sources (plus a background) in any layout and output the image as SDI, DVI, component and composite video signals. Both preprogrammed and customizable screen division is supported.
- Key Features
-
- Max. input data rate - 3 Gbps
- HDTV compatible
- HDCP support on DVI inputs/outputs
- Powerful cross conversion - any format to any format, any standard to any standard
- Window and image scaling - zooming (up to 1000%) and aspect ratio control
- Independent layer transparency control
- Image controls - brightness, contrast, color and sharpness
- Window or input label insertion
- 16 user - definable screen layouts
- Screen handling buttons - freeze, size, position
- Lock button - to prevent unwanted tampering
- Worldwide power supply
Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer 5-Channel Multiviewer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKramer MV-5 Specs | | | Type | Multiviewer system | | Width | 19 in | | Depth | 9.4 in | | Height | 3.5 in | | Weight | 6.17 lbs | | | | Nominal Voltage | AC 120/230 V | | Frequency | 50/60 Hz | | | | Kit Content | (2) x rack mount brackets | | | | Terminals | (4) x 3G HD-SDI input - BNC
(2) x 3G HD-SDI output - BNC
(1) x DVI-I output - 24+1 pin digital DVI
(1) x component video / RGB output - BNC x 5
(1) x serial - 9 pin D-Sub (DB-9)
(1) x network - RJ-45
(4) x component video / RGB input - BNC x 5
(3) x component video / composite video / S-video input - BNC x 4
(5) x DVI-I input - 24+1 pin digital DVI | | | | Min Operating Temperature | 32
