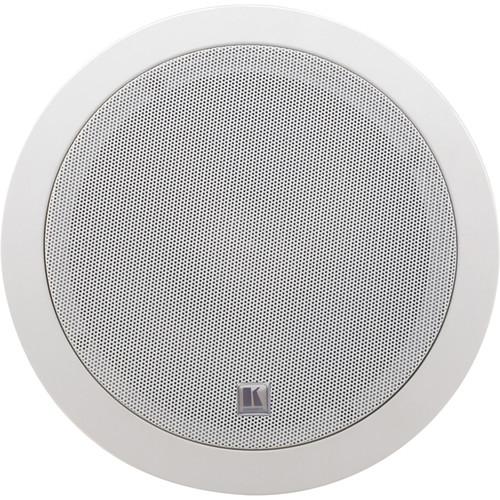

User Manual for Kramer 6-CO 6.5", 2-Way Open-Back Ceiling Speakers Click to enlarge the picture
Contents of the user manual for the Kramer 6-CO 6.5", 2-Way Open-Back Ceiling
- Product category: Installed Speakers Kramer
- Brand: Kramer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kramer Installed Speakers
|
User manual for the Kramer 6-CO 6.5", 2-Way Open-Back Ceiling contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kramer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kramer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kramer product will considerably shorten its lifespan!
|
Product description The pair of white 6−CO 6.5", 2−Way Open−Back Ceiling Speakers from Kramer is a set of 6.5" two−way coaxially-mounted, round open−back 8Ω speakers, designed for mounting in the ceiling, and is suitable for array installation. Frequency response is 60 Hz to 20 kHz and they handle 30W RMS, 80W maximum, each. The woofer is composed of a polypropylene cone with rubber surround material, the tweeter is Mylar-based, and the speakers are supplied with white baffle aluminum grills.
The speakers feature multi−tap power transformers for selecting direct 8Ω (bypassing the transformer) or 70V/100V power settings suitable for array installation. - Suitable for array installations in conference rooms, presentation venues,educational classrooms and training rooms, clubs, and hotel lobbies
In the Box Kramer 6-CO 6.5", 2-Way Open-Back Ceiling Speakers (Pair, White) Ceiling Mounting Kit Cutout Template Limited 1-Year Warranty Guides & Manuals uyuvwvxdrxvcrdfsvfbxeccvbwqxudt Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer 6-CO 6.5", 2-Way Open-Back Ceiling Speakers in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Kramer 6-CO 6.5", 2-Way Open-Back Ceiling Speakers can be downloaded in PDF format at the link stated below.
Technical parametersKramer GALIL 6-CO(W) Specs | Speaker Type | 2−way open−back ceiling speakers | | Woofer | 6.5" (16.5 cm) polypropylene with rubber surround | | Tweeter | 0.5" Mylar dome (1.3 cm) | | Frequency Response | 60 Hz to 20 kHz | | Impedance | 8 ohms (transformer tap in off position) | | Sensitivity | 87 dB SPL, 1 W @ 1m | | Transformer Taps | 70 V: 3.7 W /7.5 W /15 W /30 W; 100 V - 7.5 W /15 W /30 W | | Power Handling | 30 W RMS, 80 W continuous program | | Recommended Amplifier Power | 30 W | | Crossover Frequency | 3 kHz | | Coverage Angle | 104° | | Directivity Factor | 8.5 averaged 1 kHz to 10 kHz | | Directivity Index | 9.2 dB averaged 1 kHz to 10 kHz | | Input Connector | Spring-type push terminal block | | Dimensions (Diam. x Depth) | 9.06" (23 cm) external, 2.95" (7.5 cm) mounting depth | | Cutout Diameter | 7.68" (19.5 cm) | | Speaker Weight | 3.41 lb (1.55 kg) (approximate, single speaker) |
