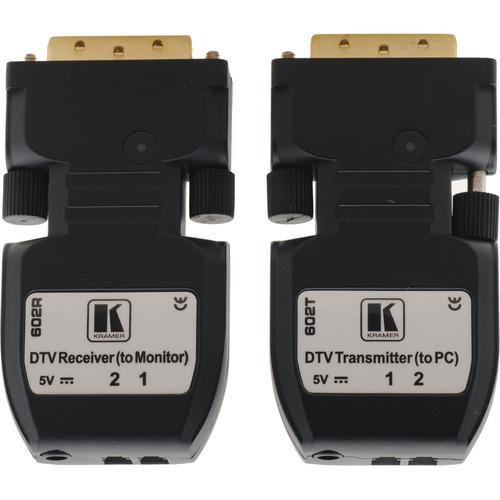

User Manual for Kramer 602R T Detachable DVI Optical Transmitter & Receiver Pair Click to enlarge the picture
Contents of the user manual for the Kramer 602R T Detachable DVI Optical
- Product category: KVM Extenders Kramer
- Brand: Kramer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kramer KVM Extenders
|
User manual for the Kramer 602R T Detachable DVI Optical contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kramer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kramer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kramer product will considerably shorten its lifespan!
|
Product description The Kramer 602R/T Detachable DVI Optical Transmitter & Receiver Pair consists of a 602T transmitter and a 602R receiver for sending DVI signals with resolutions of up to 1920 x 1200 at 60 Hz over the LC optical cable. The 602T converts electrical signals to optical signals and the 602R decodes the optical signals back to electrical signals. The 602T attaches to the transmitter side of a fiber optical cable and 602R connects to the receiver end. - Offers a maximum data rate of 4.95 Gb/s (1.65 Gb/s per graphic channel)
- Maximum resolution of up to WUXGA (1920 x 1200) @ 60 Hz, 1080p
- Range of up to 1,650' (over multimode fiber) and 5,000' (over single-mode fiber)
- Accepts 2LC single or multimode fiber optic cable
- EDID Capture: Copies and stores the EDID from a display device
- Each unit can be powered via an external 5VDC power adapter (included) or from the 5V pin on the DVI card in the computer
- Kramer's Nano TOOLs size enclosures
- Supports DVI1.0 and DDC2B, fully implemented by fiber-optic communication
- Small and lightweight design
- Applications
Digital flat panel and plasma displays used in medical, commercial and travel applications
Conference rooms and auditoriums
Kiosks with digital flat panel displays for presenting information
LED signboards in streets and stadiums In the Box Kramer 602R/T Detachable DVI Optical Transmitter & Receiver Pair 2 x 5VDC Power Supply Limited 7-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer 602R T Detachable DVI Optical Transmitter & Receiver Pair in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKramer 602R/T Specs | Input | 602T: DVI-D on a DVI-I connector
602R: 2 x LC optical connectors | | Output | 602T: 2 LC optical connectors
602R: DVI-D on a DVI-I connector | | Resolution | Up to WUXGA (1920 x 1200) @ 60 Hz (1.65 Gb/s) | | Data Rate | 4.95 Gb/s (1.65 Gb/s per graphic channel) maximum | | Power Source | 5 VDC, current limited source | | Range | Over Multimode Fiber Optics: 1,650' (500 m)
Over Single-Mode Fiber Optics: 5,000' (1,524 m) | | Humidity | 10 to 90% RHL, non-condensing | | Operating Temperature | 32 to 131°F (0 to 55°C) | | Storage Temperature | -49 to 162°F (-45 to 72°C) | | Compliance | Class A digital device pursuant to part 15 and 2 of FCC and CE | | Dimensions (W x D x H) | 1.54 x 2.72 x 0.59" (3.90 x 6.90 x 1.50 cm) | | Weight | 0.31 lb (0.14 kg) | | | | Package Weight | 1.1 lb | | Box Dimensions (LxWxH) | 9.0 x 5.2 x 2.4" |
