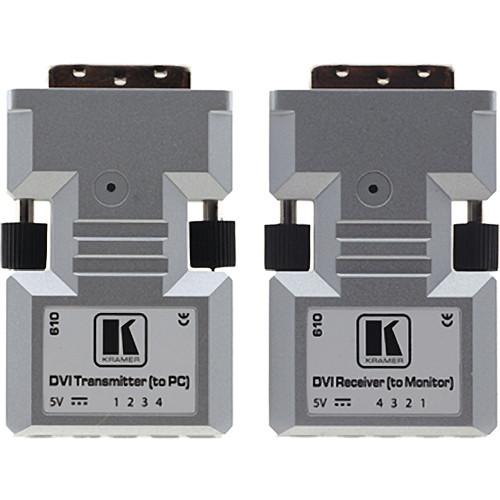

User Manual for Kramer 610R T Detachable DVI Optical Transmitter & Receiver Pair Click to enlarge the picture
Contents of the user manual for the Kramer 610R T Detachable DVI Optical
- Product category: KVM Extenders Kramer
- Brand: Kramer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kramer KVM Extenders
|
User manual for the Kramer 610R T Detachable DVI Optical contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kramer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kramer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kramer product will considerably shorten its lifespan!
|
Product description The Kramer 610R/T Detachable DVI Optical Transmitter & Receiver Pair consists of a 610T transmitter and a 610R receiver for sending DVI signals with resolutions of up to 1920 x 1200 at 60 Hz over the LC optical cable. The 610T converts electrical signals to optical signals and the 610R decodes the optical signals back to electrical signals. The 610T attaches to the transmitter side of a fiber optical cable and 610R connects to the receiver end. - Offers a maximum data rate of 4.95 Gb/s (1.65 Gb/s per graphic channel)
- Maximum resolution of up to WUXGA (1920 x 1200) @ 60 Hz, 1080p
- Accepts multimode fiber optic cable with 4 simplex or 2 duplex LC fiber connectors
- EDID Capture: Copies and stores the EDID from a display device
- Each unit can be powered via an external 5VDC power adapter (included) or from the 5V pin on the DVI card in the computer
- Kramer's Nano TOOLs size enclosures
- Small and lightweight design
- Applications
Digital flat panel displays, plasma display panels and projectors for medical appliances, aero and traffic control, factory facilities, banks, conference rooms, and auditoriums
Kiosks with digital flat panel displays for information display
LED signboards in streets and in stadiums
Digital Signage In the Box Kramer 610R/T Detachable DVI Optical Transmitter & Receiver Pair 2 x 5VDC Power Supply Limited 7-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer 610R T Detachable DVI Optical Transmitter & Receiver Pair in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKramer 610R/T Specs | Input | 610T: DVI-D on a DVI-I connector
610R: 4 LC optical connectors for R, G, B & clock | | Output | 610T: 4 LC optical connectors for R, G, B, & clock
610R: DVI-D on a DVI-I connector | | Resolution | Up to WUXGA (1920 x 1200) @ 60 Hz (1.65 Gb/s) | | Data Rate | 4.95 Gb/s (1.65 Gb/s per graphic channel) maximum | | Power Source | 5 VDC, current limited source | | Range | 1,640' (500 m) | | Humidity | 10 to 90% RHL, non-condensing | | Operating Temperature | 32 to 131°F (0 to 55°C) | | Storage Temperature | -49 to 162°F (-45 to 72°C) | | Compliance | Class A digital device pursuant to part 15 and 2 of FCC and CE | | Dimensions (W x D x H) | 1.5 x 2.83 x 0.75" (3.8 x 7.2 x 1.9 cm) | | Weight | 0.31 lb (0.14 kg) | | | | Package Weight | 0.75 lb | | Box Dimensions (LxWxH) | 9.1 x 5.1 x 2.2" |
