User Manual for Kramer 613R T 3G HD-SDI Mini Optical Receiver & Transmitter Click to enlarge the picture
Contents of the user manual for the Kramer 613R T 3G HD-SDI Mini
- Product category: Video Extenders & Repeaters Kramer
- Brand: Kramer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kramer Video Extenders & Repeaters
|
User manual for the Kramer 613R T 3G HD-SDI Mini contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kramer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kramer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kramer product will considerably shorten its lifespan!
|

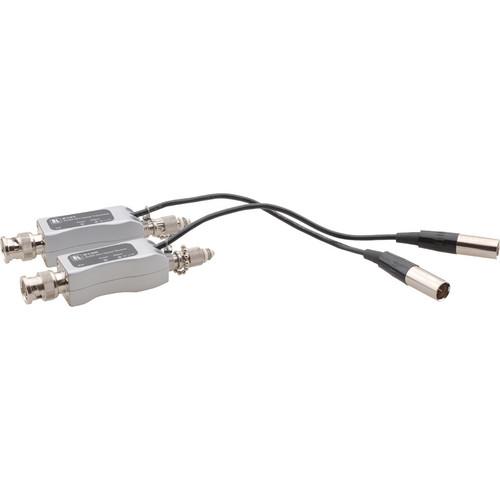

Product description The Kramer 613R/T 3G HD-SDI Mini Optical Receiver & Transmitter consists of a 613T transmitter and a 613R receiver pair for digital video signals up to 3G HD-SDI. The 613T transmitter converts the digital signal into an optical signal that it transmits over the single-mode fiber optic cable, while the 613R receiver decodes the optical signals back to the original digital format video signal. - Maximum Data Rate: Up to 3 Gbps
- Multi-Standard Operation: SDI (SMPTE 259M and SMPTE 344M), HD-SDI (SMPTE 292M), 3G HD-SDI (SMPTE 424M), and DVB-ASI
- Kramer Equalization & re-Klocking Technology: Rebuilds the digital signal to travel to longer distances
- System Range: Up to 18.6 miles (30 km) at 3G-HD-SDI (1080p)
- Fiber Cable: Single-mode fiber optic with ST connectors
- Compact Size: Part of the Kramer TOOLS family of compact, high-quality, and cost-effective solutions
- Application
Digital flat-panel and plasma displays, for medical, commercial, and travel applications
Conference rooms and auditoriums
Kiosks with digital flat-panel displays for presenting information
LED signboards in streets and stadiums In the Box Kramer 613R/T 3G HD-SDI Mini Optical Receiver & Transmitter 2 x Power Supply 7-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer 613R T 3G HD-SDI Mini Optical Receiver & Transmitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKramer 613R/T Specs | Input | 613T: 1SD / HD / 3G HD-SDI on a 75 Ω BNC connector
613R: 1 ST optical connector | | Output | 613T: 1 ST optical connector
613R: 1 SD/HD/3G HD-SDI on a 75 Ω BNC connector | | Maximum Data Rate | Up to 3 Gbps | | Maximum Range | 18.6 miles (30 km) @ 1080p, 3G-SDI format | | Format | SMPTE 424M (3G HD-SDI)
SMPTE 292M (HD-SDI)
SMPTE 259M (SDI, DVB-ASI) | | Resolution | Up to WUXGA @ 60 Hz (1.65 Gbps) | | Power Consumption | 5 VDC, 1.5 A | | Operating Temperature | 4° to 158°F (-20 to 70°C) | | Humidity | 5 to 95% RH | | Dimensions (W x D x H) | 0.75 x 3.27 x 0.75" (1.9 x 8.3 x 1.9 cm) | | Weight | 0.2 lb (0.1 kg) |
