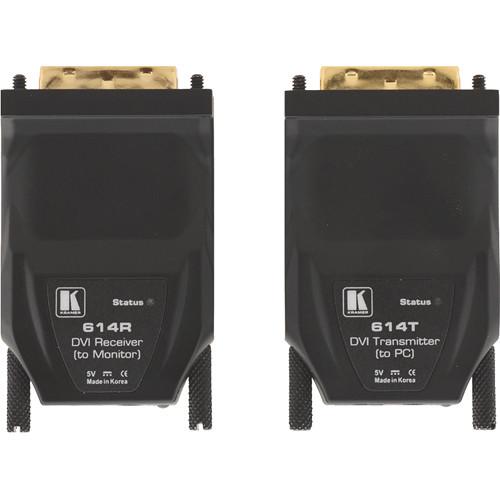

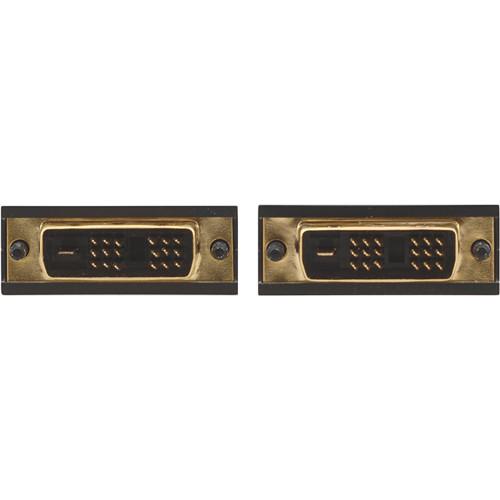

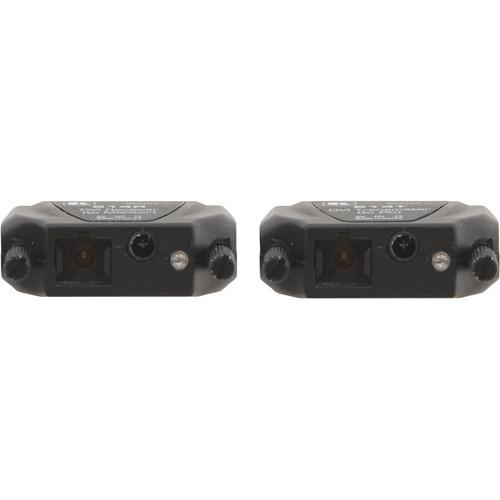

Product description The Kramer 614R/T 1-Fiber Detachable DVI Optical Transmitter & Receiver are a small and lightweight, detachable optical transmitter and receiver pair. They transmit uncompressed DVI resolutions of up to 1920 x 1200 at 60 Hz using a multimode fiber optic cable with SC connectors. The 614T converts a DVI signal to an optical signal and transmits it to the 614R. The 614R decodes the optical signals back to a DVI signal.This transmitter & receiver pair is found in digital flat panel and plasma displays that are used in medical, commercial, and travel applications, conference rooms and auditoriums, kiosks with digital flat panel displays for presenting information, and LED signboards in streets and stadiums. - 6.75 Gb/s (2.25 Gb/s per graphic channel) maximum data rate
- Maximum resolution up to WUXGA, 2K, or 1080p (XGA not supported)
- HDTV compatible, non-HDCP compliant
- Up to 500m (1,640') (multimode) system range
- Standards Compliance: Supports DVI1.0, fully implemented by fiber optic communication and DDC2B by virtual DDC; Class A digital device, pursuant to part 15 and 2 of FCC and CE
- EDID Capture: Copies and stores the EDID from a display device (614T)
- EMI / RFI free for connected cables
- 1 SC multimode fiber optic cable
- External power adapters (included) or 5VDC from source (auto detect)
In the Box Kramer 614R/T 1-Fiber Detachable DVI Optical Transmitter & Receiver 2 x 5VDC / 1A Power Supply Limited 7-Year Warranty on Parts & Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer 614R T 1-Fiber Detachable DVI Optical Transmitter & Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKramer 614R/T Specs | Inputs | 1 x DVI (614T), 1 x multimode fiber optic with SC connector (614R) | | Outputs | 1 x multimode fiber optic with SC connector (614T), 1 DVI (614R) | | Maximum Data Rate | 6.75 Gb/s (2.25 Gb/s per graphic channel), up to WUXGA, 2K or 1080p @ 36-bit color depth (does not support XGA) | | Maximum Range | 1,640' (500 m) over 50 / 125 μm multi-mode fiber at WUXGA (1920 x 1200), 60 Hz refresh rate | | Power Source | 5 VDC, 200 mA maximum (614T); 280 mA maximum (614R) | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | -40 to 158°F (-40 to 70°C) | | Humidity | 10 to 85%, RHL non-condensing | | Dimensions (W x D x H) | 1.50 x 2.20 x 0.57" (3.81 x 5.59 x 1.45 cm) | | Weight | 0.31 lb (0.14 kg) approximately |
