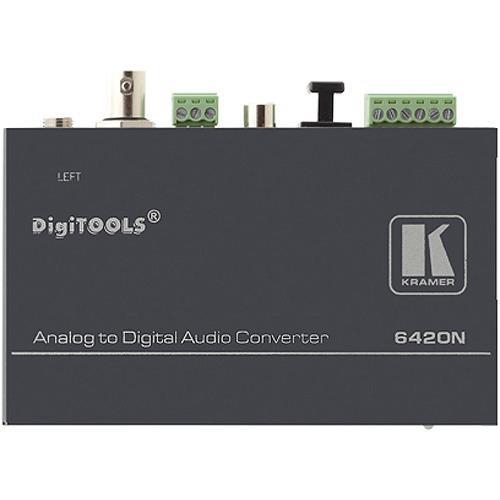

Product description The 6420N Balanced Stereo-Audio to Digital-Audio Format Converter from Kramer converts (2) channels of balanced audio signals to AES/EBU, AES-3id, S/PDIF and Toslink optical digital outputs simultaneously. The unit's small size makes it equally well suited for use in studio or mobile work, as well as desktop or rackmount placement. - This unit will convert (2) channels of balanced audio signals to AES/EBU, AES-3id, S/PDIF, or TOSLINK optical
- Sampling is user-selectable: 32, 44.1, 48 & 96kHz
- Professional or consumer bit rate can be selected
- Left & right gain version control includes 0dB, -12dB, -16dB, -20dB or -24dB
- This unit belongs to the Compact DigiTOOL series and up to (3) of these devices can be rack mounted side by side in 1U of rack space using the separately available RK-3T Rack Adapter
In the Box Kramer 6420N Balanced Stereo-Audio to Digital-Audio Format Converter Power Cord Mounting Bracket Limited 7-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer 6420N Balanced Stereo-Audio to Digital-Audio Format Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

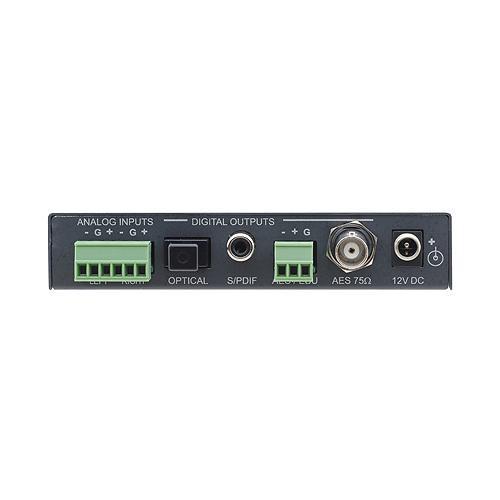

Technical parametersKramer 6420N Specs | Inputs | (1) analog input balanced line in (10k) on detachable terminal blocks | | Outputs | (4) digital audio outputs: AES-3id; AES/EBU; S/PDIF; Toslink optical | | Performance | Sample Rate Conversion: 32kHz, 44.1kHz, 48kHz, 96kHz
Maximum Input Level: 11.2Vpp @ 1kHz
Conversion Gain: -12dB, -16dB, -20dB, -24dB

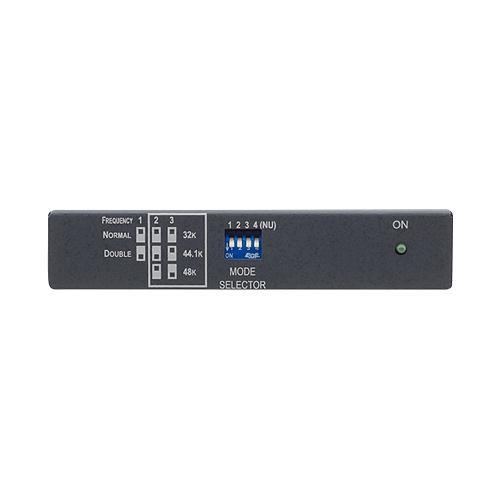

| | Controls | (4) sample rate selector switches
system bit selector switch
(8) gain switches
On LED | | Power | Coupling: AC
Power Source: 12VDC, 0.5A, 130mA | | Dimensions (HxWxD) | 0.96 x 4.72 x 2.74" (2.44 x 12 x 6.95cm) | | Weight | 0.66 lbs (0.3kg) | | | | Package Weight | 1.15 lb | | Box Dimensions (LxWxH) | 9.1 x 4.85 x 3.5" |
