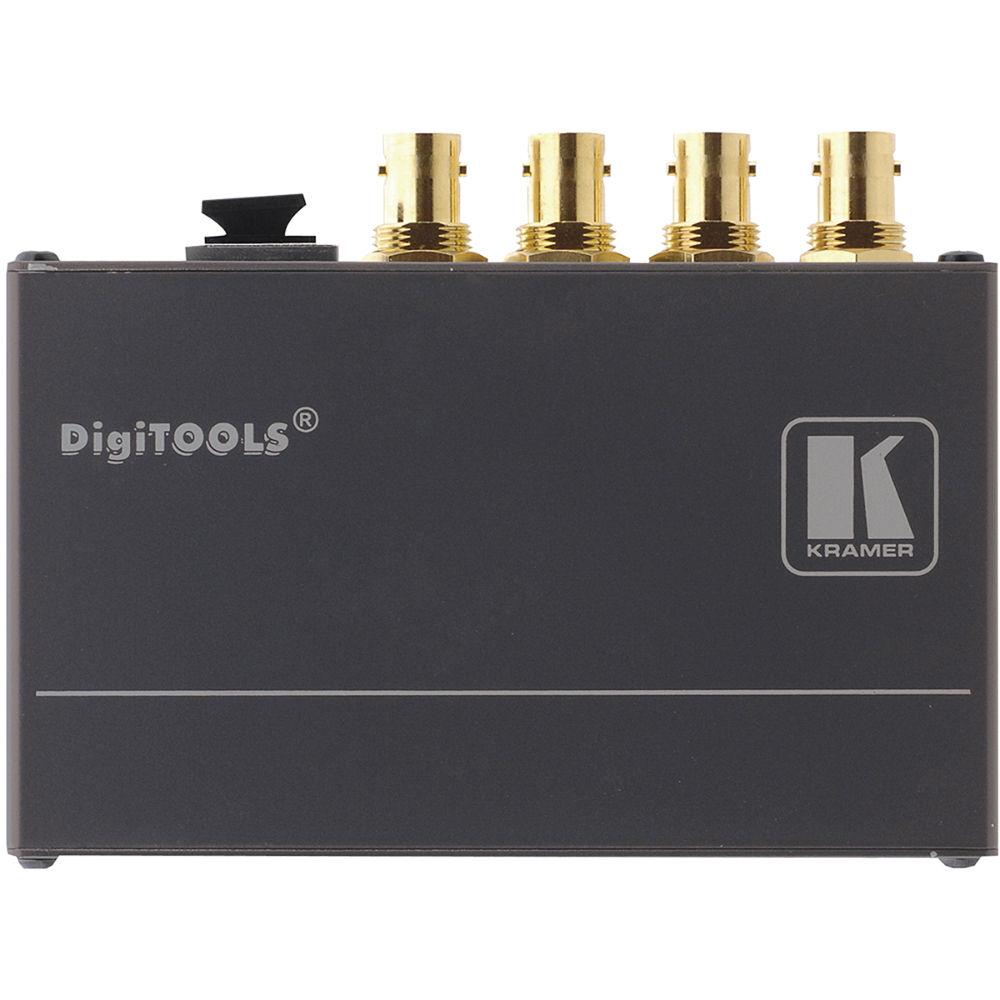

Product description The Kramer 673R/T 4-Channel 3G HD-SDI over Single Fiber Optic Transmitter & Receiver is ideal for converting 3G HD-SDI and dual link HD-SDI signals to optical signals and vice versa. The transmitter converts up to 4 channels of SDI signals to optical signals, while the receiver converts them back to SDI signals.
Featuring reclocking and equalization for each channel, the system offers error-free transfer of signals for up to a distance of 3200’ (1000 m) via a single multimode OM3 fiber optic cable with SC connectors. It also includes LED indicators to indicate detection of fiber optic, source, and input signals.
The 673R/T system is compatible with HDTV signals and offers different operation standards such as SDI (SMPTE 259M), HD−SDI (SMPTE 292M) and 3G HD−SDI (SMPTE 424M), and dual−link HD−SDI (SMPTE 372M). - 673 transmitter converts up to 4 channels of SDI signals to 1 OM3 signal
- 673 receiver re-converts OM3 signals back to 4 3G HD-SDI signals
- Featues reclocking and equalization for each channel
- Offers error-free transfer of signals up to a distance of 3200' (1000 m) via a single multimode OM3 fiber optic cable with SC connectors
- Offers a data transfer rate of up to 3 Gbps for each SDI input

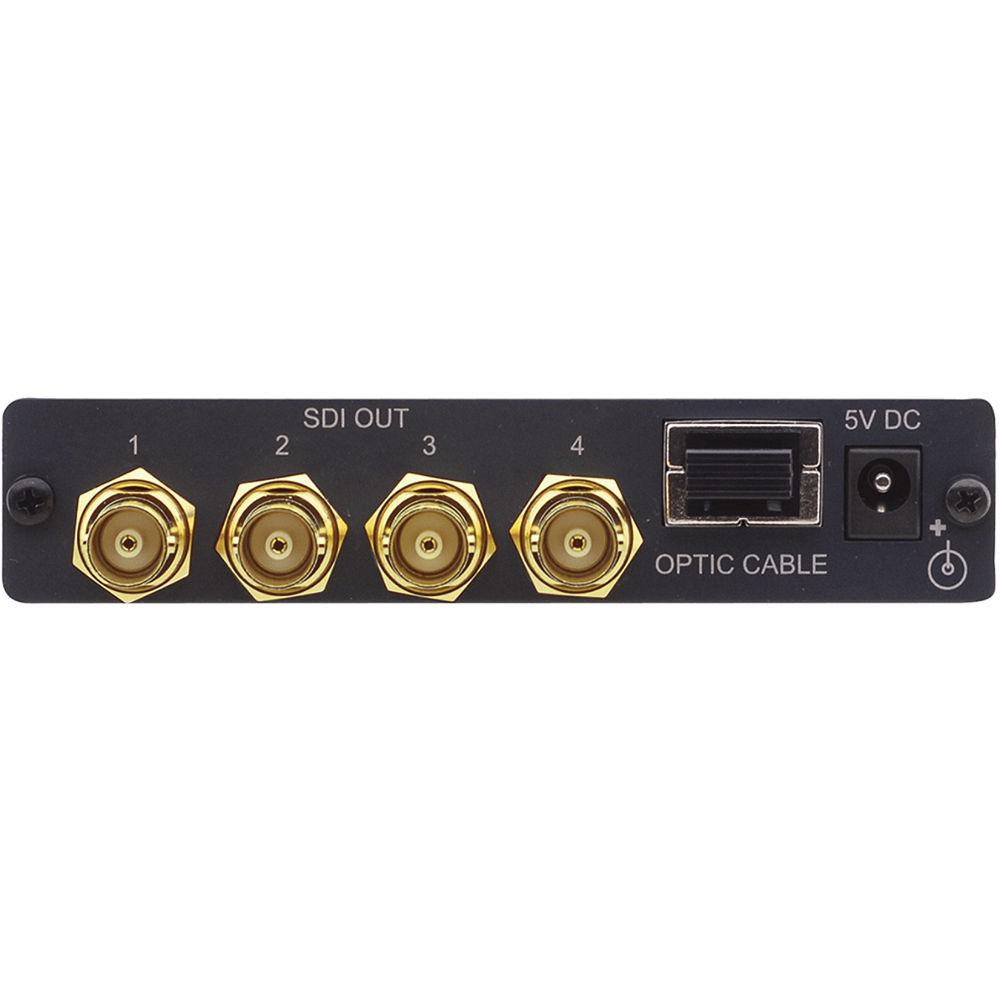

- HD-SDI Outputs - 4 channels on BNC connectors

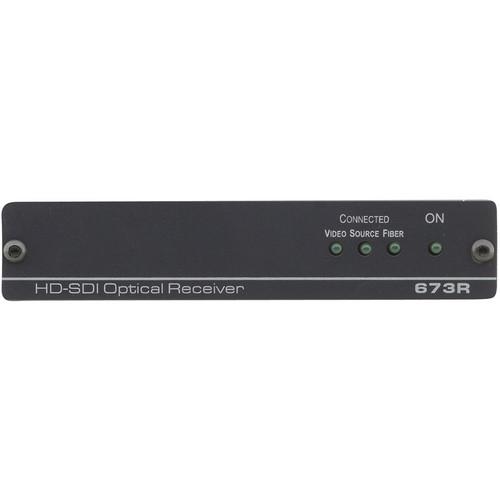

- LEDs for fiber optic, source, and input indication
- Compatible with HDTV signals
- Supports operation standards such as SMPTE 259M (SDI), 292M (HD-SDI), 424M (3G HD-SDI), and 372M (dual-link HD-SDI)
- Compact design and 3 receivers can be rack-mounted side-by-side in a 1U rack space with the optional RK-3T rack adapter
In the Box Kramer 673R/T 4-Channel 3G HD-SDI over Single Fiber Optic Transmitter & Receiver 2 x Power Adapters (5 V DC Input) User Manual 7-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer 673R T 4-Channel 3G HD-SDI over Single Fiber Optic Transmitter & Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKramer 673R/T Specs | Inputs | 3G HD−SDI / HD−SDI / Dual−link SDI serial video, 75 ohm on BNC connectors (673T)
1 optical connector (673R) | | Outputs | 1 optical connector (673T)
3G HD−SDI / HD−SDI / Dual−link SDI serial video, 75 ohm on BNC connectors (673R) | | Bandwidth | Up to 3 Gbps for each SDI input | | Range | >3200' (1000 m) for 3G HD-SDI | | Cable Equalization | HD−SDI - 459' (140 m)
3G HD−SDI - 393' (120 m) | | Fiber optic | SC connectors for multimode (OM3) fiber cable | | Indicators | Video, Source, Fiber & On LEDs | | Power Source | 5 V DC, 780 mA (673T), 5 V DC, 780 mA (673R) | | Dimensions | 4.7 x 3.1 x 1.1" (12 x 7.95 x 2.76 cm) | | Weight | 0.67 lb (0.3 kg) approximately each | | | | Box Dimensions (LxWxH) | 12.0 x 7.15 x 2.44" |
