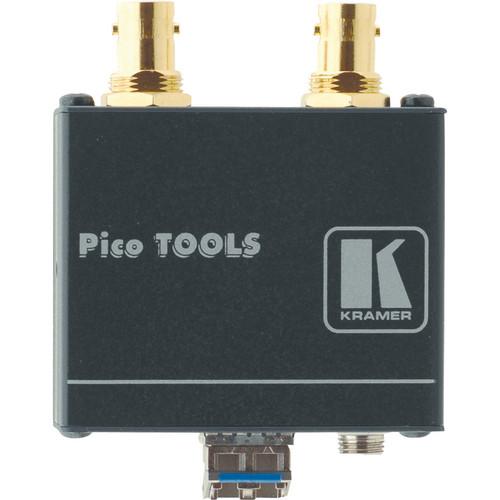

Product description The Kramer 690T 2-Channel 3G HD-SDI Fiber Optic Transmitter is a high-performance fiber optic transmitter for SDI video signals up to 3G HD-SDI. The 690T transmitter converts two 3G HD-SDI signals to single-mode fiber optic and the 690R receiver converts them back to the two original SDI formats. - Compatible with the fiber optic matrix VS-88FO
- Maximum data rate up to 3 Gbps

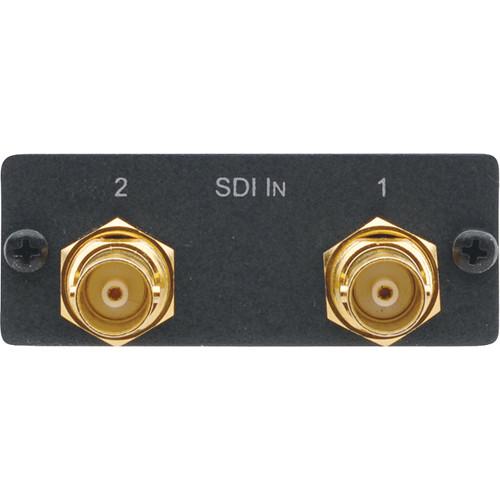

- Input: 2 SDI on BNC connectors

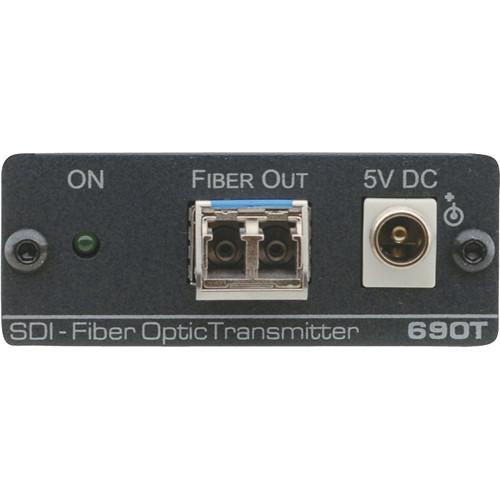

- Output: 2 single-mode fiber optic on LC connectors
- Multi-Standard Operation: SDI (SMPTE 259M and SMPTE 344M), HD-SDI (SMPTE 292M), and 3G HD-SDI (SMPTE 424M)
- Kramer Equalization & re Klocking Technology: Rebuilds the digital signal to travel longer distances on the coax cable; 656.17' / 200 m (HD-SDI) & 328.09' / 100 m (3G HD-SDI)
- System Range: Up to 6.2 miles (10 km)
- Compact Kramer TOOLS: 4 units can be rack mounted side-by-side in a 1U rack space using the optional RK-4PT rack adapter
- Applications:
Home theater, presentation, and multimedia applications
Long range multimedia distribution for cinemas, stores, and entertainment centers
Video production and broadcast facilities
Retail stores and other point-of-sale systems
Digital signage In the Box Kramer 690T 2-Channel 3G HD-SDI Fiber Optic Transmitter Power Supply 7-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer 690T 2-Channel 3G HD-SDI Fiber Optic Transmitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKramer 690T Specs | Input | 2 SD / HD / 3G HD-SDI on BNC connectors | | Output | 2 single-mode fiber (9/125) over LC connectors | | Bandwidth | Supports up to 3 Gbps bandwidth for each input | | Extension | Fiber Optic: Up to 6.2 miles (10 km) for 3G-SDI | | Cable Equalization | Input: 656.17' (200 m) for SDI, 328.09' (100 m) for 3G-SDI | | Power Consumption | 5 VDC, 480 mA | | Temperature | Operating: 0 to 55°C (32 to 131°F)
Storage: -45 to 72°C (-49° to 162°F) | | Humidity | 10 to 90% RH (non-condensing) | | Dimensions (W x D x H) | 2.4 x 2 x 0.9" (6.2 x 5.2 x 2.4 cm) | | Weight | 0.31 lb (0.14 kg) |
