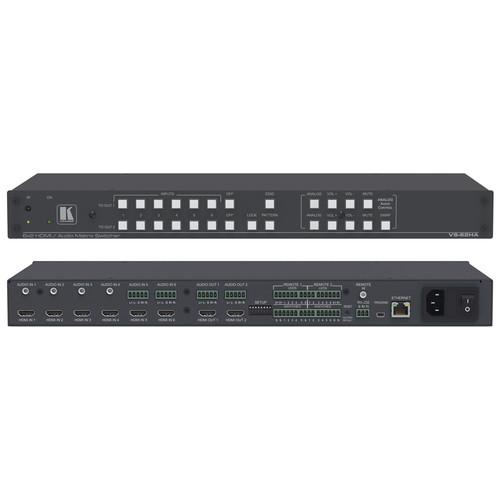

Product description The 6x2 4K UHD HDMI/Audio Automatic Matrix Switcher from Kramer is for use with the 4K UHD HDMI and analog audio signals that employ advanced auto switching schemes and control options. It reclocks and equalizes the signals and can route any input to either or both outputs simultaneously. The switcher supports resolutions up to 4K @ 60 Hz (4:2:0) UHD and WUXGA. - Maximum resolution up to 4K @ 60 Hz (4:2:0) UHD and WUXGA
- HDMI supports 3D, Deep Color, x.v.Color, Lip Sync, ARC, Dolby TrueHD, Dolby Digital Plus, DTSHD, and 7.1 multi-channel audio
- EDID Capture copies and stores the EDID from a display device
- Advanced auto AV switching option for either or both outputs, last connected, or priority switching, manual override mode to allow intuitive controller-free operation
- Independent (breakaway) audio routing of embedded HDMI and analog audio content to two balanced audio ports
- Programmable step-in over HDMI functionality when used in conjunction with compatible step-in devices, such as the SIDX3N and DIP30 (using an HDMI cable that supports HEC, the HDMI Ethernet Channel)
- True video clock detection
- Non-volatile EDID storage
- reKlocking & Equalization Technology rebuilds the digital signal to travel longer distances
- Lock button prevents unwanted tampering with the front panel
- Internal pattern generator
- Embedded web pages provide remote configuration and operation
- Static or dynamic DHCP IP addressing
- Control options front panel buttons, IR remote (included), optional external remote IR receiver, RS232, Ethernet, buttons and LED over contact closure, embedded Web server, Kramer Protocol 3000 support
- USB port for upgrading firmware
In the Box Kramer 6x2 4K UHD HDMI/Audio Automatic Matrix Switcher Power Cord Rackmount Ears Limited 7-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer 6x2 4K UHD HDMI Audio Automatic Matrix Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKramer VS-62HA Specs | Inputs | 6 x HDMI
4 x unbalanced stereo audio on 3.5 mm mini jacks
2 x balanced stereo audio on 5-pin terminal blocks | | Outputs | 2 x HDMI
2 x balanced stereo audio on 5-pin terminal blocks | | Ports | 1 x RS232 on a 3-pin terminal block
1 x Ethernet on an RJ45 connector
1 x USB Type-C
1 x remote IR on a 3.5 mm mini jack
2 x 6 remote LED outputs on terminal blocks
2 x 6 remote contact closure switches on terminal blocks | | Controls | Front-panel buttons, infrared remote control transmitter, RS232, Ethernet, remote input selection switches and LEDS, built-in web browser | | LED Indicators | IR active red, ON green | | Maximum Data Rate | Up to 8.91 Gb/s data rate (2.97 Gb/s per graphic channel) | | Compliance With HDMI Standard | HDMI and HDCP | | Resolution | Up to 4K @ 60 Hz UHD (4:2:0) | | Supported RS-232 Baud Rates | 9600, 115200 b/s | | Supported Web Browsers | Windows 7: Google Chrome v25, FireFox v15, Opera v12, Microsoft Internet Explorer v9
Windows XP: Google Chrome v25, FireFox v15
Apple Mac: Google Chrome v25, FireFox v20, Opera v12.14, Safari v6 | | Power Consumption | 100/240 VAC, 22 VA | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | 40 to 158°F (40 to 70°C) | | Humidity | 10 to 90%, RHL non-condensing | | Dimensions | 19 x 7.2" x 1U (48.3 x 18.3 cm) | | Weight | Approximately 3.6 lb (1.6 kg) | | | | Box Dimensions (LxWxH) | 55.0 x 27.6 x 10.7" |
