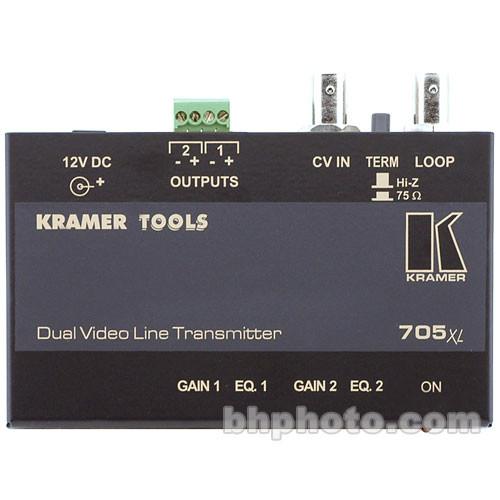

Product description The Comprehensive/Kramer 705XL is a twisted pair video line transmitter; it accepts a composite video signal on a BNC connector, and outputs the same signal on a Cat-5 cable. - Industrial Color Signal
- An industrial color signal can be transmitted up to 1000 meters over the twisted pair Cat-5 line.
- Broadcast Quality
- A broadcast-quality signal featuring 12 MHz bandwidth can be transmitted up to 300 meters.
- Cable Compensation
- This device provides cable compensation adjustments; gain and EQ can be adjusted to the user's parameters.
- Dual Outputs
- Dual outputs allow the signal to flow to two different reciever locations.
In the Box Kramer 705XL Video Line Transmitter - Composite (BNC) to Twisted Pair (Terminal Blocks) AC Adapter 3-year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer 705XL Video Line Transmitter - Composite to Twisted Pair in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKramer 705XL Specs | Input | Composite Video, Looping, 1 Vpp @ 75 ohms, on a BNC connector | | Output | Twisted Pair Signal x2, on detachable terminal blocks | | Video Bandwidth | 12 MHz | | Video Signal-to-Noise Ratio | 57 dB | | Differential Phase | 0.7° | | Differential Gain | 0.08% | | Video Controls | Gain and EQ on Rear Panel Trimmers | | Dimensions (WxDxH) | 4.7 x 2.95 x 0.98"
12 x 7.5 x 2.5cm | | Weight | 0.66 lbs
0.3 kg | | Power Source | 12 VDC on an AC Adapter | | | | Package Weight | 1.25 lb | | Box Dimensions (LxWxH) | 9.15 x 4.75 x 3.4" |
