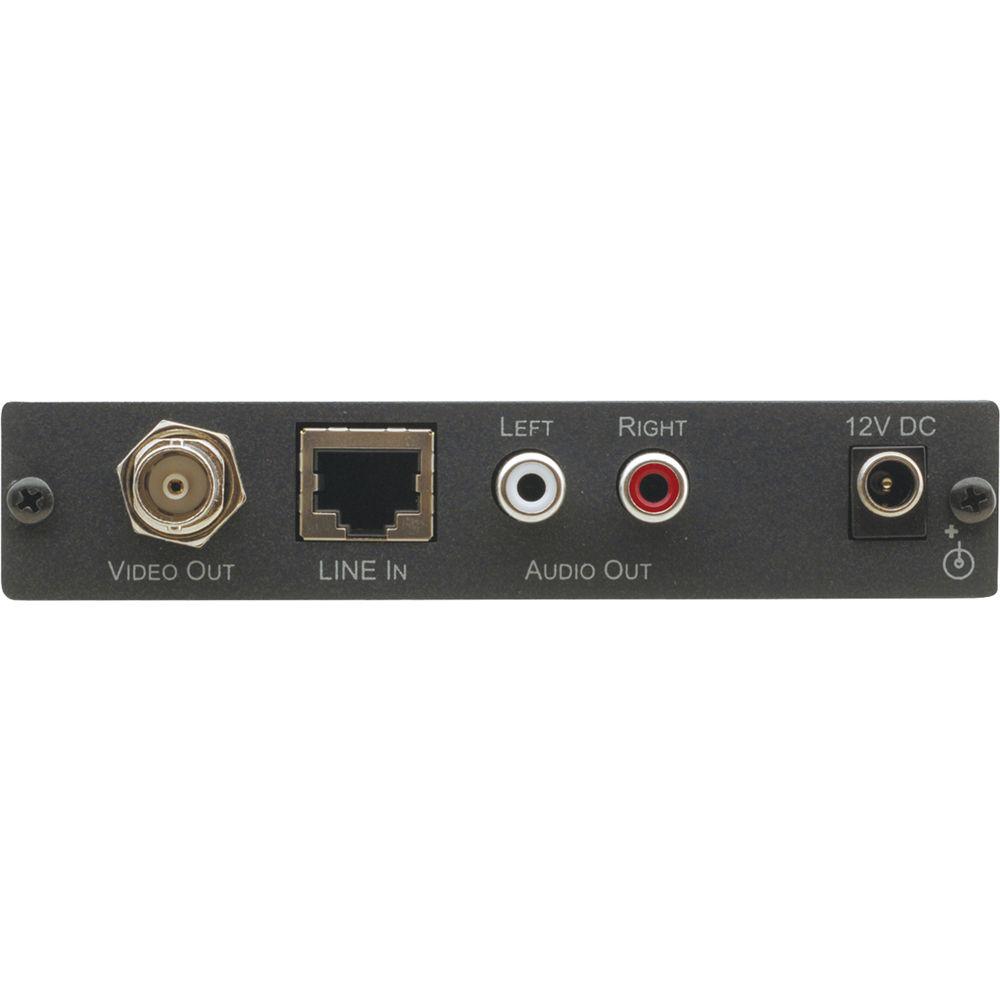

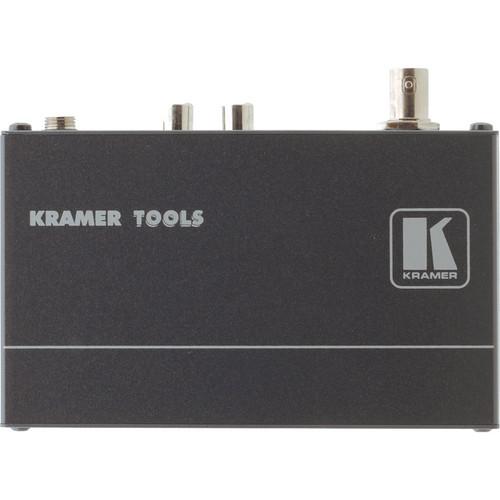

Product description The Kramer Electronics 718-05 Composite Video & Stereo Audio over Twisted Pair Receiver for composite video and unbalanced stereo audio signals. The 718-05 receives a twisted pair signal from the 717 transmitter (sold separately) and converts it back to composite video and unbalanced stereo audio. The 718-05 Receiver has a system range up to 1640' (500m). - A single connection to the transmitter or the receiver powers both units when the devices are within 150' (50m) of each other.
- System range up to 1640' (500m)
- Automatic audio and video equalization (EQ) control
- Cable UTP (unshielded twisted pair) or STP (shielded twisted pair) such as CAT 5
- 3 units can be rack mounted side−by−side in a 1U rack space with the optional RK−3T rack adapter
In the Box Kramer 718-05 Composite Video & Stereo Audio over Twisted Pair Receiver Power Supply Mounting Bracket Limited 7-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer 718-05 Composite Video & Stereo Audio over Twisted Pair Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKramer 718-05 Specs | Inputs | 1x twisted pair on a RJ−45 connector | | Outputs | 1x composite video on a BNC connector
1x unbalanced stereo audio on two RCA connectors | | Maximum Signal Level | Video: 1.45 Vpp (terminated 75Ω)
Audio: 20 Vpp | | Bandwidth | Video: 6.4 MHz
Audio: 20 Hz to20 kHz | | S/N Ratio | Video: >64dB RMS
Audio: >85db @1kHz (unweighted) | | Differential Gain | 0.6% | | Differential Phase | 0.1° | | K-Factor | 0.6% | | Controls | Fully-automatic | | Coupling | Input: AC
Output: DC | | Power Consumption | 12 VDC,130 mA | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | -40 to 158°F (-40 to 70°C) | | Humidity | 10 to 90%, RHL non-condensing | | Dimensions (W x D x H) | 4.7 x 2.7 x 0.96" (12 x 6.9 x 2.4 cm) | | Weight | 0.67 lb (0.3 kg) approximately |
