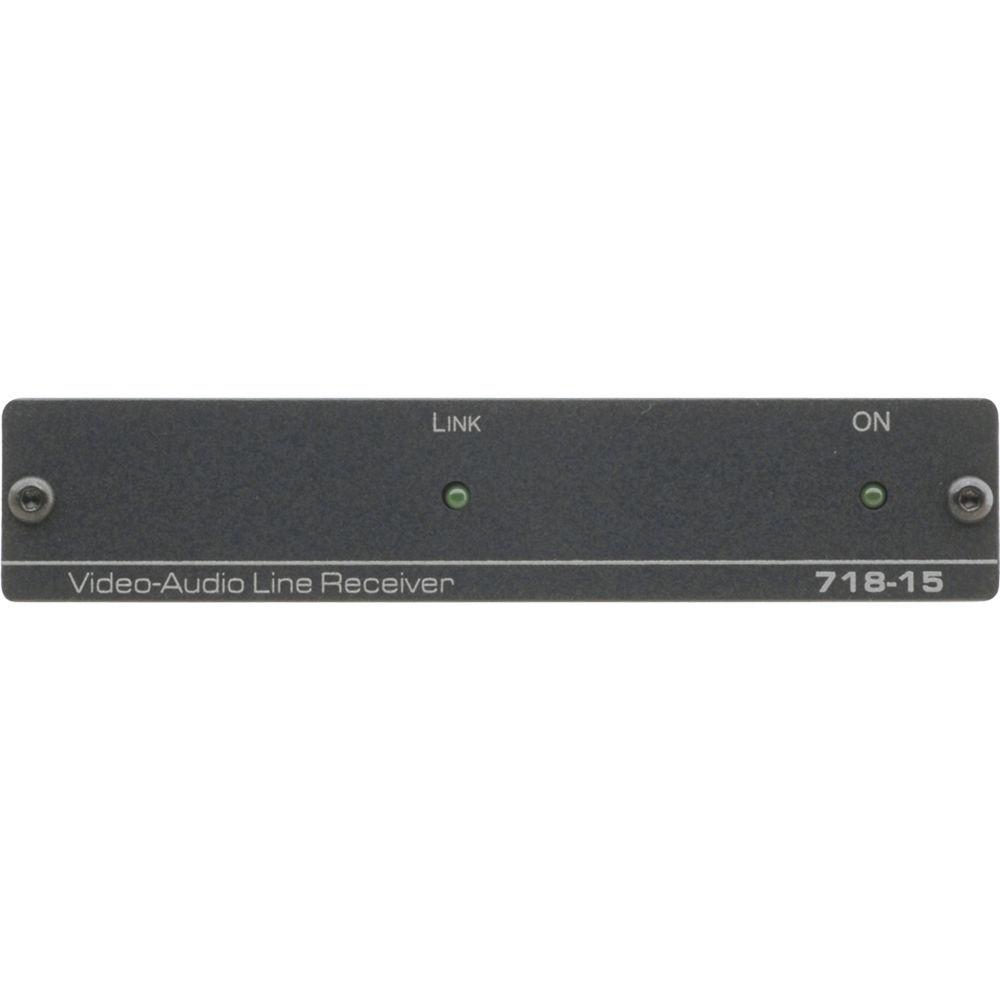

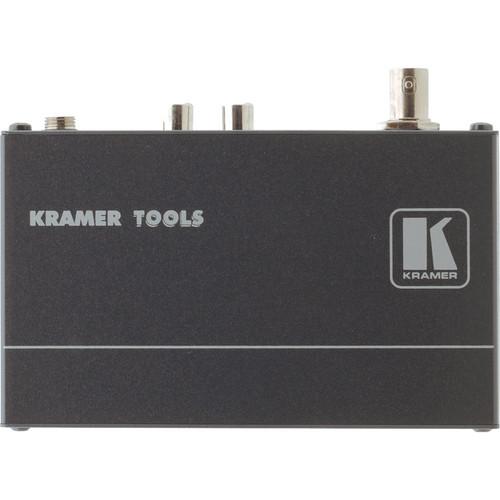

User Manual for Kramer 718-15 Composite Video & Stereo Audio over Twisted Pair Receiver Click to enlarge the picture
Contents of the user manual for the Kramer 718-15 Composite Video & Stereo
- Product category: Video Extenders & Repeaters Kramer
- Brand: Kramer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kramer Video Extenders & Repeaters
 |
User manual for the Kramer 718-15 Composite Video & Stereo contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kramer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kramer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kramer product will considerably shorten its lifespan!
|
Product description The Kramer Electronics 718-15 Composite Video & Stereo Audio over Twisted Pair Receiver for composite video and unbalanced stereo audio signals. The 718-15 receives a twisted pair signal from the 717 transmitter (sold separately) and converts it back to composite video and unbalanced stereo audio. The 718-15 Receiver has a system range up to 4920' (1500m). - A single connection to the transmitter or the receiver powers both units when the devices are within 150' (50m) of each other.
- System range up to 4920' (1500m)
- Automatic audio and video equalization (EQ) control
- Cable UTP (unshielded twisted pair) or STP (shielded twisted pair) such as CAT 5
- 3 units can be rack mounted side−by−side in a 1U rack space with the optional RK−3T rack adapter
In the Box Kramer 718-15 Composite Video & Stereo Audio over Twisted Pair Receiver Power Supply Mounting Bracket Limited 7-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer 718-15 Composite Video & Stereo Audio over Twisted Pair Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

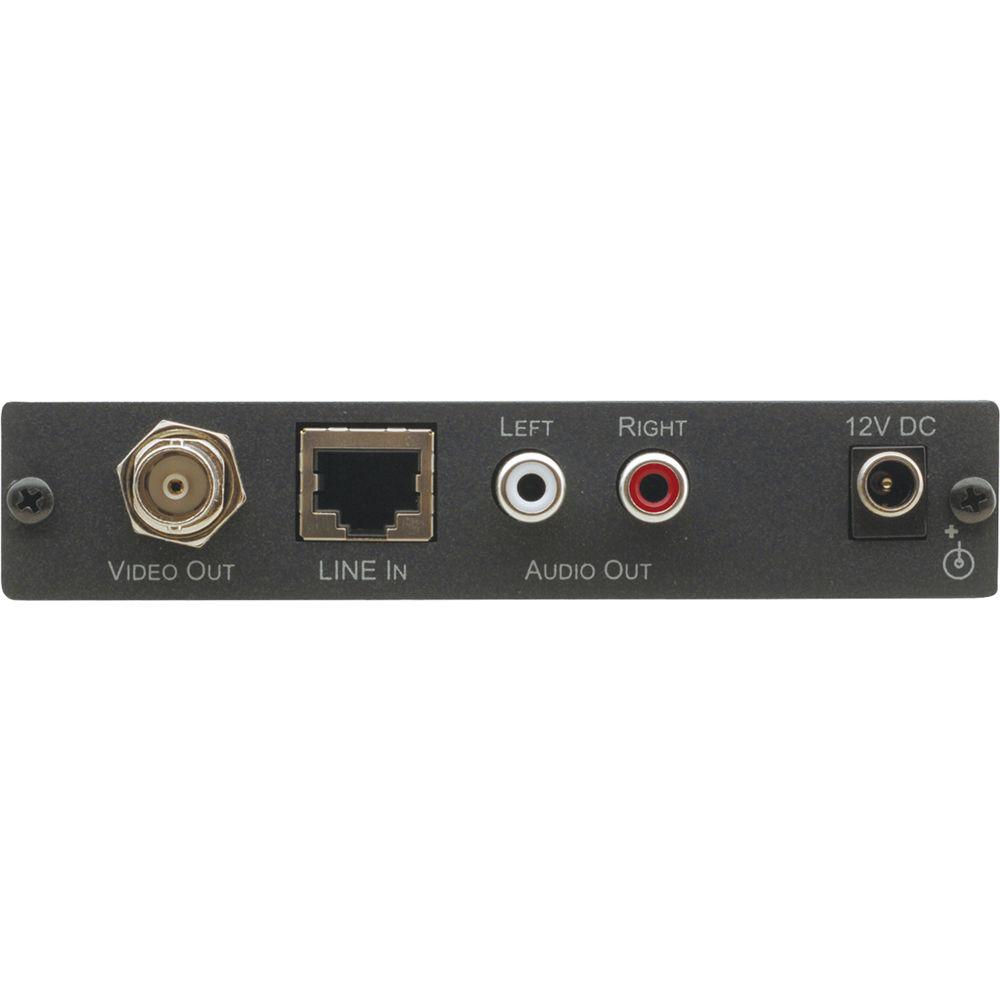

Technical parametersKramer 718-15 Specs | Inputs | 1x twisted pair on a RJ−45 connector | | Outputs | 1x composite video on a BNC connector
1x unbalanced stereo audio on two RCA connectors | | Maximum Signal Level | Video: 1.45 Vpp (terminated 75Ω)
Audio: 20 Vpp | | Bandwidth | Video: 6.4 MHz
Audio: 20 Hz to20 kHz | | S/N Ratio | Video: >64dB RMS
Audio: >85db @1kHz (unweighted) | | Differential Gain | 0.6% | | Differential Phase | 0.1° | | K-Factor | 0.6% | | Controls | Fully-automatic | | Coupling | Input: AC
Output: DC | | Power Consumption | 12 VDC,130 mA | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | -40 to 158°F (-40 to 70°C) | | Humidity | 10 to 90%, RHL non-condensing | | Dimensions (W x D x H) | 4.7 x 2.7 x 0.96" (12 x 6.9 x 2.4 cm) | | Weight | 0.67 lb (0.3 kg) approximately |
