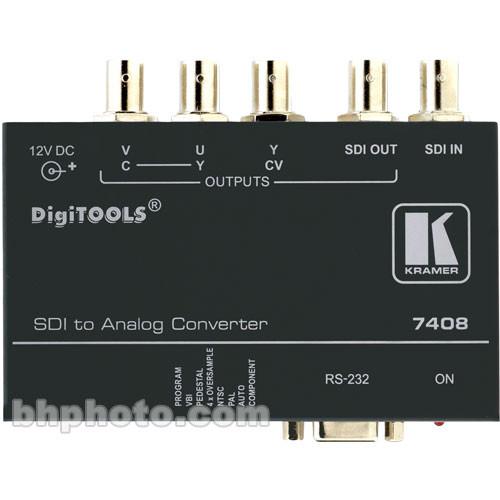

User Manual for Kramer 7408 SDI to Analog Converter Click to enlarge the picture
Contents of the user manual for the Kramer 7408 SDI to Analog Converter
- Product category: Signal Converters Kramer
- Brand: Kramer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kramer Signal Converters
|
User manual for the Kramer 7408 SDI to Analog Converter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kramer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kramer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kramer product will considerably shorten its lifespan!
|
Product description The Comprehensive/Kramer 7408 is an SDI digital video to Analog video converter. This device features a variety of analog video outputs and a processing amplifier. It processes NTSC and PAL television standards featuring a compact configuration. - Multi-Standard
- The input allows for 625 or 525 SDI and the output will support NTSC, NTSC-J and PAL-B,D,G,H,I or N operation.
- Excellent Quantization
- Offers the user a 10 bit processing path.
- Looping SDI Input
- The looping input can be utilized for test equipment or to cascade into a DA or monitoring device.
- Processing Amplifier
- Fully adjustable for accurate signal representation.
- NTSC Decoding Options
- Set up can be accomplished with or without 7.5 IRE pedestal.
- Compact Size
- This device was designed to fit on desktops and small studio spaces.
In the Box Kramer 7408 SDI to Analog Converter Null-modem Adapter Software for Remote Operation AC Power Adapter Limited 3-Year Warranty User Manual PDF 651.5kbzsfqdbawtusrwubrry Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer 7408 SDI to Analog Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKramer 7408 Specs | Input | SDI digital video (looping), SMPTE 259 @ 75 ohms, on a BNC connector
RS-232, on 9-Pin Connector | | Output | Composite video, @ 75 ohms, on a BNC connector
Y/C (S-Video) @ 75 ohms, on a 4-Pin connector
Component video, RGB or YUV @ 75 ohms, on BNC connectors | | Conversion | SDI digital video to Analog Component, composite and Y/C (S-Video)
Utilizing 10 bit quantization | | Control | Front Panel and RS-232 Menu Navigation and Selection:
Contrast
Brightness
Chroma
Hue
Sharpness
Store
Recall | | Power Source | 12 VDC on an AC Adapter | | Dimensions (WxDxH) | 4.7 x 2.95 x 0.98"
12 x 7.5 x 2.5cm | | Weight | 0.66 lbs
0.3 kg | | | | Package Weight | 1.5 lb | | Box Dimensions (LxWxH) | 9.1 x 4.9 x 3.4" |
