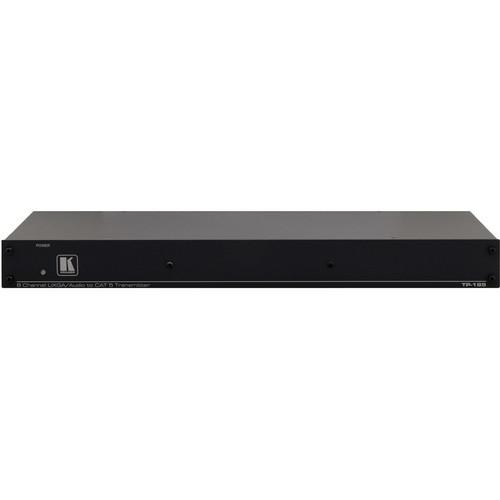

Product description The Kramer 8-Channel Video/Audio/Data over Twisted Pair Transmitter receives up to 8 channels of input signals (computer graphics, unbalanced audio, or RS-232/RS-485 signals) and transmits them to the appropriate twisted pair receivers over 8 outputs. It can work with an 8 output matrix switcher, easily converting the outputs to CAT5. Supporting a maximum resolution of WUXGA, the transmitter is also compatible with HDTV. It features a system range up to 328' (100 m); greater distances can be covered depending upon the type of cable used and the resolution of the signal being transmitted. Cables such as UTP (unshielded twisted pair) or STP (shielded twisted pair) like CAT5 are used. - Can transmit RS-232 or RS-485 data from 1 source to any or all 8 destination receivers
- Resolution up to WUXGA (1920 x 1200)
- 8 stereo audio on 3.5 mm mini-jack plugs as audio inputs
- Video inputs - 8 computer graphics video & HDTV (Y, Pr, Pb) signals on 15-pin HD connectors
- Outputs - 8 CAT5 on RJ-45 connectors
- System range up to 328' (100 m) - greater distances are possible depending upon the type of cable and the resolution of the signal being transmitted
- Cables used are UTP (Unshielded Twisted Pair) or STP (Shielded Twisted Pair) such as CAT5
- Standard 19" rack size; rack ears included
In the Box Kramer 8-Channel Video/Audio/Data over Twisted Pair Transmitter Power Cord Windows Based Control Software Rack Ears 7-Year Warranty for Defects in Materials and Workmanship Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer 8-Channel Video Audio Data over Twisted Pair Transmitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKramer TP-185 Specs | Inputs | 8 UXGA on 15−pin HD connectors (VGA through WUXGA, supporting HDTV and component (YPbPr) signals); 8 unbalanced stereo audio 3.5mm mini jacks | | Outputs | 8 TP on RJ−45 connectors | | Range | 328' (100 m) | | Resolution | Up to WUXGA (1920 x 1200) | | Max. Output Level | Video: 1.6 Vpp; Audio: 2.3 Vpp | | CONTROLS | RS−232 3−pin terminal block; RS−485 3−pin terminal block | | Serial Baud Rate | Up to 19200 kbps | | Serial Mode | Full-duplex | | Audio Bandwidth | 20 Hz to 20 kHz @ 0.5 dB | | AUDIO S/N RATIO: | <−80 dB | | Total Gain | 0 dB | | Audio Coupling | AC | | Audio THD + Noise | Audio: <0.03% | | Power Source | 100 to 240 V AC, 16 VA | | Dimensions (WxDxH) | 19 x 7.52" x 1U (482.6 x 191 mm x 1U) | | Weight | 8.4 lb (3.8 kg) |
