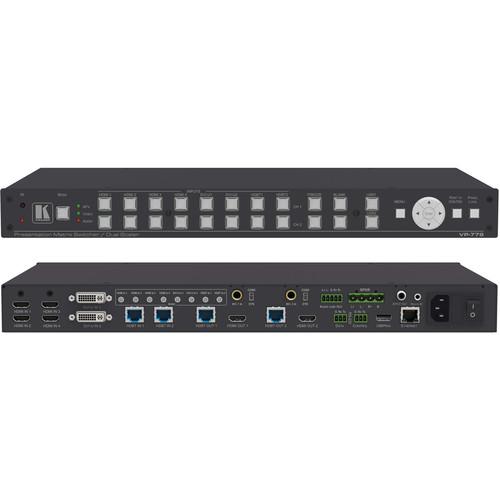

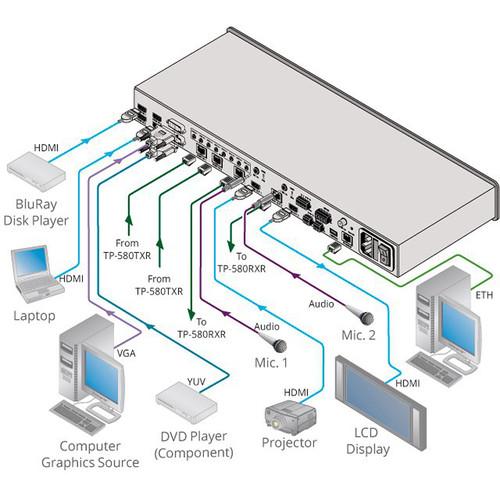

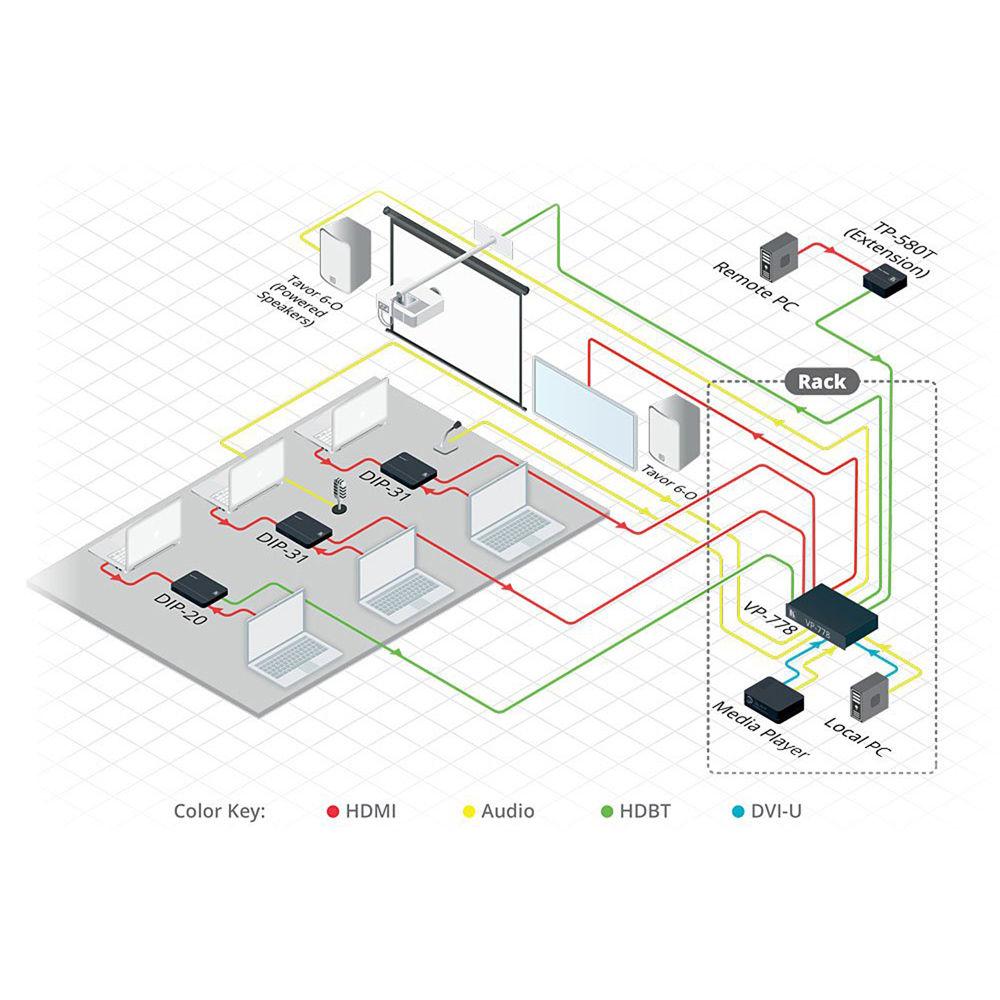

Product description The 8-Input Presentation Matrix Switcher/Scaler with Seamless Video Cuts and 4K30 Output Support from Kramer can be configured as a single 4K output or dual HD scaler with full PiP capabilities. It can scale to two independent HDMI outputs, each with a parallel HDBaseT output. The VP-778 includes both analog and embedded audio inputs and outputs, and audio DSP features. It also offers two microphone inputs and digital & analog balanced stereo line-level outputs, and amplified speaker outputs. Control the unit via the front panel buttons, dedicated web page, IR commands, or RS-485 or RS-232 serial commands transmitted by a touch-screen system, computer, or other serial controller. - K-IIT XL picture-in-picture image insertion technology offering ultra-stable picture-in-picture, picture-and-picture, and split-screen modes
- Seamless video switching for swap or follow (transition type) and cut or fade (transition effect)
- Dual scalers offer live seamless transitions with two independent outputs
- Eight input buttons per channel
- Main and PiP window customization in overlay mode
- Projection setups: Front, back, ceiling front, and ceiling back
- Choice of HDMI, VGA, YUV, or CV on two DVI-U, four HDMI, and two HDBaseT inputs
- Two programmable user buttons for passing serial commands
- Serial Comms Matrix allows up to eight sets of configurable unidirectional connections for passing serial data from source to destination
- HDBaseT technology with data rate of up to 6.75 Gb/s (2.25 Gb/s per graphic channel)
- HDBaseT system range of up to 430' in normal mode and up to 590' in ultra-mode (1080p at 60 Hz, 24 bpp) when using BC-UNIKAT cables
- Balanced stereo audio inputs, two balanced microphone inputs, digital stereo and balanced stereo outputs, input/output audio level adjustment, and audio DSP
- Built-in 2x10 W power amplifier with speaker outputs on a 4-pin terminal block connector
- Talkover or mix microphone modes
- Automatically scans inputs based on a predefined priority and selects first live input found or last connected
- Audio-Follow-Video (AFV) & breakaway
- Advanced de-interlacing with 3D comb filtering, film mode, diagonal correction, and motion detection
- Multiple aspect ratio choices
- Built-in Proc-Amp with enhanced functions such as color correction, gamma, dither, and noise reduction
- Power management modes save energy and money
- Advanced EDID management of native resolution and color depth modeline per input
- Built-in test patterns for screen setup and alignment
- Output EDID analysis for optimal scaling
- On-Screen Display (OSD) provides easy setup and adjustment
- Non-volatile memory retains settings
- Firmware upgradeable via USB memory stick
- Control options include front panel buttons, Ethernet web page, IR, and RS-485 & RS-232 serial commands transmitted by a touch screen system, PC, or other serial controller
In the Box Kramer 8-Input Presentation Matrix Switcher/Scaler with Seamless Video Cuts and 4K30 Output Support IR Remote Control Transmitter with Batteries 2 x DVI-I Male to VGA Female Adapter Set of 19" 1 RU Rack Ears Power Cord 2 x DVI-A Male to 5 BNC Female Adapter Cables (ADC-DMA/5BF-1) 4 x Rubber Feet Limited 7-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer 8-Input Presentation Matrix Switcher Scaler with Seamless Video Cuts and 4K30 Output Support in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKramer VP-778 Specs | Inputs | 4 x HDMI (deep color)
8 x DVI-U (deep color), DVI, HDMI, PC, YPbPr, CV
2 x HDBaseT, RJ45
4 x HDMI, 2 x DVI-U & 2 x HDBaseT audio on 3.5 mm mini jacks
2 x balanced mics on 6 mm jacks (with selectable 48 V phantom power) | | Outputs | 2 x HDMI (deep color)
2 x HDBaseT, RJ45
1 x S/PDIF digital audio, RCA
1 x balanced stereo audio, 5-pin terminal block
1 stereo speaker output, 2 x 10 W, 4-pin terminal block | | Compliance With HDMI Standard | Supports HDMI and HDCP | | Composite Video | NTSC and PAL | | YPbPr Input Resolutions | NTSC:
720p at 50 Hz
1080p at 30 Hz
1080p at 50 Hz
PAL:
720p at 60 Hz
1080p 23.976 Hz
1080p at 60 Hz
525p at 60 Hz
1080i at 50 Hz
1080p at 24 Hz
1080i at 100 Hz
625p at 50 Hz
1080i at 60 Hz
1080p at 25 Hz | | RGBHV Input Resolutions | 640 x 480 at 60 Hz
800 x 600 at 75 Hz
625p at 50 Hz
1280 x 1024 at 60 Hz
1400 x 1050 at 75 Hz
640 x 480 at 72 Hz
800 x 600 at 85 Hz
525p at 60 Hz
1280 x 1024 at 75 Hz
1600 x 900 at 60 Hz
640 x 480 at 75 Hz
1024 x 768 at 60 Hz
720p at 50 Hz
1280 x 1024 at 85 Hz
1600 x 1200 at 60 Hz
640 x 480 at 85 Hz
1024 x 768 at 70 Hz
720p at 60 Hz
1360 x 768 at 60 Hz
1680 x 1050 at 60 Hz
800 x 600 at 56 Hz
1024 x 768 at 75 Hz
1280 x 800 at 60 Hz
1366 x 768 at 60 Hz
1920 x 1200 at 60 RB
800 x 600 at 60 Hz
1024 x 768 at 85 Hz
1280 x 960 at 85 Hz
1440 x 900 at 60 Hz
1080p at 50 Hz
800 x 600 at 72 Hz
1152 x 864 at 75 Hz
1280 x 768 at 60 Hz
1400 x 1050 at 60 Hz
1080p at 60 Hz | | HDMI Input Resolutions | NTSC:
1080i at 60 Hz
640 x 480 at 72 Hz
1024 x 768 at 70 Hz
1360 x 768 at 60 Hz
PAL:
1080p 23.976 Hz
640 x 480 at 75 Hz
1024 x 768 at 75 Hz
1366 x 768 at 60 Hz
525p at 60 Hz
1080p at 24 Hz
640 x 480 at 85 Hz
1024 x 768 at 85 Hz
1440 x 900 at 60 Hz
625p at 50 Hz
1080p at 25 Hz
800 x 600 at 56 Hz
1152 x 864 at 75 Hz
1400 x 1050 at 60 Hz
720p at 24 Hz
1080p at 30 Hz
800 x 600 at 60 Hz
1280 x 800 at 60 Hz
1400 x 1050 at 75 Hz
720p at 25 Hz
1080p at 50 Hz
800 x 600 at 72 Hz
1280 x 960 at 85 Hz
1600 x 900 at 60 Hz
720p at 30 Hz
1080p at 60 Hz
800 x 600 at 75 Hz
1280 x 768 at 60 Hz
1600 x 1200 at 60 Hz
720p at 50 Hz
2K at 50 Hz
800 x 600 at 85 Hz
1280 x 1024 at 60 Hz
1680 x 1050 at 60 Hz
720p at 60 Hz
2K at 60 Hz
848 x 480 at 60 Hz
1280 x 1024 at 75 Hz
1920 x 1200 at 60 RB
1080i at 50 Hz
640 x 480 at 60 Hz
1024 x 768 at 60 Hz
1280 x 1024 at 85 Hz | | HDMI Output Resolutions | 640 x 480 at 60, 75 Hz
800 x 600 at 50, 60, 75 Hz
1024 x 768 at 50, 60, 75 Hz
1280 x 768 at 50, 60 Hz
1280 x 800 at 60 Hz
1280 x 1024 at 50, 60, 75 Hz
1360 x 768 at 60 Hz
1366 x 768 at 50, 60 Hz
1400 x 1050 at 50, 60 Hz
1600 x 900 at 60 Hz
1600 x 1200 at 50, 60 Hz
1680 x 1050 at 60 Hz
1920 x 1200 at 60 Hz
480i at 60 Hz
480p at 60 Hz
576i at 50 Hz
576p at 50 Hz
720p at 50 Hz
720p at 59.9 4 Hz
720p at 60 Hz
1080p at 23.976 Hz
1080p at 24 Hz
1080p at 25 Hz
1080p at 29.97 Hz
1080p at 30 Hz
1080p at 50 Hz
1080p at 59.94 Hz
1080p at 60 Hz
2048 x 1080 at 60 Hz
2048 x 1080 at 50 Hz
4K2K at 30 Hz | | Control | Front panel buttons, OSD, IR remote control, web pages, 2 x RS-232 on terminal block connector, Ethernet, and cond/dyn selector switch | | Operating Temperature | 32 to 104°F / 0 to +40°C | | Storage Temperature | -40 to 158°F / -40 to +70°C | | Humidity | 10 to 90%, RHL non-condensing | | Power Consumption | 100 to 240 VAC, 50 VA max. | | Rack Height | 1 RU | | Dimensions | 19.00 x 9.34 x 1.75" / 43.6 x 23.72 x 4.36 cm | | Weight | 5.7 lb / 2.6 kg approx. |
