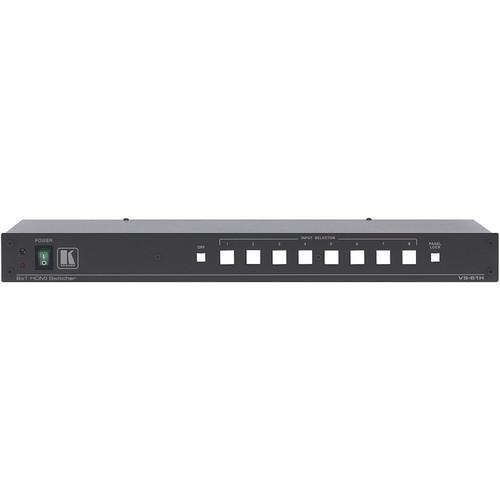

User Manual for Kramer 8 x 1 HDMI Switcher Click to enlarge the picture
Contents of the user manual for the Kramer 8 x 1 HDMI Switcher
- Product category: Routers & Switchers Kramer
- Brand: Kramer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kramer Routers & Switchers
|
User manual for the Kramer 8 x 1 HDMI Switcher contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kramer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kramer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kramer product will considerably shorten its lifespan!
|
Product description The Kramer 8 x 1 HDMI Switcher, for HDMI signals, is suitable for conference room presentations and advertising applications. With Kramer Equalization & Re-clocking technology that rebuilds the digital signal to travel longer distances, the switcher re-clocks and equalizes the signal, and switches any 1 of the 4 inputs to a single HDMI output. The unit has a maximum data rate of up to 2.25 Gbps.
The 8 x 1 HDMI Switcher supports HDCP, and is compatible with HDTV. It supports HDMI v1.4 with Deep Color, x.v.Color, Lip Sync, HDMI uncompressed audio channels, Dolby TrueHD, DTS-HD, CEC, and 3D Pass-Through.
Equipped with I-EDIDPro Kramer Intelligent EDID Processing, the switcher ensures intelligent EDID handling & processing of an algorithm. This enables easy Plug and Play operation for HDMI systems. Front Panel Lockout prevents tampering. The 8 x 1 HDMI Switcher features video disconnect and offers both PC and DVD modes selectable by input.
You can control the 8 x 1 HDMI Switcher via the front panel buttons or remotely via RS-232, Ethernet, or IR remote. It has a standard 19” rack mount size, fits 1U rack space, and requires a 100-240V AC power supply. - High-performance switcher for HDMI signals
- Suitable for conference room presentations and advertising applications
- Kramer Equalization & Re-clocking technology
- Rebuilds the digital signal to travel longer distances
- Re-clocks and equalizes the signal
- Switches any 1 of the 4 inputs to a single HDMI output
- Supports a maximum data rate of up to 2.25 Gbps
- HDCP compliant & HDMI compatible
- Supports HDMI v1.4 with Deep Color, x.v.Color, Lip Sync, HDMI uncompressed audio channels, Dolby TrueHD, DTS-HD, CEC, and 3D Pass-through
- I-EDIDPro Kramer Intelligent EDID Processing
- Ensures intelligent EDID handling & processing of an algorithm
- Enables easy Plug and Play operation for HDMI systems
- Front Panel Lockout - prevents tampering
- Features video disconnect
- Dual Mode - PC and DVD modes selectable by input
- Control - front panel buttons or remotely via RS-232, Ethernet, or IR remote
- Standard 19" rack mount size
- Fits 1U rack space (includes rack ears)
- Requires a 100-240V AC power supply
In the Box Kramer 8 x 1 HDMI Switcher Infrared Remote Control Transmitter (including batteries and user manual) Windows-based Kramer Control Software Windows-based Ethernet Configuration Manager and Virtual Serial Port Manager Power Cord Set of Rack Ears Null-modem Adaptor User Manual 7-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer 8 x 1 HDMI Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKramer VS-81H Specs | Inputs | 8 HDMI Connectors | | Outputs | 1 HDMI Connector | | Bandwidth | Supports up to 2.25Gbps bandwidth per graphics channel | | Compliance With HDMI Standard | Supports HDMI 1.3a and HDCP | | Resolution | Up to UXGA; 1080p, deep color | | Controls | Front panel buttons, Infra-red remote control transmitter, RS-232, Ethernet | | Power Source | 100-240V AC, 50/60Hz, 12VA | | Options | Kramer HDMI cables | | Dimensions (WxDxH) | 19 x 7 x 1.75" (48 x 17.8 x 4.4cm) | | Weight | 5.5 lb (2.5 kg) | | | | Package Weight | 5.25 lb | | Box Dimensions (LxWxH) | 21.4 x 10.9 x 4.3" |
