Product description The 840Hxl HDMI Video Test Pattern Generator from Kramer is a high performance HDMI video test pattern generator which generates 32 preset patterns at 16 popular computer, HD and seven user-defined resolutions. It includes several unique patterns that incorporate motion. - Output Resolutions - All common PC and HDTV resolutions
- Color Space - RGB, YUV 444, YUV 442 & auto
- Embedded Audio - 6 sample rates & 3 bit depths
- Controls - HDCP On/Off, Embedded Audio On/Off
- Indicators - 2-digit display, power LED
- Control - USB and RS−232 ports for connecting to a controlling PC

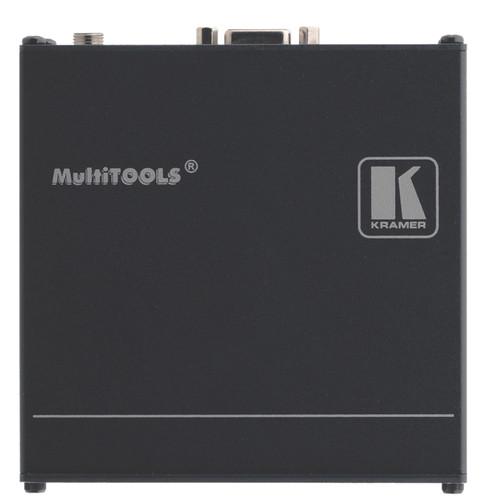

- Size - Compact MultiTOOLS - 4 units can be rack mounted side-by-side in a 1RU rack space with the optional RK-1 rack adapter
In the Box Kramer 840Hxl HDMI Video Test Pattern Generator Power Supply Limited 7-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer 840Hxl HDMI Video Test Pattern Generator in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKramer 840HXL Specs | Output Resolutions | VGA: 640 x 480 @ 60 Hz, 720 x 480 @ 60 Hz
SVGA: 800 x 600 @ 60 Hz
XGA: 1024 x 768 @ 60 Hz, 1280 x 720 @ 60 Hz, 1360 x 768 @ 60 Hz, 1440 x 900 @ 60 Hz
SXGA+: 1400 x 1050 @ 60 Hz
SXGA: 1280 x 1024 @ 60 Hz WSXGA+: 1680 x 1050 @ 60 Hz SXGA: 1280 x 1024 @ 75 Hz, HD 1080 1920 x 1080 @ 60 Hz
WUXGA: 1920 x 1200 @ 60 Hz
UXGA: 1600 x 1200 @ 60 Hz, 720 x 480i @ 60 Hz
HD: 1080 1920 x 1080i @ 60 Hz | | Output Native Resolutions | 720 x 480 @ 120 Hz, 720 x 480 @ 240 Hz, 720 x 576 @ 50 Hz, 720 x 576 @ 100 Hz, 720 x 576 @ 200 Hz
1440 x 576 @ 50 Hz, 1440 x 576i @ 50 Hz, 1280 x 720 @ 50 Hz, 1280 x 720 @ 60 Hz, 1280 x 720 @ 100 Hz
1280 x 720 @ 120 Hz, 1440 x 288 @ 50 Hz, 1440 x 480 @ 60 Hz, 2880 x 240 @ 60 Hz, 2880 x 288 @ 50 Hz
2880 x 480 @ 60 Hz, 2880 x 480i @ 60 Hz, 2880 x 576 @ 50 Hz, 2880 x 576i @ 50 Hz, 1920 x 1080 @ 25 Hz
1920 x 1080 @ 30 Hz, 1920 x 1080 @ 50 Hz, 1920 x 1080i @ 50 Hz, 1920 x 1080 @ 60 Hz, 1920 x 1080 @ 60 Hz
1920 x 1080 @ 100 Hz, 1920 x 1080 @ 120 Hz, 2K 2048 x 1080 @ 50 Hz, 2K 2048 x 1080 @ 60 Hz | | Connectors | HDMI, output

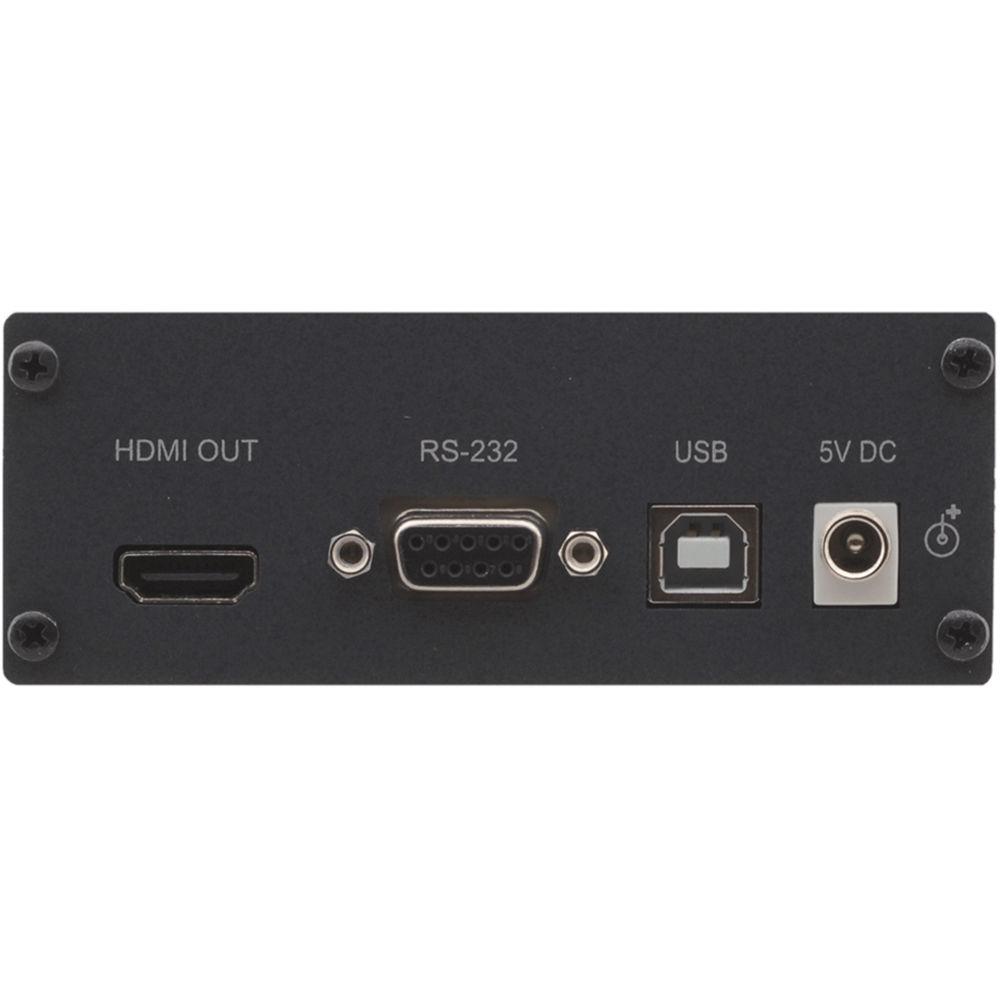

9-pin Sub-D, RS-232 port

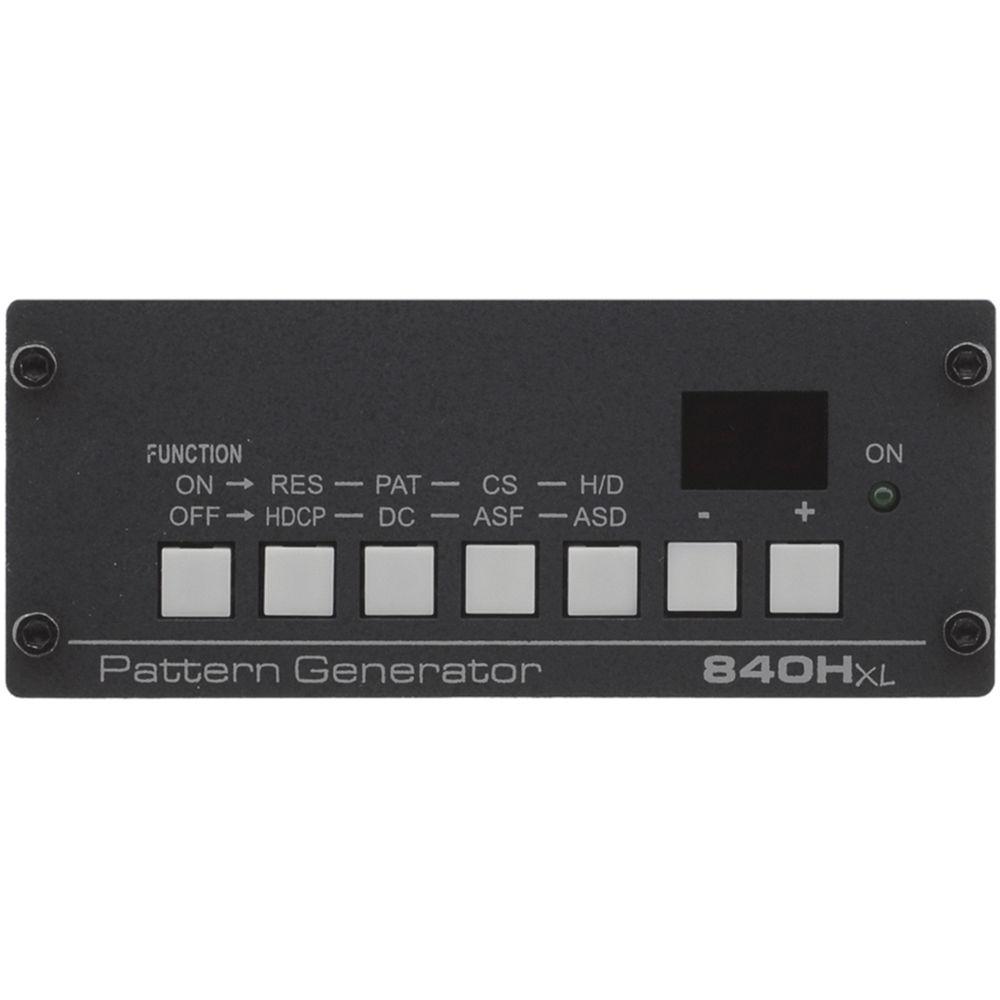

USB, port | | Controls | Five dual function and two single function front panel buttons | | Power Consumption | 5 VDC, 460 mAh | | Operating Temperature | 32° to 104° F (0° to 40° C) | | Storage Temperature | -40° to 158° F (-40° to 70° C) | | Humidity | 10% to 90%, RHL non−condensing | | Dimension | 4.2 x 3.9 x 1.7" (10.7 x 10.0 x 4.4 cm) | | Weight | 0.88 lb (0.4 kg) approx. | | | | Box Dimensions (LxWxH) | 10.68 x 10.35 x 4.36" |
