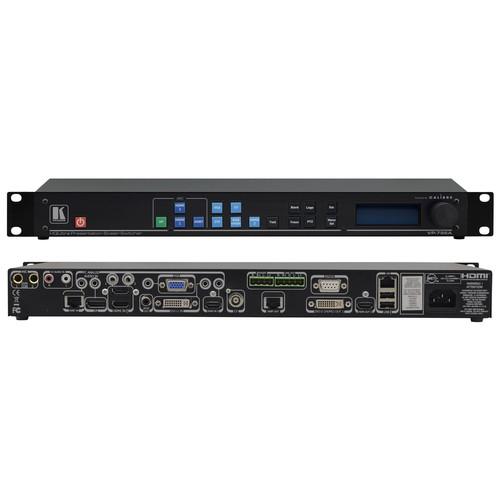

User Manual for Kramer 9-Input UHD 4K HDBaseT & Legacy Scaler Switcher with Analog Audio Click to enlarge the picture
Contents of the user manual for the Kramer 9-Input UHD 4K HDBaseT &
- Product category: Routers & Switchers Kramer
- Brand: Kramer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kramer Routers & Switchers
|
User manual for the Kramer 9-Input UHD 4K HDBaseT & contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kramer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kramer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kramer product will considerably shorten its lifespan!
|
Product description The 9-Input UHD 4K HDBaseT & Legacy Scaler/Switcher from Kramer is a universal 4K presentation scaler and switcher for HDMI, DisplayPort, HDBaseT, VGA, composite, and DVIU signals. Its HQUltraFast technology switches in typically a quarter of a second. - Low latency, UHD 4K, proprietary scaling algorithms
- Proprietary technology for typical 0.25 second input channel switching
- Up to UHD 4K @ 60 Hz (4:2:0) resolution support
- Front panel jog wheel and LCD display for fast and easy setup in the field
- Reduces image flicker and artifacts
- For all source types including RGB controls, saturation, and hue
- Built-in test patterns for easy projector setup
- Supports customized video logo
- Flexible aspect ratio conversion
- Audio de-embedding from HDMI, DisplayPort, and HDBaseT inputs to S/PDIF; re-embedding to HDMI, and HDBaseT outputs
- For local monitoring of live output feed
- Front panel buttons and jog wheel with LCD, RS-232, Ethernet with built-in web pages, and via API
- USB connectors for firmware upgrading
- Supports up to eight unbalanced stereo inputs, two microphone inputs with phantom power, and an audio mixer
- Stereo audio power amplifier supporting a 15W RMS loudspeaker per output
- Separate stereo balanced line level audio outputs for external amplifier systems
In the Box Kramer 9-Input UHD 4K HDBaseT & Legacy Scaler/Switcher with Analog Audio Rackmount Ears Power Cord Limited 7-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer 9-Input UHD 4K HDBaseT & Legacy Scaler Switcher with Analog Audio in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKramer VP-796A Specs | Video Inputs | 1 x HDBT on RJ45 connector
1 x DisplayPort connector
2 x HDMI (4K UHD) connectors
1 x HDMI (HD) connector
1 x DVIU (DVI/HDMI & VGA/RGBS/YPbPr)
1 x VGA on 15-pin HD connector
1 x CV on RCA connector | | Audio Inputs | 2 x Microphones on 6 mm mini jacks
1 x CV stereo on RCA connectors (R, L)
7 x Unbalanced stereo on 3.5 mm jacks | | Outputs | 1 x HDBT on RJ45 connector
1 x HDMI connector
1 x DVI/HDMI on DVII connector
1 x S/PDIF on RCA connector | | Audio Outputs | Speaker on 4-pin terminal block
Line out on 5-pin terminal block
S/PDIF on RCA connector | | Ports | 1 x RS-232 on 9-pin D-Sub connector
1 x LAN on RJ45 connector
2 x USB-A connectors | | Component Video Input | 1080p @ 23.98/24/25/29.97/30 Hz
1080i @ 50/59.94/60 Hz
720p
576p (ED) / 576i (SD)
480p / 484i (480i) | | Signal | HDMI/DVI
4K-Supported HDMI Inputs 1 & 2:
3840 x 2160p & 4096 x 2160p @ 23.97/24/25/29.94/30/50/59.94/60 Hz
(50/59.94/60 Hz supported in YUV 4:2:0 color space format)
HD:
2048 x 1080p @ 23.97/24/25/29.94/30/50/59.94/60 Hz
1920 x 1080p @ 23.97/24/25/29.94/30/50/59.94/60 Hz
1920 x 1080PsF
1920 x 1080i
1280 x 720p
ED:
576p / 480p
SD:
625i (576i) and 525i (480i) in double rate formats | | Output Resolutions | 4096 x 2160
3860 x 2160
2560 x 1600 / 1440 / 1080
2024 x 1080
1920 x 1200
1600 x 1200
1400 x 1050
1280 x 1024 / 800 / 768
1024 x 768
800 x 600
640 x 480
1080p / 1080i
720p (default after reset)
576p / 576i
480p / 480i | | Frame Rate | 60/59.94/50/48/25/24/23.97 Hz, auto | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | 40 to 158°F (40 to 70°C) | | Humidity | 10 to 90%, RHL non-condensing | | Power Consumption | 100/264 VAC, 50/60 Hz | | Standards Compliance | CE: 2004/108/EC Electromagnetic Compatibility Directive, and 2006/95/EC Low Voltage Directive
Compliance is to EN55022 Class A | | Rack Height | 1 RU | | Dimensions | 19.0 x 7.2" (48.3 x 18.3 cm) | | Weight | 6 lb (2.7 kg) approximately | | | | Package Weight | 8.75 lb | | Box Dimensions (LxWxH) | 22.7 x 12.1 x 5.1" |
