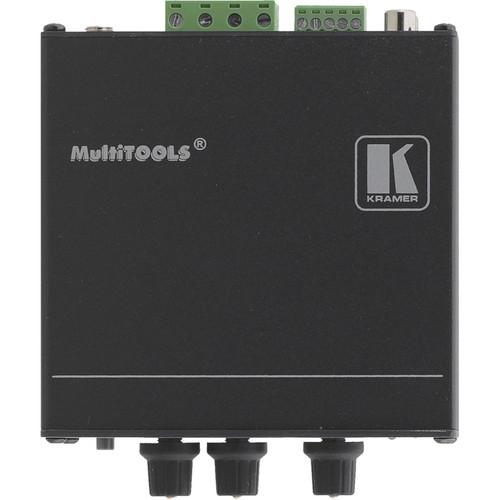

User Manual for Kramer 907xl Stereo Audio Power Amplifier Mixer Click to enlarge the picture
Contents of the user manual for the Kramer 907xl Stereo Audio Power Amplifier
- Product category: Amplifiers Kramer
- Brand: Kramer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kramer Amplifiers
 |
User manual for the Kramer 907xl Stereo Audio Power Amplifier contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kramer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kramer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kramer product will considerably shorten its lifespan!
|
Product description The Kramer 907xl Stereo Audio Power Amplifier/Mixer is ideal for presentation rooms and multimedia applications that require quick and local audio amplification. It delivers 40W per channel into an 8Ω load. It accepts a balanced stereo audio signal on a terminal block connector and an unbalanced stereo signal on RCA connectors. The 907xl is a high−performance power amplifier for line−level stereo audio signals and is perfect for personal audio listening devices like a PC and/or a portable CD player. - High Efficiency
- Class D operation

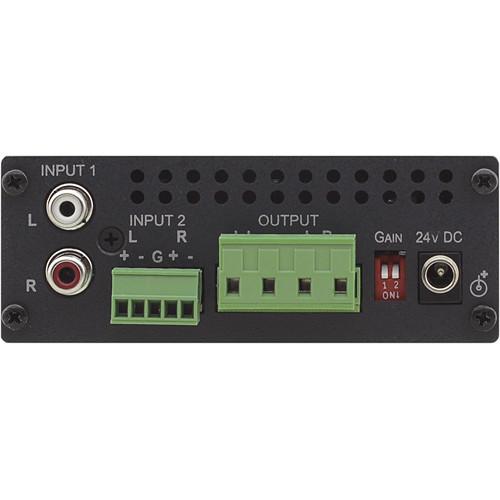

- Inputs
- (1) balanced stereo on a terminal block, (1) unbalanced stereo on RCA connectors
- Output
- Terminal block for speakers

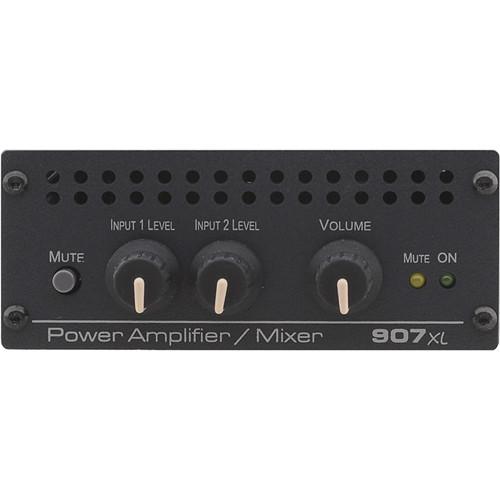

- Controls
- (1) volume control knob for each input and mute button
- Compact MultiTOOLS
- Up to (4) units can be rack mounted side−by−side in a 1U rack space with the optional RK−1 universal rack adapter
- Additional Features
- Gain control DIP switches / Mute and on indicator LEDs
In the Box Kramer 907xl Stereo Audio Power Amplifier/Mixer Power Supply 7-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer 907xl Stereo Audio Power Amplifier Mixer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKramer 907xl Specs | Input/Output | 1 x balanced stereo audio on a terminal block connector
1 x unbalanced stereo audio on RCA connectors
1 x speaker output on a terminal block connector | | Output Power | Output power: 40W per channel into 8Ω
Output music power: 150W per channel into 8Ω | | Input Sensitivity | 1.2Vrms | | Amplifier | Class D | | Gain | 36dB (x10) | | Bandwidth | 25kHz | | Signal to Noise Ratio | 66dB | | Coupling | Inputs: AC, Outputs: DC | | Audio THD + Noise | 1.2% | | 2nd Harmonic | 1% | | Power Source | 24V DC, 2.2A | | Controls | (2) gain DIP−switches, (1) mute button, (2) input level knobs, (1) volume knob | | Temperature | Operating: 32-131°F (0-55°C)
Storage: −49-162°F (−45-72°C) | | Humidity | 10-90%, RHL non−condensing | | Dimensions (WxDxH) | 4.2 x 4.1 x 1.6" (10.7 x 10.4 x 4 cm) | | Weight | 0.7lb. (0.3kg) | | | | Box Dimensions (LxWxH) | 10.68 x 10.35 x 4.36" |
