User Manual for Kramer 908 Stereo Audio Amplifier and Switcher Click to enlarge the picture
Contents of the user manual for the Kramer 908 Stereo Audio Amplifier and
- Product category: Amplifiers Kramer
- Brand: Kramer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kramer Amplifiers
 |
User manual for the Kramer 908 Stereo Audio Amplifier and contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kramer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kramer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kramer product will considerably shorten its lifespan!
|

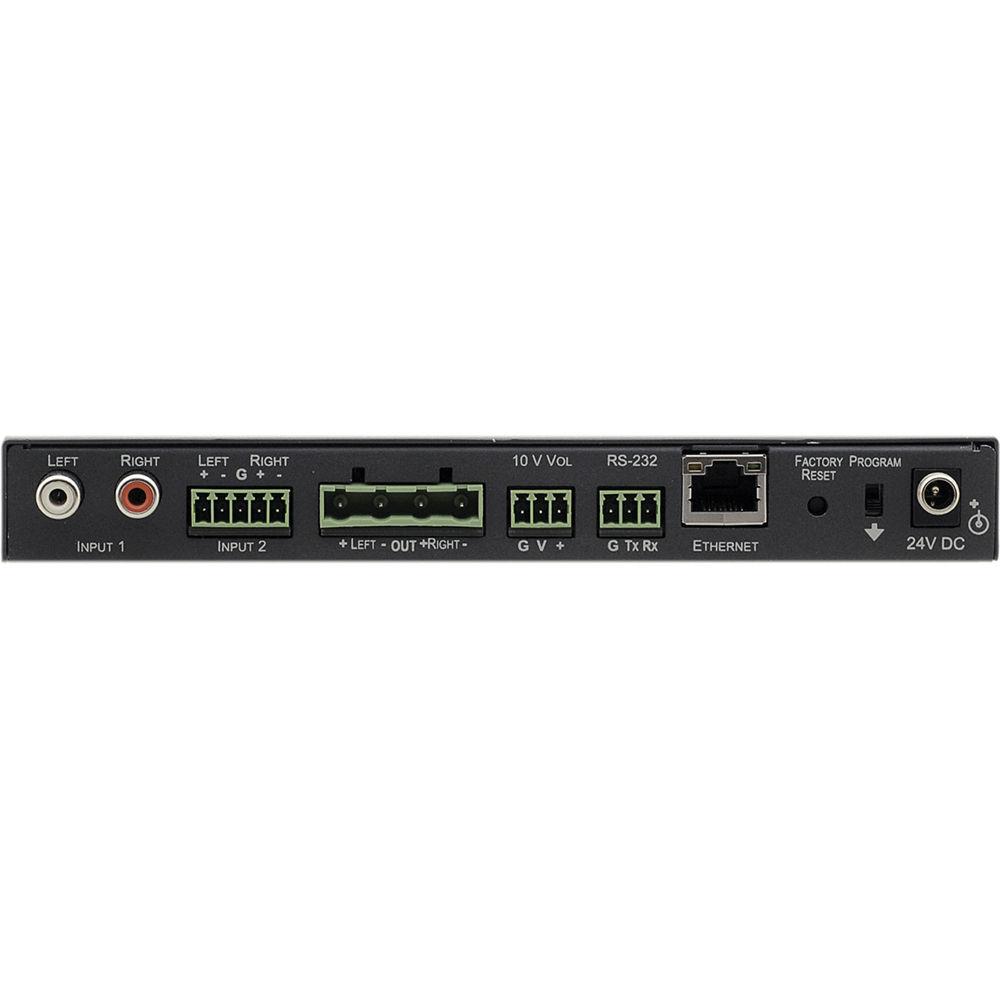

Product description The Kramer 908 Stereo Audio Amplifier and Switcher is a high-performance audio amplifier for line-level stereo audio signals. The 908 delivers a speaker output of 2 x 40W RMS per channel into an 8Ω load on a 10A, 4-pin terminal block connector. The Kramer 908 Stereo Audio Amplifier and Switcher accepts either a stereo audio signal on RCA connectors or a balanced stereo audio signal on a terminal block connector. - Input
- 1 unbalanced stereo on RCA connectors, 1 balanced stereo on a terminal block
- Output
- Terminal block for speakers

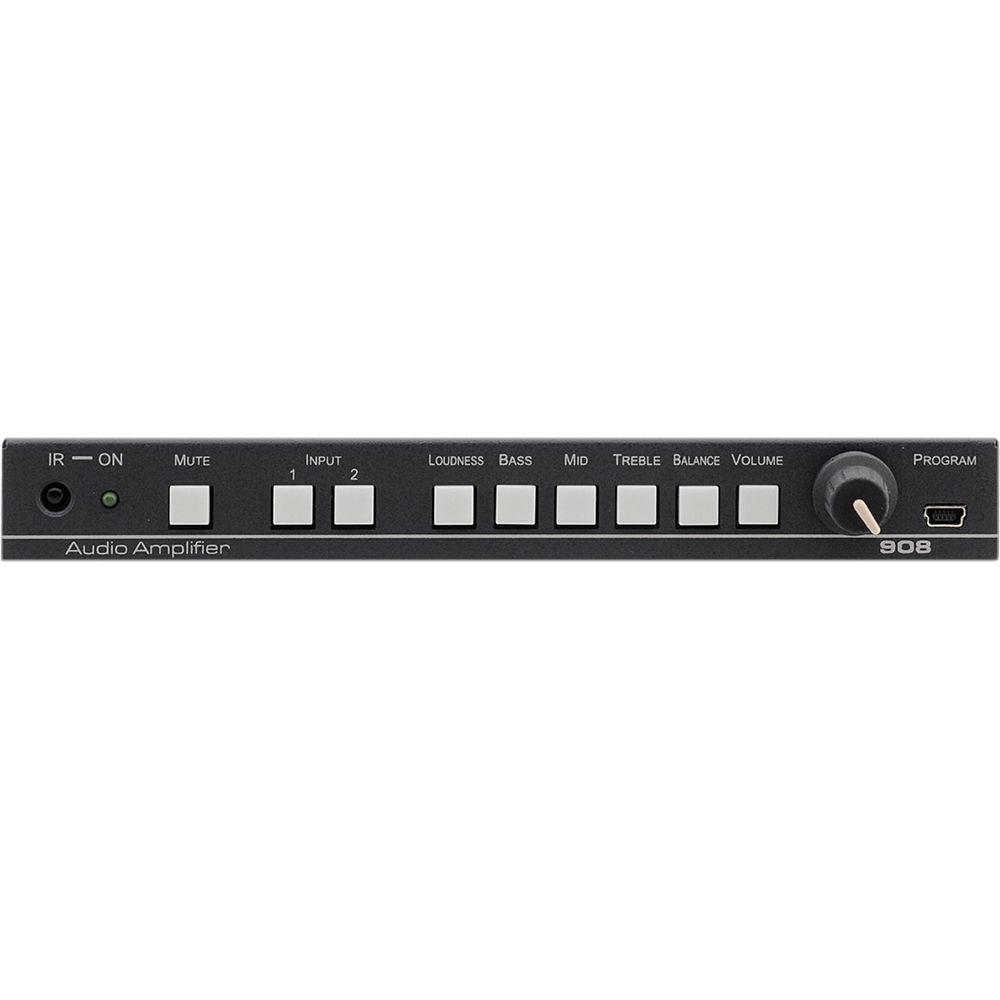

- Controls
- Control knob to adjust volume, bass, middle, treble and balance. Mute and loudness buttons, plus a 10V control port for adjusting the audio gain
- USB Port
- For firmware update
- Flexible Control Options
- Front panel, RS−232 (K−router Windows−based software is included), Ethernet, IR remote (included) and 10KΩ volume level

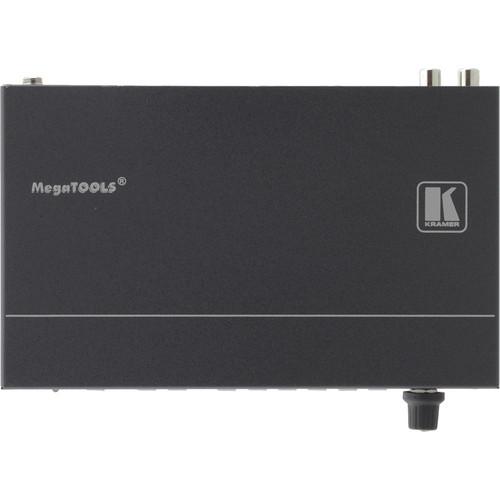

- Compact MegaTOOLS
- 2 units can be rack mounted side−by−side in a 1U rack space with the optional RK−T2B universal rack adapter
- Applications
- Presentation rooms and multimedia applications for quick, local audio amplification
Personal audio listening (for example, a PC and portable CD player) In the Box Kramer 908 Stereo Audio Amplifier and Switcher (40W per Channel) Power Supply (24V DC) Windows Kramer Control Software RC-IR3 Infrared Remote Control Transmitter (Including the Required Battery and a Separate User Manual) User Manual 7-Year Parts and Labor Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer 908 Stereo Audio Amplifier and Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKramer 908 Specs | | | Inputs | 1 unbalanced stereo audio on RCA connectors; 1 balanced stereo audio on a 5−pin terminal block connector; 1 USB connector | | Output | 1 speaker stereo audio on a 4−pin terminal block connector | | Input Sensitivity | Unbalanced: 360mVpp
Balanced: 220mVpp | | Maximum Voltage Gain | Unbalanced: 35dB
Balanced: 40.5dB | | Output Power | 40W per channel into 8Ω | | Bandwidth | 22kHz | | Crosstalk | 57dB @20kHz | | Controls | Level: 30dB to 35.5dB; balance: −30dB to 0dB; loudness: −14dB to 0dB @1kHz; bass: −15dB to 12dB @100Hz; mid: −15dB to 11dB @1kHz; treble: −14dB to 13dB @10kHz; input selector buttons, mute button, loudness, bass, mid, treble, balance, volume buttons, IR, RS−232, K−NET, Ethernet, 10V volume control, 1 USB port for upgrading firmware | | Coupling | Input: AC
Output: DC | | THD & Noise | 0.15% | | 2nd Harmonic | 0.06% | | Signal to Noise Ratio | 63dB, 80dB @10% distortion | | Type | Class D | | Power Source | 24V DC, 2A | | Dimensions (WxDxH) | 7.4 x 4.5 x 0.9" (18.8 x 11.4 x 2.4cm) | | Weight | 1.3 lb. (0.6kg) |
