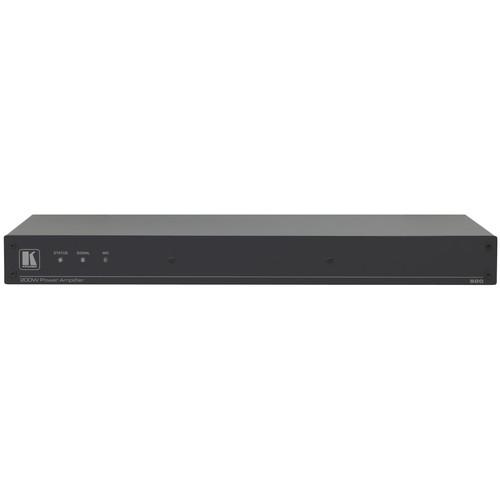

User Manual for Kramer 920 Audio Power Amplifier Click to enlarge the picture
Contents of the user manual for the Kramer 920 Audio Power Amplifier
- Product category: Mixer/Amplifiers Kramer
- Brand: Kramer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kramer Mixer/Amplifiers
|
User manual for the Kramer 920 Audio Power Amplifier contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kramer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kramer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kramer product will considerably shorten its lifespan!
|
Product description The 1RU 920 Audio Power Amplifier from Kramer is a high-performance 200W power amplifier into 70V/100V transformer with balanced, unbalanced stereo, and microphone inputs. This 1RU stereo amplifier provides input level sensitivity adjustments for line and microphone inputs. - 200W single-channel power amplifier
- 70V or 100V amplification
- Balanced, unbalanced, and microphone inputs
- Input level sensitivity adjustment
- Selectable microphone 48V phantom power
- Selectable high-pass filter
In the Box Kramer 920 Audio Power Amplifier (1RU) Power Cord Rack Ears Limited 7-Year Warranty Guides & Manuals udbxsfqffbfqtbccxwrf Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer 920 Audio Power Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Kramer 920 Audio Power Amplifier can be downloaded in PDF format at the link stated below.
Technical parametersKramer 920 Specs | Input | 1 x 5-pin removable terminal block, balanced stereo +4 dBu / 10 kOhms
1 x 3-pin removable terminal block, microphone
1 x RCA L/R, unbalanced stereo | | Output | 1 x 3-pin large terminal block, speaker 70/100 V | | Input Sensitivity | 0.3 V to 1.23 V @ -10 dBu to 4 dBu | | Output Power | 200 W | | Amplifier Type | Class D | | Maximum Voltage Gain | 26 dB | | Bandwidth -3 dB Point | 20 Hz to 20 kHz | | S/N Ratio | -75 dB @ 14 dBu amplification (0.039%) | | Controls | Screw trimmer for line and microphone input sensitivity | | High Pass Filter | When on, frequencies below 120 Hz are attenuated by 12 dB per octave:
-12 dB @ 120 Hz
-24 dB @ 60 Hz
-36 dB @ 30 Hz | | Saturation | Input Saturation: Maximum input level is 3.9 Vpp @ -48 dB | | Audio THD + Noise | 70 V Main Output: -71 dB @ 7.8 dBu amplification
100 V Main Output: -72 dB @ 8.3 dBu amplification | | Audio 2nd Harmonic | 100 - 240 VAC, 50/60 Hz, 480 VA @ 220 V; 330 VA @ 110 V | | Dimensions | 19.00 x 7.25 x 1.75" (48.26 x 18.42 x 4.45 cm) | | Weight | 3.75 lb (1.7 kg) approx. |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 42 owners. Add your rating and experience with the product.
