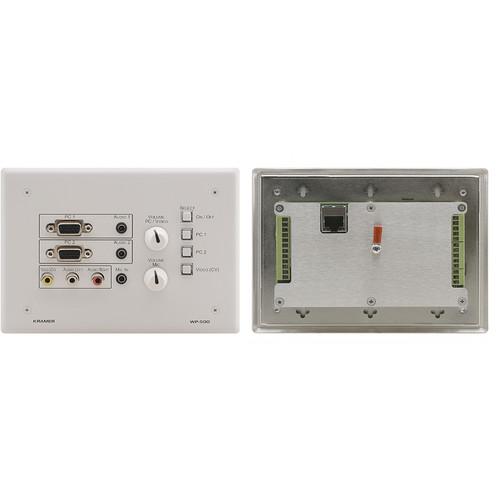

User Manual for Kramer Active Wall Plate Solution for Room Control and Signal Switching Click to enlarge the picture
Contents of the user manual for the Kramer Active Wall Plate Solution for
- Product category: Wall Plates & Installation Boxes Kramer
- Brand: Kramer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kramer Wall Plates & Installation Boxes
|
User manual for the Kramer Active Wall Plate Solution for contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kramer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kramer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kramer product will considerably shorten its lifespan!
|
Product description The Kramer Active Wall Plate Solution for Room Control and Signal Switching allows switching of 3 input sources (computer graphics video, composite video, stereo audio and microphone signals) to a single display.
Front panel connections include 2 computer graphics video on 15-pin HD connectors each with unbalanced stereo on 3.5mm connectors, 1 composite video with unbalanced stereo on RCA connectors, and 1 microphone input on a 3.5mm connector. The rear panel connections on the Active Wall Plate Solution include 1 RGBHV, 1 composite video, and 2 audio outputs on terminal block connectors.
The Active Wall Plate Solution can be controlled via the front panel buttons or IR or bidirectional RS-232 commands. EDID from display devices can be copied and stored via the EDID Capture feature. Additionally, the 3 gang US Wall Plate features programmable buttons that function as changing projector inputs. Kramer Site-CTRL Compatibility allows remote control and management of the device using Kramer Site-CTRL software via the Ethernet port. - Allows switching of 3 input sources (computer graphics video, composite video, stereo audio and microphone signals) to a single display
- Front panel connections - 2 computer graphics video on 15-pin HD connectors, each with unbalanced stereo on 3.5mm connectors, 1 composite video with unbalanced stereo on RCA connectors, and 1microphone input on a 3.5mm connector
- Rear panel connections - 1 RGBHV, 1 composite video, and 2 audio outputs on terminal block connectors
- Control via front panel buttons or IR or bidirectional RS-232 commands
- EDID Capture - copies and stores EDID from display devices
- Programmable buttons for functions such as changing projector inputs
- Kramer Site-CTRL software Compatibility - for remote control and management of the device over the Ethernet port using Kramer Site-CTRL software
In the Box Kramer Active Wall Plate Solution for Room Control and Signal Switching WP-500 Active Wall Plate Solution Kramer K-Config Windows-based Configuration Software Power Cord Screwdriver User Manual 7-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer Active Wall Plate Solution for Room Control and Signal Switching in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKramer WP-500 Specs | Inputs | 1 composite video (1Vpp/75Ω) on an RCA connector,
2 VGA (PC) on 15-pin HD connectors,
2 unbalanced stereo audio on 3.5mm mini jacks,
1 unbalanced audio on 2 RCA connectors,
1 condenser/dynamic microphone on a 3.5mm mini jack | | Outputs | 1 video out 2-pin terminal block connector, 2 audio out 3-pin terminal block connector unbalanced stereo audio, 1 VGA (PC) out 10-pin terminal block connector | | Ports | Ethernet, 1 IR out on terminal block connectors, 1 RS-232 on terminal block connectors, 1 USB connector | | Supported RS-232 Baud Rates | Up to 115200 | | Supported Resolutions | 640x480px60Hz (IBM VGA), 640x480px67Hz (Apple Mac II), 640x480px72Hz (VESA), 640x480px75Hz (VESA), 800x600px56Hz (VESA), 800x 600px60Hz (VESA), 800x600px72Hz (VESA), 800x600px75Hz (VESA), 1024x768px60Hz (VESA), 1024x768px70Hz (VESA), 1024x768px75Hz (VESA), 1280x1024px75Hz (VESA), 1280x1024px60Hz (VESA STD), 1280x960px60Hz (VESA STD), 1400x1050px60Hz (VESA STD), 1440x900px60Hz (VESA STD), 1600x1200px60Hz (VESA STD) | | Controls | Front-panel and RS-232: contrast, brightness, video gain, color, hue, H/V sharpness, H/V chroma-luma shift,
R-Y, B-Y level,
screen splitter (process to bypass),
panel lock | | Indicators | Multi-character display on the front panel | | Power Supply | 12V, 5A | | Dimensions (WxDxH) | 6.38 x 1.32 x 4.49" (16.2 x 3.36 x 11.4cm) | | Options | USB cable 0.91m (3ft), WP-500 installation cable,FC-200 XGA EDID Copier | | Weight (Approx.) | 0.31 lb (0.14 kg) |
