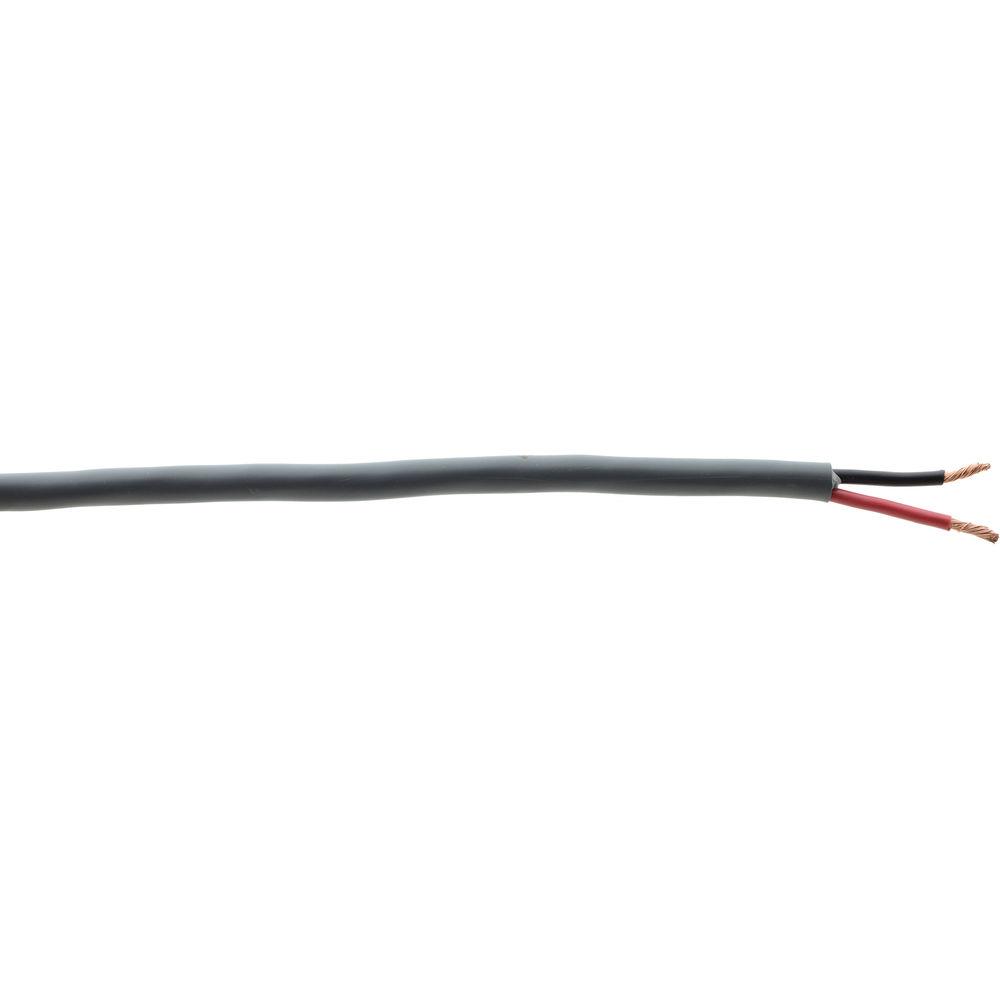

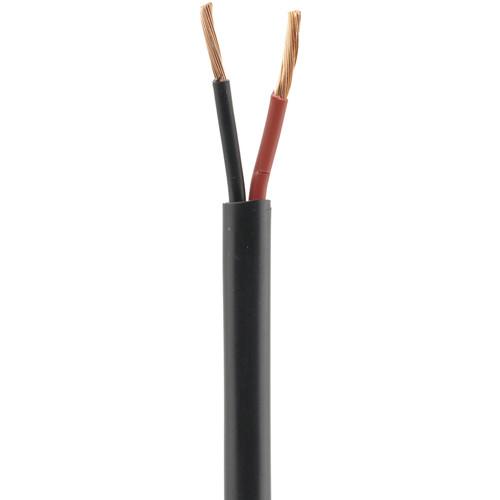

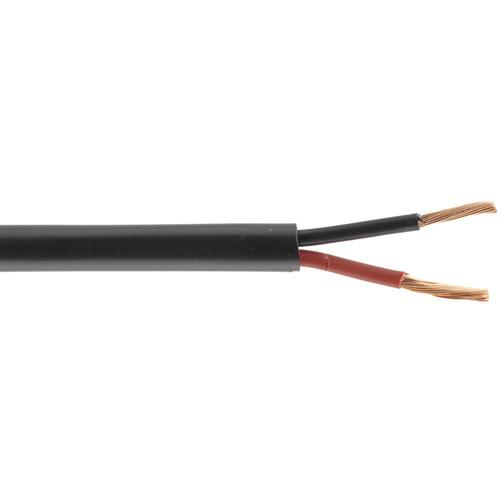

Product description The BC-2S18 (1000') by Kramer is an 18-gauge standard bulk speaker cable used for connecting speakers and amplifiers in security, commercial or residential AV systems. It features a twisted pair of unshielded bare-copper conductors designed to inhibit electromagnetic interference and prevent radiation of signal, and is well-suited for relatively short runs (less than 50'). This UL-certified cable offers a temperature rating of 167°F, and a maximum operating voltage of 300V, and it's protected from the rigors of installation by a rugged gray PVC jacket. -
- 18-gauge twisted-pair cable design
- Rugged PVC jacket
- Rejects electromagnetic interferences
- Well-suited for relatively short runs (less than 50')
- UL certified
- Applications include: monitor detection, control circuits, initiating circuits, notification circuits
In the Box Kramer BC-2S18 18-Gauge Twisted-Pair Speaker Cable (1000') Limited 7-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer BC-2S18 18-Gauge Twisted-Pair Speaker Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKramer BC-2S18-305M Specs | Construction | Conductors: 2
AWG: 18
Stranding: 7 x 26
Conductor Material: Bare copper
Insulation: Polypropylene
Insulation Wall Thickness: 0.008"
Outer Shield Material: Unshielded
Outer Jacket Material: Polyvinyl chloride (PVC)
Outer Jacket Wall Thickness: 0.017"
Outer Jacket Ripcord: Yes | | Electrical | Nom. Inductance: 0.145 μH/ft
Nom. Capacitance Conductor to Conductor: 21.500 pF/ft
Nom. Conductor DC Resistance: 6.5 Ohms / 1000' @ 20°C
Max. Operating Voltage (UL): 300 V RMS
Max. Recommended Current: 5 A per conductor @ 25°C ambient | | Overall | Overall Nominal Diameter: 0.158" (4.0 mm)
Overall Cabling Lay Length & Direction: 3.5" lay length, 3.4 twists/ft
Operating Temperature Range: -4° to 167°F (-20° to +75°C)
UL Temperature Rating: 167°F (75°C)
Max Recommended Pulling Tension: 152 lb (69 kg)
Min Bend Radius / Minor Axis: 2.625" (66.6 mm)
Length: 1000' (304.8 m)
Weight: 53.6 lb (24.31 kg) | | | | Package Weight | 20.15 lb | | Box Dimensions (LxWxH) | 14.2 x 13.1 x 9.4" |
