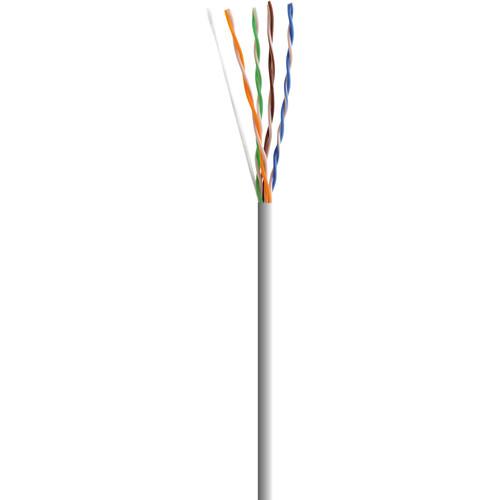

Product description The BCLS-11 (1000') by Kramer is a high-performance Cat 5e U/UTP cable for IT, LAN, and Ethernet installations. Its design exceeds Cat 5e specifications and provides a larger bandwidth than the basic standard cable (sweep frequency up to 350 MHz). The cable is constructed with four pairs of 24-gauge solid bare-copper conductors. The low-smoke zero-halogen jacket emits limited smoke and no halogen when exposed to high sources of heat, protecting people and equipment from toxic and corrosive gas. Other features include an internal rip cord to prevent damage to the individual conductors when stripping off the jacket, sequential markings every meter, and a Reelex II carton to help you easily reel out the cable when deploying it. -
- 4 pairs of 24 AWG solid bare-copper conductors
- Low-smoke zero-halogen jacket for safety
- Exceeds Cat 5e specifications for wider bandwidth
- Sweep frequency up to 350 MHz
- Internal rip cord for additional protection
- Sequential markings every meter
- Reelex II carton for easy pull-out
- Applications include structure cabling for horizontal and building backbone cable, IT, LAN and Ethernet installations, IEEE 802.3u 100BASE-T, 1000BASE-TX and legacy speeds, CDDI/ATM/Token Ring, and IEEE 802.3af (PoE) / IEEE 802.3at (PoE+)
In the Box Kramer BCLS-11 Cat 5e U/UTP Low-Smoke/Zero-Halogen Cable (1000') Limited 7-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer BCLS-11 Cat 5e U UTP Low-Smoke Zero-Halogen Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKramer BCLS-11GY-3 Specs | Construction | Conductor: 4 pairs of 24 AWG solid bare copper
Insulation: Polyolefin (PO) - blue & white / blue stripe, orange & white / orange stripe, green & white / green stripe, brown & white / brown stripe
Twist: Left-hand (conductors), left-hand (assembly)
Rip Cord: Polyester multi-yarn
Jacket: Low-smoke zero halogen (LSZH), gray (Pantone 427C) | | Diameters | Jacket: 0.19 ±0.007" (4.9 ±0.2 mm)
Jacket Thickness: 0.019 ±0.001" (0.50 ±0.05 mm)
Conductors: 0.034 ±0.001" (0.87 ±0.02 mm) | | Electrical | Temperature and Voltage Rating: 60°C @ 300 V
Spark Test: 2.5 kV DC
AC Leakage Current: ≤ 10 mA /1.5 kV AC, through overall jacket
Coupling Attenuation: ≤ 55 dB @ 30 MHz, ≤ 55 dB @ 100 MHz
Conductor DC Resistance: ≤ 9.38 Ohms / 100 m
Resistance Unbalance: ≤ 5%
Dielectric Strength: 1.5 kV AC for 2 sec
Insulation Resistance: ≥ 5000 MOhms/m
Mutual Capacitance: ≤ 5.6 nF / 100 m
Capacitance Unbalance: ≤ 330 pF / 100 m, pair-to-ground
Characteristic Impedance: 100 ±15 Ohms @ 1 to 100 MHz | | Regulatory Performance | ANSI/TIA-568-C.2 (2009): Balanced twisted-pair telecommunications cabling and components standards
ISO/IEC 11801 (Edition 2.2): Information technology, generic cabling for customer premises
IEC 61156-5 (Edition 2.0): Multicore and symmetrical pair/quad cables for digital communications, (part 5: symmetrical pair/quad cables with transmission characteristics up to 1000 MHz), horizontal floor wiring, sectional specification
EN 50288-3-1:2013: Multi-element metallic cables used in analog and digital communication and control, sectional specification for unscreened cables characterized up to 250 MHz, horizontal and building backbone cables | | Regulatory Safety | EN 50173-1:2011: Information technology, generic cabling systems, (part 1: general requirements)
IEC 60332-1-2: Tests on electric and optical-fibre cables under fire conditions, (part 1-2: test for vertical flame propagation for a single insulated wire or cable), procedure for 1 kW pre-mixed flame
IEC 61034-1 / 61034-2: Measurement of smoke density of cables burning under defined conditions
IEC 60754-2: Test on gases evolved during combustion of materials from cables | | Usage & Environmental | Cable Cold Bend: -4°F (-20°C) for 4 hours
Insulation Tensil Strength: 2400 PSI min. (1.69 kg/ m²)
NVP: 71%
Temperature Range / Storage & Shipping: -4° to 140°F (-20° to 60°C)
Temperature Range / Installation: 32° to 140°F (0° to 60°C)
Temperature Range / Operation: -4° to 140°F (-20° to 60°C)
Minimum Bending Radius: ≥ 4 x the overall diameter
Maximum Pulling Tension: ≤ 110 N | | Length | 1000' (305 m) | | | | Package Weight | 22.5 lb | | Box Dimensions (LxWxH) | 14.2 x 13.5 x 9.6" |
