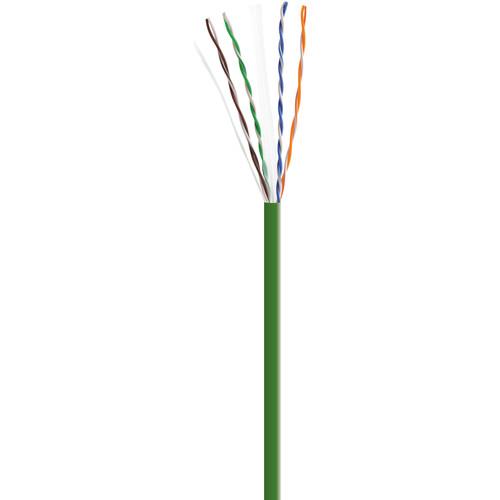

User Manual for Kramer BCLS-23 Cat 6 F UTP Low-Smoke Zero-Halogen Cable with Metal-Foil Screen Click to enlarge the picture
Contents of the user manual for the Kramer BCLS-23 Cat 6 F UTP
- Product category: Bulk Ethernet Cables Kramer
- Brand: Kramer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kramer Bulk Ethernet Cables
|
User manual for the Kramer BCLS-23 Cat 6 F UTP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kramer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kramer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kramer product will considerably shorten its lifespan!
|
Product description The BCLS-23 (1640') by Kramer is a high-performance Cat 6 F/UTP cable for IT, LAN, and Ethernet installations. Its design exceeds Cat 6 specifications and provides a larger bandwidth than the basic standard cable (sweep frequency up to 400 MHz). The cable is constructed with four pairs of 23-gauge solid bare-copper conductors. The low-smoke zero-halogen jacket emits limited smoke and no halogen when exposed to high sources of heat, protecting people and equipment from toxic and corrosive gas. Acting as a shield, an overall metal-foil screen with a drain wire helps further reduce the potential of electromagnetic interference (EMI). Other features include an internal rip cord to prevent damage to the individual conductors when stripping off the jacket, a cross filler to reduce crosstalk, sequential markings every meter, and a fumigated plywood reel. -
- 4 pairs of 23 AWG solid bare-copper conductors
- Low-smoke zero-halogen jacket for safety
- Exceeds Cat 6 specifications for wider bandwidth
- Sweep frequency up to 400 MHz
- Overall metal-foil screen with drain wire
- Internal rip cord for additional protection
- Cross filler for reduced crosstalk
- Sequential markings every meter
- Fumigated plywood reel
- Applications include structure cabling for horizontal and building backbone cable, IT, LAN and Ethernet installations, IEEE 802.3ab 1000BASE-T, 1000BASE-TX and legacy speeds, CDDI/ATM/Token Ring, and IEEE 802.3af (PoE) / IEEE 802.3at (PoE+)
In the Box Kramer BCLS-23 Cat 6 F/UTP Low-Smoke/Zero-Halogen Cable with Metal-Foil Screen (1640') Limited 7-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer BCLS-23 Cat 6 F UTP Low-Smoke Zero-Halogen Cable with Metal-Foil Screen in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKramer BCLS-23GR-5 Specs | Construction | Conductor: 4 pairs of 23 AWG solid bare copper
Insulation: Polyolefin (PO) - blue & white / blue stripe, orange & white / orange stripe, green & white / green stripe, brown & white / brown stripe
Twist: Left-hand
Assembly: Left-hand direction
Rip Shield: Mylar tape
Drain Wire: 24 AWG solid tinned copper
Shield: AI Mylar tape, 100% coverage and Mylar side facing out
Filler: Polyolefin (PO)
Jacket: Low-smoke zero halogen (LSZH), green (Pantone 7732C) | | Diameters | Jacket: 0.28 ±0.007" (7.2 ±0.2 mm)
Jacket Thickness: 0.017 ±0.001" (0.45 ±0.05 mm)
Insulation Blue & White / Blue Stripe: 0.042 ± 0.007" (1.08 ± 0.02 mm)
Insulation Orange & White / Orange Stripe: 0.041 ± 0.007" (1.05 ± 0.02 mm)
Insulation Green & White / Green Stripe: 0.042 ± 0.007" (1.08 ± 0.02 mm)
Insulation Brown & White / Brown Stripe: 0.041 ± 0.007" (1.05 ± 0.02 mm) | | Electrical | Temperature and Voltage Rating: 60°C @ 300 V
Spark Test: 2.5 kVDC
AC Leakage Current: ≤ 10 mA /1.5 kVAC, through overall jacket
Coupling Attenuation: ≤ 55 dB @ 30 MHz, ≤ 47 dB @ 250 MHz
Conductor DC Resistance: ≤ 9.38 Ohms / 100 m
Resistance Unbalance: ≤ 5%
Dielectric Strength: 1.5 kVAC for 2 sec
Insulation Resistance: ≥ 5000 MOhms/m
Mutual Capacitance: ≤ 5.6 nF / 100 m
Capacitance Unbalance: ≤ 330 pF / 100 m, pair-to-ground
Characteristic Impedance: 100 ±15 Ohms @ 1 to 100 MHz | | Regulatory Performance | ANSI/TIA-568-C.2 (2009): Balanced twisted-pair telecommunications cabling and components standards
ISO/IEC 11801 (Edition 2.2): Information technology, generic cabling for customer premises
IEC 61156-5 (Edition 2.0): Multicore and symmetrical pair/quad cables for digital communications, (part 5: symmetrical pair/quad cables with transmission characteristics up to 1000 MHz), horizontal floor wiring, sectional specification)
EN 50288-6-1:2013: Multi-element metallic cables used in analog and digital communication and control, (part 6-1: sectional specification for unscreened cables characterized up to 250 MHz), horizontal and building backbone cables | | Regulatory Safety | IEC 60332-1-2: Tests on electric and optical fibre cables under fire conditions, (part 1-2: test for vertical flame propagation for a single insulated wire or cable), procedure for 1 kW pre-mixed flame
IEC 61034-1 / 61034-2: Measurement of smoke density of cables burning under defined conditions
IEC 60754-2: Test on gases evolved during combustion of materials from cables | | Usage & Environmental | Cable Cold Bend: -4°F (-20°C) for 4 hours
Insulation Tensile Strength: 2400 PSI min. (1.69 kg/m²)
NVP: 69%
Temperature Range / Storage & Shipping: -4° to 140°F (-20° to 60°C)
Temperature Range / Installation: 32° to 140°F (0° to 60°C)
Temperature Range / Operation: -4° to 140°F (-20° to 60°C)
Minimum Bending Radius: ≥ 4 x the overall diameter
Maximum Pulling Tension: ≤ 110 N | | Length | 1640' (500 m) | | | | Package Weight | 67.95 lb | | Box Dimensions (LxWxH) | 18.0 x 18.0 x 13.0" |
