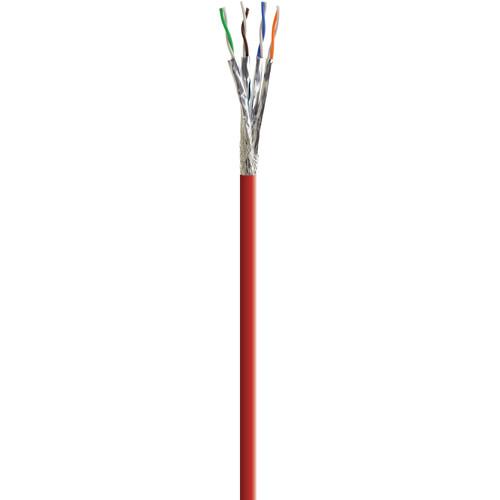

Product description The BCLS-45 (1640') by Kramer is a high-performance Cat 7 S/FTP cable for IT, LAN, and Ethernet installations. Its design exceeds Cat 7 specifications and provides a larger bandwidth than the basic standard cable (sweep frequency up to 750 MHz). The cable is constructed with four pairs of 23-gauge solid bare-copper conductors. The low-smoke zero-halogen jacket emits limited smoke and no halogen when exposed to high sources of heat, protecting people and equipment from toxic and corrosive gas. It also features sequential markings every meter. To further help reduce the potential for electromagnetic interference (EMI), each pair is individually shielded with a metal-foil screen, and the entire cable is shielded with a tinned-copper braid. The BCLS-45 comes packed on a fumigated plywood reel. -
- 4 pairs of 23 AWG solid bare-copper conductors
- Low-smoke zero-halogen jacket for safety
- Exceeds Cat 7 specifications for wider bandwidth
- Sweep frequency up to 750 MHz
- Each pair is individually shielded with a metal-foil screen
- Entire cable is shielded with a tinned-copper braid
- Sequential markings every meter
- Fumigated plywood reel
- Applications include structure cabling for horizontal and building backbone cable, IT, LAN and Ethernet installations, IEEE 802.3ab 1000BASE-T, 1000BASE-TX and legacy speeds, CDDI/ATM/Token Ring, and IEEE 802.3af (PoE) / IEEE 802.3at (PoE+)
In the Box Kramer BCLS-45 Cat 7 S/FTP Low-Smoke/Zero-Halogen Cable with Metal-Foil Screen & Braid Wire (1640') Limited 7-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer BCLS-45 Cat 7 S FTP Low-Smoke Zero-Halogen Cable with Metal-Foil Screen & Braid Wire in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKramer BCLS-45RD-5 Specs | Construction | Conductor: 4 pairs of 23 AWG solid bare copper
Insulation: Polyolefin (PO) – blue & white, orange & white, green & white, brown & white
Twist: Left-hand
Assembly: Left-hand direction
Shield: All Mylar tape, 100% coverage, and aluminum side facing out
Jacket: Low-smoke zero halogen (LSZH), red (Pantone 1797C) | | Diameters | Jacket: 0.30 ±0.007" (7.7 ±0.2 mm)
Jacket Thickness: 0.019 ±0.001" (0.50 ±0.05 mm)
Insulation Blue & White / Blue Stripe: 0.052 ± 0.007" (1.33 ± 0.02 mm)
Insulation Orange & White / Orange Stripe: 0.051 ± 0.007" (1.30 ± 0.02 mm)
Insulation Green & White / Green Stripe: 0.052 ± 0.007" (1.33 ± 0.02 mm)
Insulation Brown & White / Brown Stripe: 0.051 ± 0.007" (1.30 ± 0.02 mm) | | Electrical | Temperature and Voltage Rating: 60°C @ 300 V
Spark Test: 2.5 kVDC
AC Leakage Current: ≤ 10 mA /1.5 kVAC, through overall jacket
Conductor DC Resistance: ≤ 9.38 Ohms / 100 m
Resistance Unbalance: ≤ 5%
Dielectric Strength: 1.5 kVAC for 2 sec
Insulation Resistance: ≥ 5000 MOhms/m
Mutual Capacitance: ≤ 5.6 nF / 100 m
Capacitance Unbalance: ≤ 160 pF / 100 m, pair-to-ground
Characteristic Impedance: 100 ±15 Ohms @ 1-100 MHz | | Regulatory Performance | ISO/IEC 11801 (Edition 2.2): Information technology, generic cabling for customer premises
IEC 61156-5 (Edition 2.0): Multicore and symmetrical pair/quad cables for digital communications, (part 5: symmetrical pair/quad cables with transmission characteristics up to 1000 MHz), horizontal floor wiring, sectional specification
EN 50288-6-1:2013: Multi-element metallic cables used in analog and digital communication and control, (part 6-1: sectional specification for unscreened cables characterized up to 250 MHz), horizontal and building backbone cables | | Regulatory Safety | IEC 50173-1:2011: Information technology, generic cabling systems, (part 1: general requirements)
IEC 60332-1-2: Tests on electric and optical fiber cables under fire conditions, (part 1-2: test for vertical flame propagation for a single insulated wire or cable), procedure for 1 kW pre-mixed flame
IEC 61034-1 / 61034-2: Measurement of smoke density of cables burning under defined conditions
IEC 60754-2: Test on gases evolved during combustion of materials from cables | | Usage & Environmental | Cable Cold Bend: -4°F (-20°C) for 4 hours
Insulation Tensile Strength: 2400 PSI min. (1.69 kg/m²)
NVP: 67%
Temperature Range / Storage & Shipping: -4° to 140°F (-20° to 60°C)
Temperature Range / Installation: 32° to 140°F (0° to 60°C)
Temperature Range / Operation: -4° to 140°F (-20° to 60°C)
Minimum Bending Radius: 4 x the overall diameter
Maximum Pulling Tension: 110 N | | Length | 1640' (500 m) | | | | Package Weight | 73.1 lb | | Box Dimensions (LxWxH) | 15.6 x 12.7 x 11.5" |
