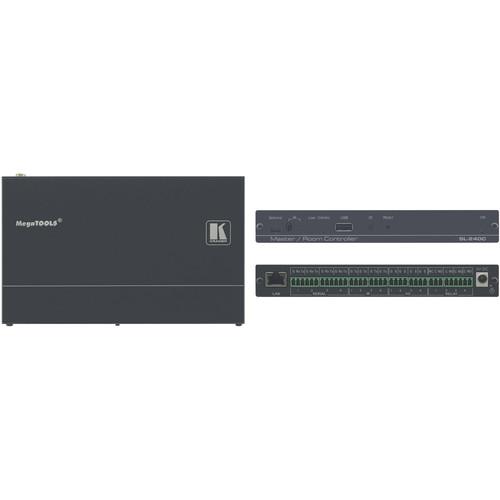

User Manual for Kramer Compact 16-Port Master Room Controller with PoE Click to enlarge the picture
Contents of the user manual for the Kramer Compact 16-Port Master Room Controller
- Product category: Router, Switcher & Patchbay Accessories Kramer
- Brand: Kramer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kramer Router, Switcher & Patchbay Accessories
 |
User manual for the Kramer Compact 16-Port Master Room Controller contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kramer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kramer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kramer product will considerably shorten its lifespan!
|

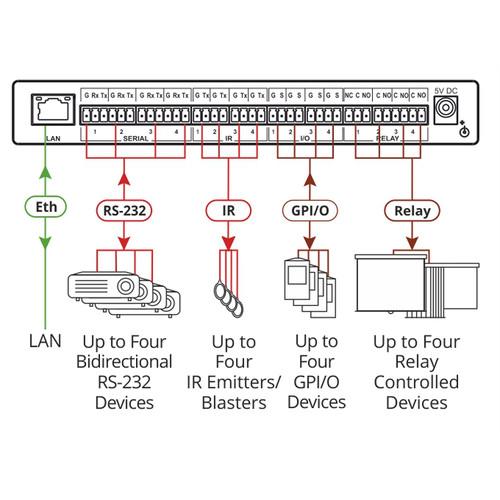

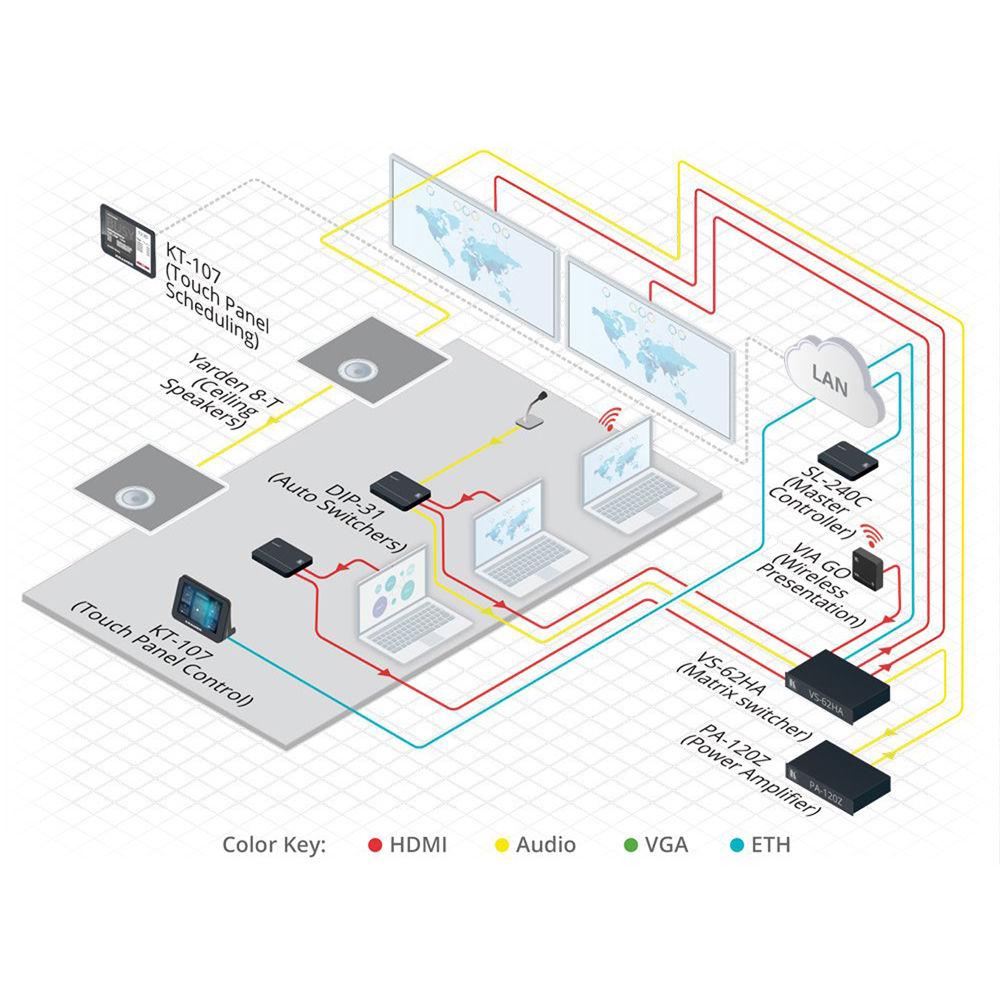

Product description The Compact 16-Port Master/Room Controller from Kramer can operate over Ethernet with control interfaces including: four bidirectional RS-232, four IR, four GPI/O, and four relays. It controls devices such as scalers, video displays, audio amplifiers, Blu-ray players, sensors, screens, shades, door locks, and lights. Multiple Kramer Ethernet control gateways can be used to add remote I/O ports. - Space controller controls AV devices/displays
- High-performance architecture enables a scalable and flexible programming platform
- Four RS-232 ports control devices via bidirectional serial control protocols
- Four IR emitter and one IR receiver ports control devices via IR control protocols and learn commands from IR remotes
- Four GPI/O ports control devices via general purpose I/O ports, program configured as digital input, digital output, or analog input interface for controlling sensors, door locks, audio volume and lighting control devices
- Four relay ports control devices via relay contact closure, such as opening and closing drapes, shades, blinds, and projection screen scrolling
- Resilient powering with PoE and optional PSU (available separately)
- Network Support: 10/100/1000 Mb/s Ethernet
- LED indicators for I/O port state and system status
- Software Management Support: Kramer Control, API
In the Box Kramer Compact 16-Port Master/Room Controller with PoE Limited 7-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer Compact 16-Port Master Room Controller with PoE in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKramer SL-240C Specs | Bi-Directional I/O | 4 x RS-232 serial on 3-pin terminal blocks
4 x GPI/O on 2-pin terminal blocks
1 x RJ45, Ethernet
1 x mini-USB for firmware upgrade | | Input | 1 x IR sensor | | Outputs | 4 x IR outputs
4 x relays on 2-pin terminal block connectors | | Indicators | LED indicator for each port and function | | Processor Speed | 1 GHz | | Memory | 512 MB RAM, 4 GB Flash | | Power Consumption | 5 VDC, 2 A | | Power Source | PoE | | Dimensions | 7.4 x 4.5 x 1.0" / 18.8 x 11.5 x 2.5 cm | | Weight | 1 lb / 454 g | | | | Package Weight | 2.15 lb | | Box Dimensions (LxWxH) | 13.6 x 6.7 x 2.3" |
