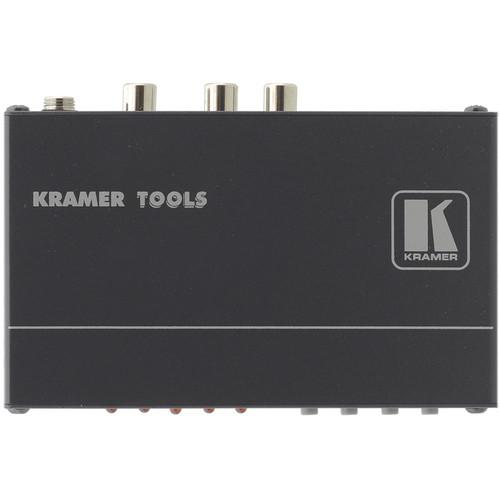

Product description The Kramer Composite Video & Stereo-Audio to HDMI Scaler is used to scale a composite video signal, and embeds audio and converts it to a high quality HDMI signal. Featuring 2 RCA connectors for composite video and stereo audio inputs, the scaler provides HDMI output with 480p, 576p, 720p, and 1080i/p resolutions. It features front panel control options with on-screen display for fine tuning video properties for a high quality display. A built-in ProcAmp allows you to vary features such as color, sharpness, brightness, contrast, etc. In addition, 3 units can be mounted side-by-side in 1U rack space with the optional RK-3T rack adaptor. - Used to scale a composite video signal
- Embeds audio and converts it to a high quality HDMI signal

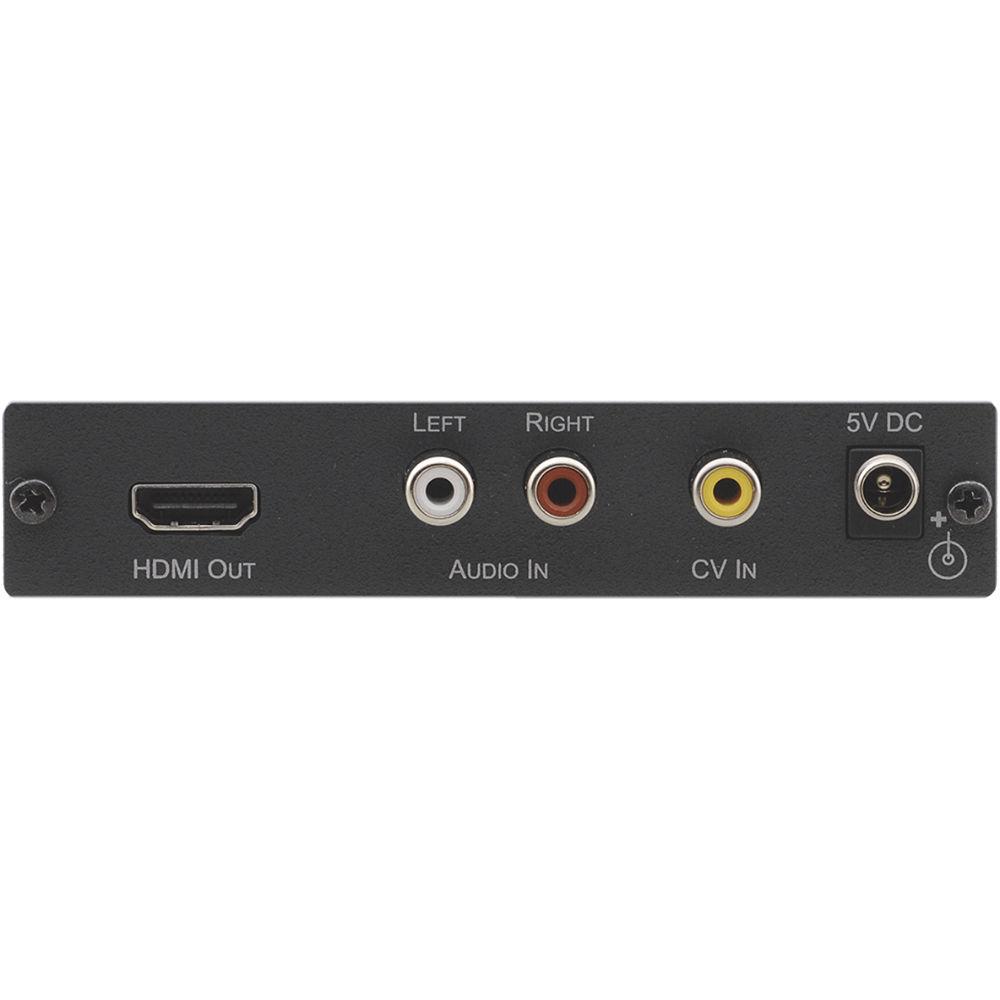

- Features 2 RCA connectors for composite video and stereo audio inputs
- Provides HDMI output with resolutions up to 1080i/p

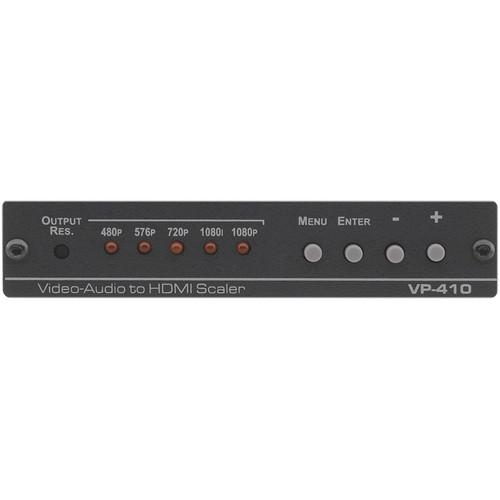

- Features front panel control options with on-screen display for fine tuning video properties
- Allows you to vary features such as color, sharpness, brightness, contrast, etc.
- 3 units can be mounted side-by-side in 1U rack space with the optional RK-3T rack adaptor
- Ideal for projection systems in conference rooms, boardrooms, hotels and churches, and for home theater up-scaling
In the Box Kramer Composite Video & Stereo-Audio to HDMI Scaler Power Supply Limited 7-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer Composite Video & Stereo-Audio to HDMI Scaler in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKramer VP-410 Specs | Input | 1 composite video (1Vpp/75Ω) on an RCA connector
1 unbalanced stereo audio (1Vpp/47kΩ) stereo on RCA connectors | | Output | 1 HDMI | | Output Resolutions | HDTV: 480p, 576p, 720p, 1080i, 1080p | | Output Refresh Rate | 60Hz for computer graphics resolutions, 50/60Hz for HDTV resolutions | | Processing Delay | 2 frames | | Controls | Front panel buttons for output resolution and menu driven OSD control | | Additional Controls | Contrast, brightness, saturation, hue, auto sync, aspect ratio, over scanning, noise reduction | | Power Source | 5V DC, 430mA | | Dimensions (WxDxH) | 4.72 x 2.72 x 0.94" (12 x 6.9 x 2.4 cm) | | Weight | 0.88 lb (0.4 kg) | | | | Package Weight | 1.15 lb | | Box Dimensions (LxWxH) | 9.1 x 4.8 x 3.4" |
