User Manual for Kramer Computer Graphics Video & HDTV Digital Scaler Click to enlarge the picture
Contents of the user manual for the Kramer Computer Graphics Video & HDTV
- Product category: Signal Converters Kramer
- Brand: Kramer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kramer Signal Converters
 |
User manual for the Kramer Computer Graphics Video & HDTV contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kramer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kramer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kramer product will considerably shorten its lifespan!
|

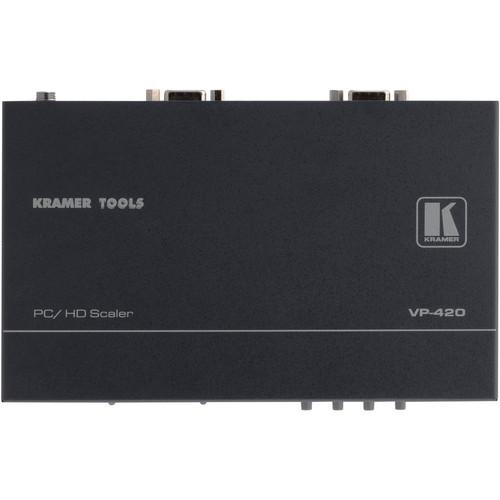

Product description The Kramer Computer Graphics Video & HDTV Digital Scaler is used to scale up or down computer graphics and HDTV signals to a maximum resolution up to WUXGA & 1080p. The scaler is ideal for home theater up-scaling and projection systems in conference rooms, boardrooms, hotels, and churches. Compatible with HDTV component signals, the unit uses the Kramer CGM/3RVF breakout cable. The digital scaler features an on-screen display accessible via the front panel buttons for easy set-up and adjustment. Digital noise reduction eliminates the noise from a signal, and the non-volatile memory retains the last setting used. The built-in ProcAmp adjusts color, sharpness, brightness, contrast, and hue. With an external 5V DC source, you can also use the scaler for field operation. The optional RK-T2B rack adaptor allows you to mount 2 units side-by-side in a 1U rack space. - Scales the input up or down to a selectable computer graphics video or HDTV output signal
- Maximum resolution - WUXGA & 1080p
- Multiple formats - supports component (YPbPr) and VGA inputs and outputs

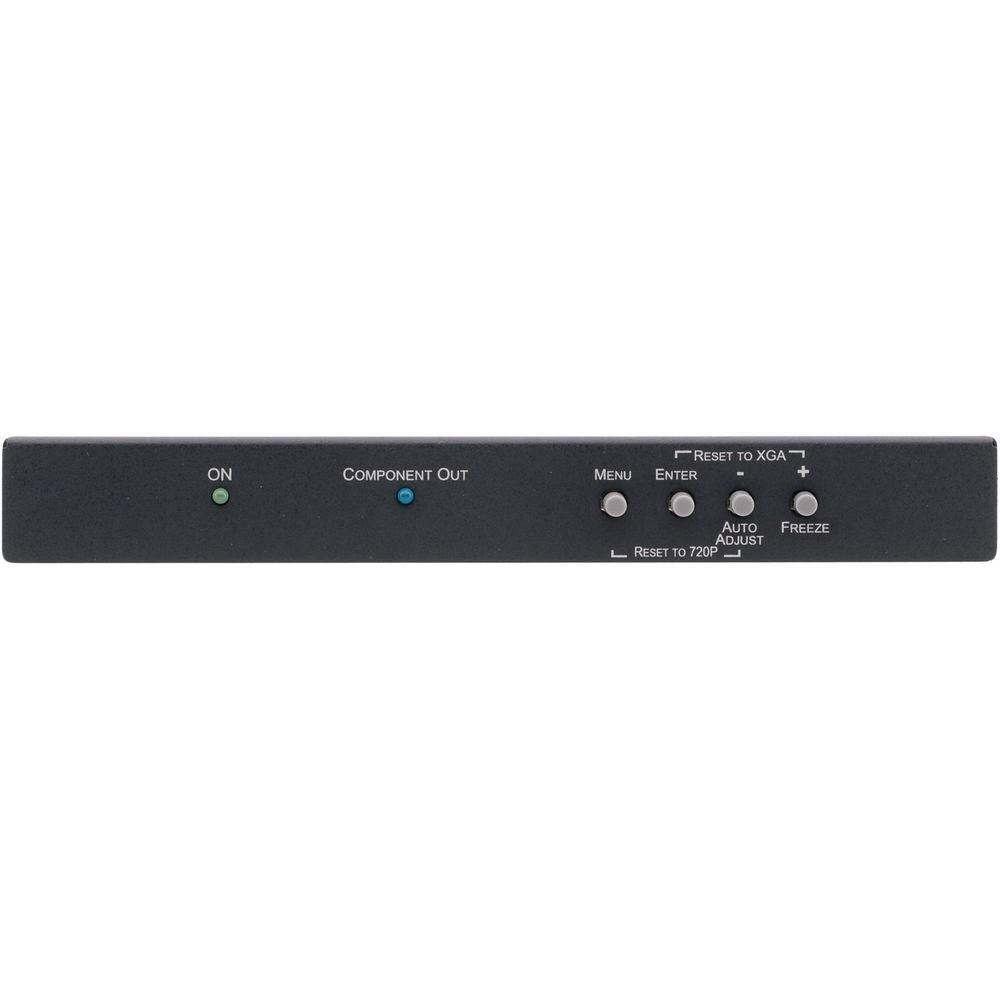

- On-screen display for easy set-up and adjustment, accessible via the front-panel buttons
- Digital noise reduction eliminates the noise from a signal
- Non-volatile memory retains the last settings used
- Built-in ProcAmp for convenient signal adjustment
- Compact - 2 amps fit in a 1U rack space with the optional RK-T2B rack adaptor
- Quick auto-adjust and freeze button
- RGBHV or component video input and/or output
In the Box Kramer Computer Graphics Video & HDTV Digital Scaler Power Supply Limited 7-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer Computer Graphics Video & HDTV Digital Scaler in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

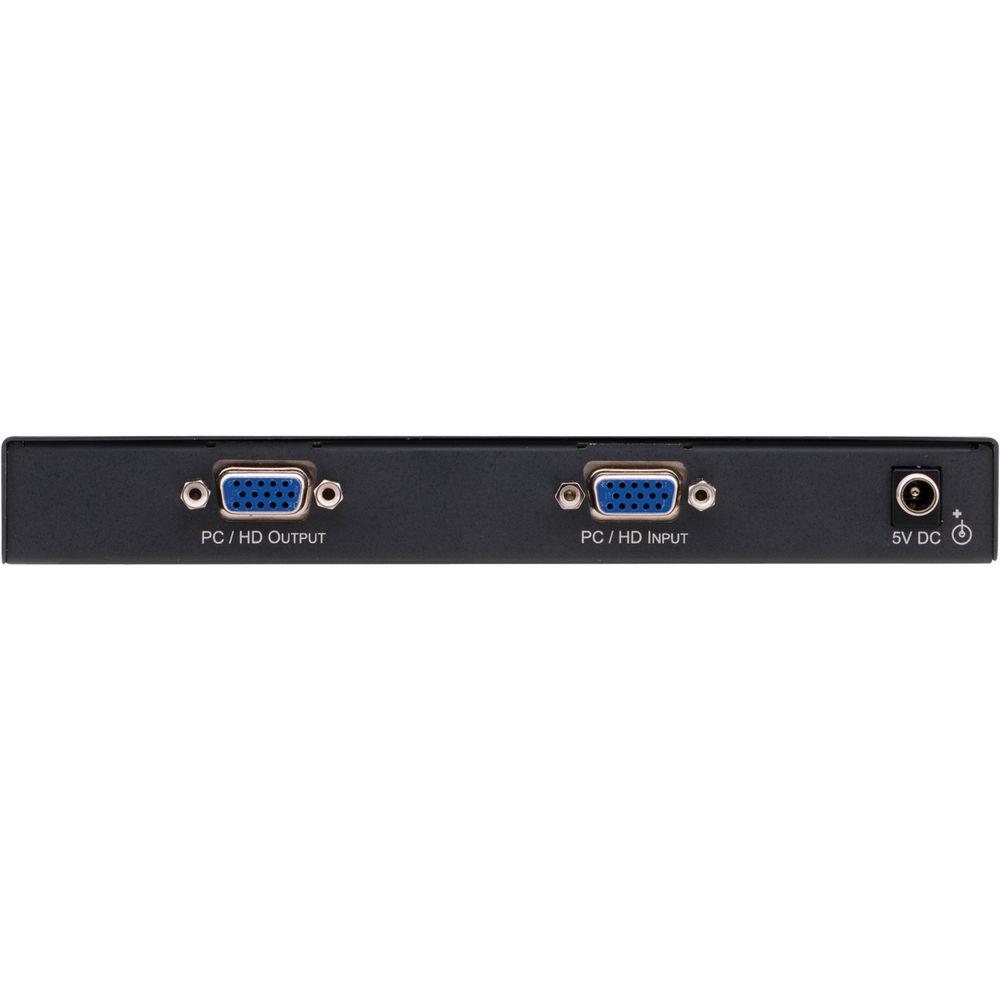

Technical parametersKramer VP-420 Specs | Input | 1 PC/HD on a 15 pin HD connector | | Output | 1 PC/HD on a 15-pin HD connector, RGBHV/YPbPr | | Output Resolution | PC: VGA, SVGA, XGA, 1280x800, UXGA, SXGA, WXGA, SXGA+, WXGA+, WSXGA, WUXGA
HDTV: 480p, 576p, 720p @50/60Hz, 1080p @50/60Hz, 1080i @50/60Hz | | Refresh Rate | 60Hz for computer graphics resolutions, 50/60Hz for HDTV resolutions | | Delay | Processing Delay: 3 frames | | Controls | Front panel buttons, ON and component output LEDs | | Option | RK-T2B 19" rack adapter | | Power Requirements | 5VDC, 800mA | | Dimensions (WxDxH) | 8.5 x 6.4 x 1.7" (216 x 163 x 43mm) | | Weight | 1.5 lbs (0.7kg) | | | | Package Weight | 1.8 lb | | Box Dimensions (LxWxH) | 13.5 x 8.6 x 2.8" |
