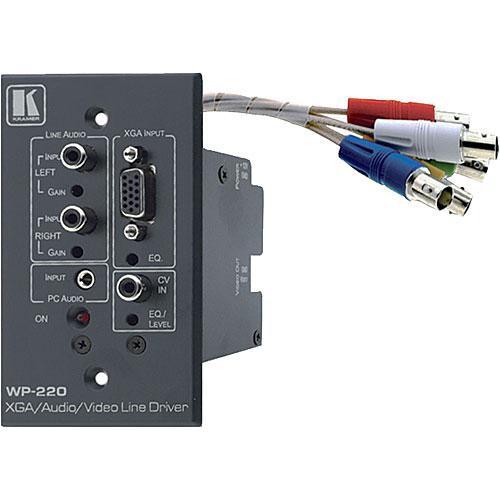

Product description The WP-220-GRAY Computer Graphics & Video Line Amplifier with Audio & Wall Plate from Kramer is a line driver designed for use with computer graphics video signals ranging in resolution from VGA to UXGA and higher and composite video. It will also support stereo audio with either signal type. The unit provides controls to compensate for signal losses inherent in long cable runs. This solution features a wall-plate form factor, allowing you to install it virtually anywhere for quick and easy access to control your equipment.This device is HDTV compatible. It includes advanced sync processing to ensure compatibility with a wide range of computers. Other features include level (gain) and EQ (peaking) controls and audio level controls for left and right stereo. - Transmitter
- This unit provides controls to compensate for signal losses inherent in long cable runs and is compatible with computer graphics video, composite video, and stereo audio signals.
- Wall Plate
- It features a wall-plate form factor, allowing you to install it virtually anywhere for quick and easy access.
- HDTV
- This device is HDTV compatible.
- Sync Functionality
- It includes advanced sync processing to ensure compatibility with a wide range of computers.
- Controls
- This unit offers level (gain) and EQ (peaking) controls, as well as audio controls.
In the Box Kramer Computer Graphics & Video Line Amp w/Audio & Wall Plate (Gray) Line Driver Power Supply Seven-Year Warranty Against Defects in Material & Workmanship Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer Computer Graphics & Video Line Amp w Audio & Wall Plate in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKramer WP-220-GRAY Specs | Construction | Metal | | Finish | Black | | Input | (1) XGA analog red, green, blue signals, 0.7Vpp/75 ohms, H and V sync, TTL level, on 15-pin HD F connector
(1) composite video 1Vpp/75 ohms on an RCA connector
(1) PC unbalanced stereo audio on a 3.5mm mini jack
(1) unbalanced stereo line audio on RCA connectors | | Output | (1) RGBHV on 5 BNC connectors, 0.7Vpp/75 ohms, RGB TTL level syncs
(1) composite video 1Vpp/75 ohms on (2) pins | | Output Level | Video: 2Vpp (maximum)
Audio: 7Vpp (maximum) | | Bandwidth | XGA:500MHz, fully loaded
CV: 490MHz, fully loaded
Audio: 100kHz | | Differential Gain | XGA: 0.07%
CV: 0.05% | | Differential Phase | XGA: 0.04°
CV: 0.05° | | K-Factor | XGA: 0.1%
CV: <0.05% | | Signal-to-Noise Ratio | XGA: 75.1dB
CV: 76.7dB
Audio: 76.7dB | | Crosstalk | XGA: 63.6dB
CV: 64.5dB
Audio: -91dB | | Controls | XGA EQ: 0dB to +4.5dB @ 50MHz
CV Level: -1.2dB to +6dB
CV EQ: 0dB to +1.4dB @ 4.43MHz
Audio Line Level: -70dB to +6.2dB | | Coupling | XGA: DC
CV: DC
Audio: AC at input; DC at output | | THD & Noise | 0.028% | | 2nd Harmonic | 0.012% | | Power | 12VDC, 145mA | | Dimensions (HxWxD) | 4.49 x 2.72 x 1.97" (11.4 x 6.9 x 5cm) | | Weight | 0.67 lbs (0.3kg) |
