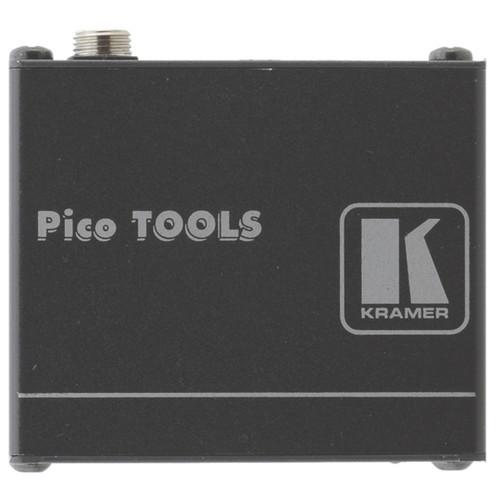

Product description The Kramer Computer Graphics Video over Twisted Pair Line Equalizer is used to provide compensation for signals arriving at a switcher or other devices in between a twisted pair transmitter and receiver. Providing level and equalization controls, the equalizer ensures transmission of error-free signals.
Offering a transmission distance of up to 320’ (100m), the PT-100 provides the ability to extend signals up to 640’ (200m) when placed halfway between the twisted pair transmitter and receiver. The equalizer requires a 12V DC power supply (included) for operation; when either the transmitter or the receiver is within 150’ (50m) of the extender, a single connection to either device powers the extender. In addition, 4 units can be mounted side-by-side in 1U rack space with the optional RK-4PT rack adaptor. - Used to provide compensation for signals arriving at a switcher or other devices in between a twisted pair transmitter and receiver
- Level and equalization controls
- Transmission of error-free signals
- Transmission distance of up to 320' (100m)
- Extends transmission distance up to 640' (200m) when placed halfway between the twisted pair transmitter and receiver
- Requires a 12V DC power supply (included) for operation
- Power Connect System - when either the transmitter or the receiver is within 150' (50m) of the extender, a single connection to the either device powers the device
- 4 units can be mounted side-by-side in 1U rack space with the optional RK-4PT rack adaptor
In the Box Kramer Computer Graphics Video over Twisted Pair Line Equalizer Power Supply Rack Ears 7-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer Computer Graphics Video over Twisted Pair Line Equalizer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKramer PT-100 Specs | Input | 1 CAT 5 on an RJ-45 connector | | Output | 1 CAT 5 on an RJ-45 connector | | Resolution | Up to WUXGA and 1080p | | S/N Ratio | Video: 58dB unweighted, 68.3dB @5MHz weighted
Audio: less than -80dB | | Controls | Equalization and level trimmers | | Coupling | AC | | Power Source | 12V DC, 900mA | | Dimensions (WxDxH) | 2.44 x 1.97 x 0.94" (6.2 x 5 x 2.4 cm) | | Weight | 0.44 lb (0.2 kg) |
