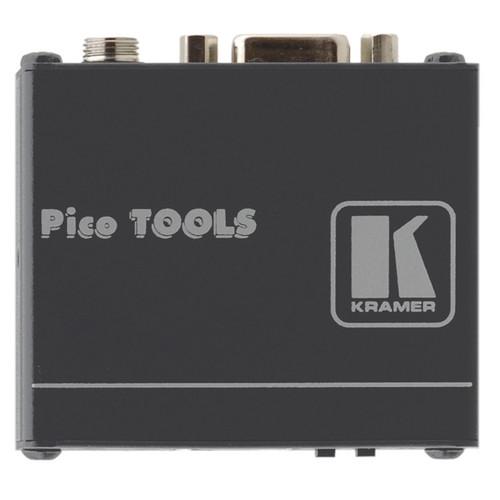

User Manual for Kramer Computer Graphics Video over Twisted Pair Transmitter with EDID Click to enlarge the picture
Contents of the user manual for the Kramer Computer Graphics Video over Twisted
- Product category: KVM Extenders Kramer
- Brand: Kramer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kramer KVM Extenders
|
User manual for the Kramer Computer Graphics Video over Twisted contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kramer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kramer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kramer product will considerably shorten its lifespan!
|
Product description The Kramer Computer Graphics Video over Twisted Pair Transmitter with EDID sends computer graphic signals up to WUXGA & 1080p via a twisted pair cable. When used with a compatible receiver, the transmitter can send signals up to 320’ (100m).
With EDID capture, the twisted pair transmitter copies and stores EDID information and avoids compatibility issues with the connected display if any in the future. It features sync polarity settings, which offers H & V switches for improved display compatibility at the Cat5 output. The transmitter requires a 12V DC power supply (included) for operation. Power Connect System allows both the transmitter and the receiver to be powered with a single connection when the units are within 150’ (50m) of each other. In addition, 4 units can be mounted side-by-side in 1U rack space with the optional RK-4PT rack adaptor. - Used to send computer graphic signals up to WUXGA & 1080p via a twisted pair cable
- Transmission distance - up to 320' (100m)
- EDID capture - copies and stores EDID information and avoids compatibility issues with the connected display if any in the future
- Features sync polarity settings which offers H & V switches for improved display compatibility at the Cat5 output
- Requires a 12V DC power supply (included) for operation
- Power Connect System - allows both the transmitter and the receiver to be powered with a single connection when the units are within 150' (50m) of each other
- 4 units can be mounted side-by-side in 1U rack space with the optional RK-4PT rack adaptor
In the Box Kramer Computer Graphics Video over Twisted Pair Transmitter with EDID Power Supply 7-Years Warranty User Manual PDF 3.6mbeucbvuvwtxfctuctqsfdxdz Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer Computer Graphics Video over Twisted Pair Transmitter with EDID in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKramer PT-110EDID Specs | Input | 1 VGA/UXGA on a 15-pin HD connector | | Output | 1 RJ-45 line output connector | | Resolution | Up to UXGA | | S/N Ratio | 69dB (worst case) | | Coupling | AC | | Power Source | 12V DC, 60mA | | Dimensions (WxDxH) | 2.36 x 2.56 x 1" (6 x 6.5 x 2.5 cm) | | Weight | 0.31 lb (0.14 kg) | | | | Package Weight | 0.95 lb | | Box Dimensions (LxWxH) | 6.9 x 4.8 x 3.5" |
