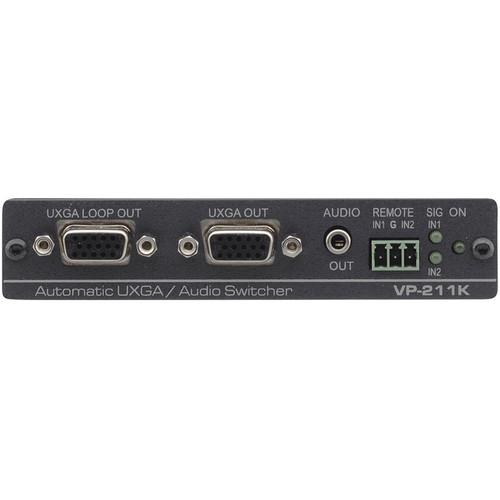

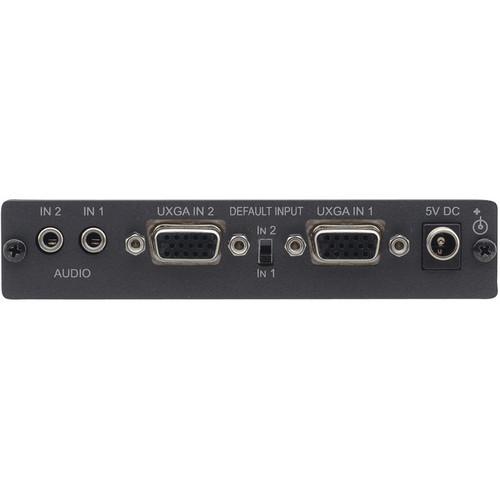

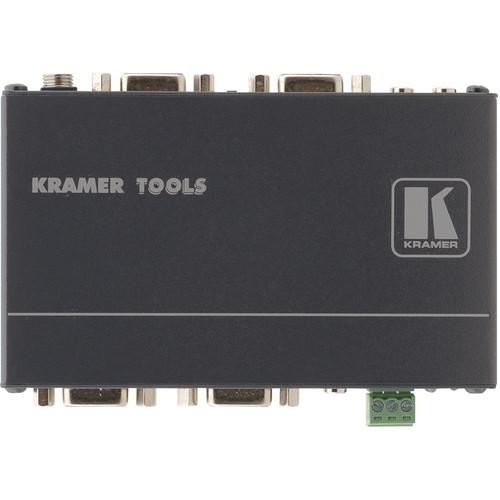

User Manual for Kramer Computer Graphics Video & Stereo Audio Standby Switcher Click to enlarge the picture
Contents of the user manual for the Kramer Computer Graphics Video & Stereo
- Product category: Routers & Switchers Kramer
- Brand: Kramer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kramer Routers & Switchers
 |
User manual for the Kramer Computer Graphics Video & Stereo contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kramer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kramer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kramer product will considerably shorten its lifespan!
|
Product description The Kramer Computer Graphics Video & Stereo Audio Standby Switcher (2 x 1) switches primary input to secondary input on loss of primary input. It is compatible with computer graphics video signals that have resolutions up to and exceeding UXGA, and unbalanced stereo audio signals. The switcher has a bandwidth of 300MHz (-3db). In addition to a looping input, the switcher has a selectable primary input. It has active input LED indicators, and automatic and contact closures for controlling the switcher. The compact size (4.76 x 2.83 x 0.95" / 12.1 x 7.18 x 2.42 cm) allows 3 units of the switcher to be rack-mounted side-by-side in a 1U rack space with the optional RK-3TR rack adaptor. - Switches primary input to secondary input on loss of primary input
- Compatible with computer graphics video signals that have resolutions up to and exceeding UXGA, and unbalanced stereo audio signals
- Bandwidth - 300MHz (-3db)
- Looping input and selectable primary input
- Active input LED indicators
- Automatic and contact closures for controlling the switcher
- Compact size - 4.76 x 2.83 x 0.95" / 12.1 x 7.18 x 2.42 cm
- 3 units can be rack-mounted side-by-side in a 1U rack space with the optional RK-3TR rack adaptor
In the Box Kramer Computer Graphics Video & Stereo Audio Standby Switcher (2 x 1) 7-year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer Computer Graphics Video & Stereo Audio Standby Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKramer VP-211K Specs | Inputs | 2 computer graphics video on 15-pin HD connectors;2 unbalanced stereo audio on 3.5mm mini jacks | | Outputs | 1 computer graphics video on a 15-pin HD connector; 1 computer graphics video looping on a 15-pin HD connector;1 unbalanced stereo audio on a 3.5mm mini jack. | | Maximum Output Level | Video: 1.6Vpp; Audio: >10.5Vpp | | Bandwidth | Video: 300MHz; Audio: >100kHz | | Differential Gain | 0.03% | | Differential Phase | 0.03Deg | | K-Factor | <0.05% | | S/N Ratio | Video: 71dB; Audio: 71dB weighted | | Crosstalk | Video: -59dB @5MHz; Audio: <-66dB @1kHz | | CONTROLS | Contact closure remote control, input default selection switch | | Coupling | DC | | Power Source | 5V DC 200mA | | Power Source | 5V DC 200mA | | Dimensions | 4.76 x 2.83 x 0.95" / 12.1 x 7.18 x 2.42cm) | | Weight | 0.3kg (0.66lbs) approx | | Accessories | Power supply, mounting bracket | | Options | RK-3T 19" rack adaptor | | | | Package Weight | 1.2 lb | | Box Dimensions (LxWxH) | 9.1 x 4.9 x 3.4" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 79 owners. Add your rating and experience with the product.
