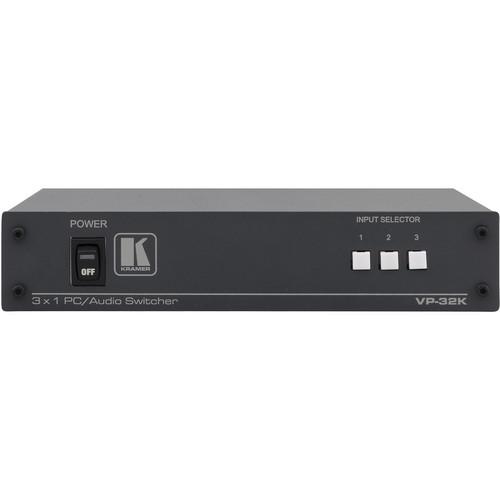

User Manual for Kramer Computer Graphics Video & Stereo Audio Switcher Click to enlarge the picture
Contents of the user manual for the Kramer Computer Graphics Video & Stereo
- Product category: Routers & Switchers Kramer
- Brand: Kramer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kramer Routers & Switchers
|
User manual for the Kramer Computer Graphics Video & Stereo contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kramer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kramer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kramer product will considerably shorten its lifespan!
|
Product description The Kramer Computer Graphics Video & Stereo Audio Switcher (3x1:2) switches any 1 of the 3 inputs to 2 identical outputs. It is compatible with HDTV, computer graphics video signals that have resolutions up to and exceeding UXGA and balanced stereo audio. The unit has a high-bandwidth (420MHz).
Provided with Kr-isp Advanced Sync Processing, the Computer Graphics Video & Stereo Audio Switcher offers a restoring sync signal that makes it compatible with computers that have low-sync level. With front panel & contact closure, you can easily control the switcher functions. Being compact (8.45 x 7 x 1.72" / 21.46 x 18 x 4.36 cm), 2 units of the switcher can be rack-mounted side-by-side in a 1U rack space with the optional RK-1 adaptor. - Any 1 of the 3 inputs to 2 identical outputs
- Compatible with HDTV, computer graphics video signals that have resolutions up to and exceeding UXGA and balanced stereo audio
- Kr-isp Advanced Sync Processing - offers a restoring sync signal that makes it compatible with computers that have low-sync level
- Front panel & contact closure allows you to control the switcher functions
- Compact - 8.45 x 7 x 1.72" / 21.46 x 18 x 4.36 cm
- 2 units can be rack-mounted side-by-side in a 1U rack space with the optional RK-1 adaptor
In the Box Kramer Computer Graphics Video & Stereo Audio Switcher (3x1:2) 7-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer Computer Graphics Video & Stereo Audio Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKramer VP-32K Specs | Inputs | 3 UXGA on 15-pin HD connectors; 3 balanced stereo audio 10kΩ on 5-pin terminal block connectors | | Outputs | 2 UXGA on 15-pin HD connectors; 2 balanced stereo audio on 5-pin terminal block connectors | | Maximum Output Level | Video: 2.3Vpp; Audio: 6.8Vpp | | Bandwidth | Video: 420MHz; Audio: >100kHz | | Differential Gain | 0.03% | | Differential Phase | 0.03Deg | | K-Factor | <0.05% | | S/N Ratio | Video: 72dB @5MHz; Audio: 88dB @1kHz | | Crosstalk | Video: -54dB; Audio: -77dB @1kHz | | CONTROLS | Front panel push buttons, contact closure remote control (on rear panel) | | Coupling | Video: DC; Audio: Input: AC; Output: DC | | Audio THD + Noise | 0.009% | | Audio 2nd Harmonic | 0.001% | | Power Source | 5V DC, 210mA | | Dimensions | 21.46cm x 18cm x 4.36cm (8.45" x 7" x 1.72") W, D, H. | | Weight | 1.1kg (2.4lbs) approx | | Accessories | Power supply | | Options | RK-1 19" rack adaptor | | | | Package Weight | 2.45 lb | | Box Dimensions (LxWxH) | 13.5 x 8.6 x 2.9" |
