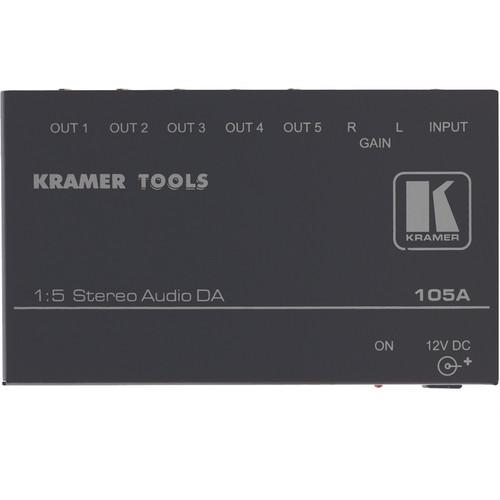

User Manual for Kramer CVG-105A Distribution Amplifier, 1x5, Stereo Audio, Mini Series Click to enlarge the picture
Contents of the user manual for the Kramer CVG-105A Distribution Amplifier, 1x5, Stereo
- Product category: Distribution Amplifiers (DA's) Kramer
- Brand: Kramer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kramer Distribution Amplifiers (DA's)
 |
User manual for the Kramer CVG-105A Distribution Amplifier, 1x5, Stereo contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kramer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kramer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kramer product will considerably shorten its lifespan!
|

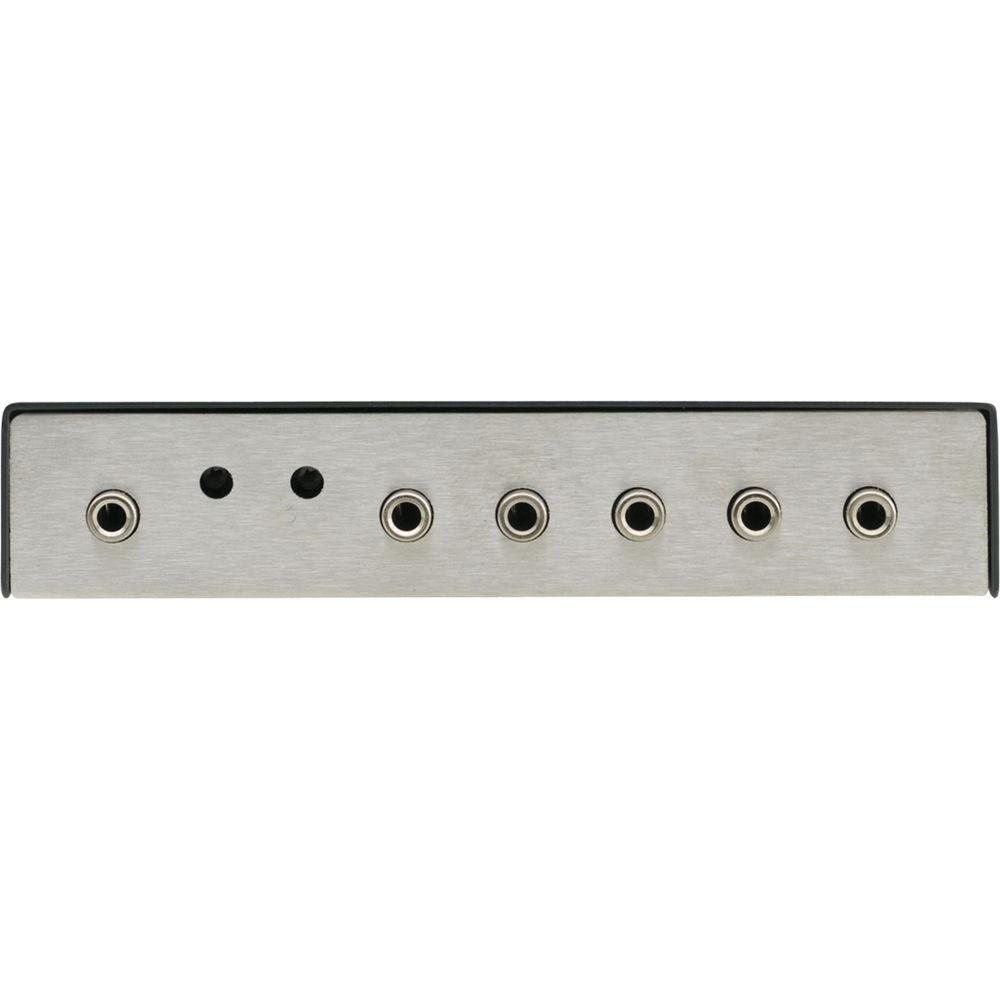

Product description The 105A is part of the mini-series of compact distribution amplifiers. It accepts one unbalanced input on a stereo mini-plug and outputs five identical stereo audio signals through 3.5mm mini plugs. Typical applications are for consumer audio equipment distribution or can be used in conjunction with video distribution amplifiers to distribute the audio for VCR's or DVD's. - Compact Size
- Part of Comprehensive's mini-series, this unit is small enough to fit multiple units into existing rack space. It is also portable enough to use on location productions or in a multi-equipment audio-video situation.
- Multiple Function
- Anything using an unbalanced audio signal can be distributed; consumer VCR's, DVD's, computer sound cards and background music are just some of the functions, only limited by your imagination.
- AC or DC Operation

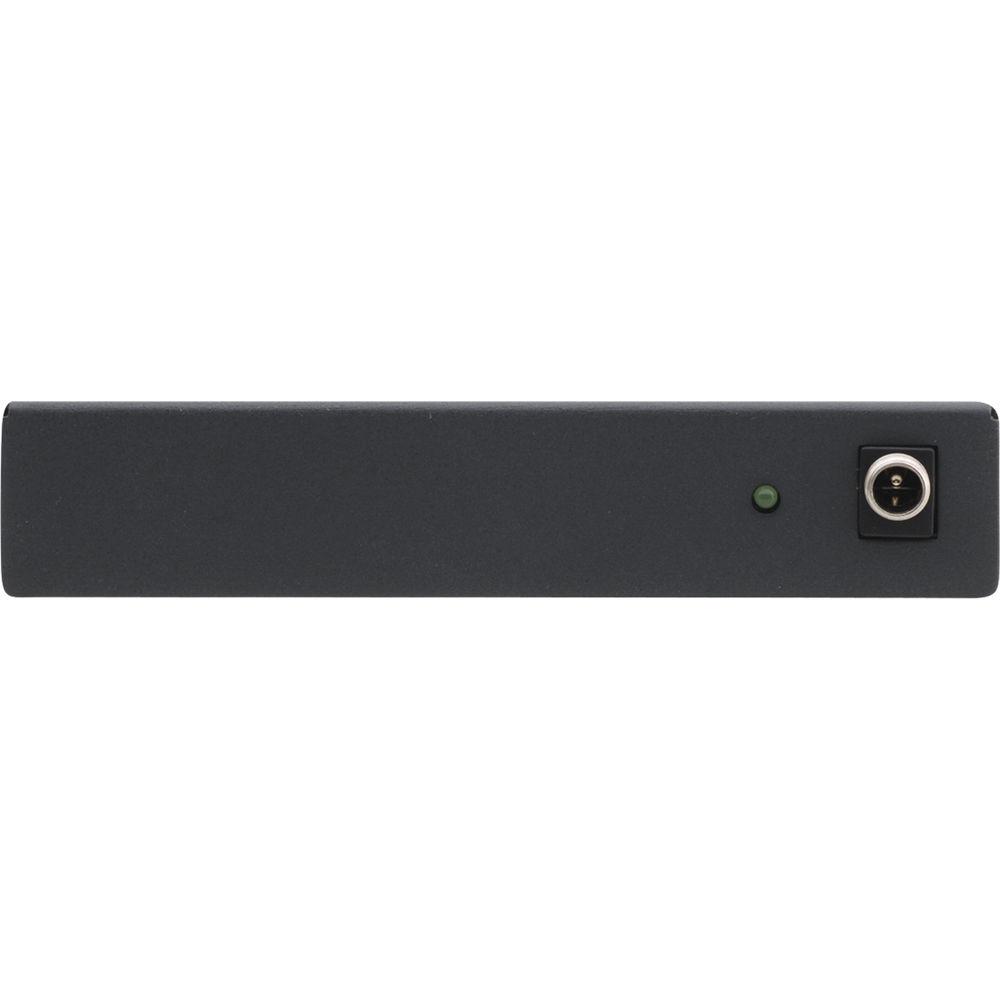

- This unit comes with an AC power supply as standard equipment and can also be powered with 12 Volts DC from an automobile, camera or other 12 Volt supply. With a VA-50P power supply multiple units can be used on one AC output.
In the Box Kramer CVG-105A Distribution Amplifier, 1x5, Stereo Audio, Mini Series AC Power Supply 3 Year Warranty User Manual PDF 2.2mbxbuaadvveewwyazcsurfsauwsf Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer CVG-105A Distribution Amplifier, 1x5, Stereo Audio, Mini Series in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKramer 105A Specs | Input | One stereo audio unbalanced, 1 Vpp @ 33K ohms on a 3.5 mm mini-phone connector | | Output | Five stereo audio unbalanced, 1 Vpp @ 50 ohms on a 3.5 mm mini-phone connectors | | Coupling | AC | | Audio Bandwidth | 20 KHz -0.1 dB | | Signal to Noise Ratio | 80 dB Unweighted | | Audio THD | Less than 0.03% (2nd Harmonic) | | Audio Control | Left and Right Gain Controls
Trim Potentiometers 0 to +3.5 dB | | Dimensions | 4.7 x 2.95 x 0.98" (WxDxH)
12 x 7.5 x 2.5cm (WxDxH) | | Weight | 0.62 lbs
0.28 kg | | Power Source | 12 VDC @ 100 mA
From a Supplied AC Adapter | | Optional Equipment | VA-50P Muliple Unit Power Supply | | | | Package Weight | 1.3 lb | | Box Dimensions (LxWxH) | 9.1 x 5.0 x 3.4" |
