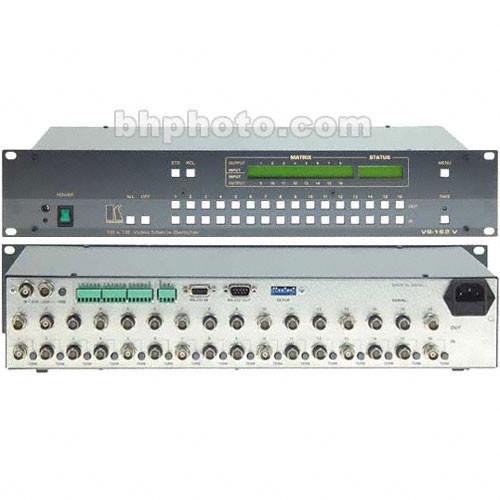

Product description The CVG-162V is a sixteen input, sixteen output, composite video matrix switcher. Is offers the ability to be a Y/C, composite, RGBS, or YUV router. It can be controlled remotely and offers display indicators. - Multi-Format
- This device can be configured to be an 8x8 Y/C video or 4x4 RGBS or 5x5 YUV switcher.
- Remote Control
- Utilizing RS-232 or RS-485 the CVG-162V can be operated from a remote location using a PC or contact closure device.
- Preset Memory
- Sixteen preset memory locations are provided for access to most often used configurations.
- Seamless Transitions
- The user can utilize four different sync options to ensure vertical interval "glitch free" switching.
- Rackmountable
- Fits into exsisting studio rack mount space without extraneous equipment.
In the Box Kramer CVG-162V Video Matrix Switcher, 16x16, Composite-RGBS-Y/C-YUV Video, RS-232, Rackmountable Power Cord Windows Control Software Null Modem Adapter Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer CVG-162V Video Matrix Switcher, 16x16, Composite-RGBS-Y C-YUV Video, RS-232, Rackmountable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKramer VS-162V Specs | Input | Sixteen composite, or eight Y/C, or four RGBS, or five YUV
1 Vpp @ 75 ohms on BNC connectors | | Output | Sixteen composite, or eight Y/C, or four RGBS, or five YUV
1 Vpp @ 75 ohms on BNC connectors | | Switch Type | Vertical Interval
Front Panel Touch Switches
Remote via RS-232 and RS-485 | | Video Bandwidth | 100 MHz | | Differential Gain | 0.01% | | Differential Phase | 0.01° | | Video Signal-to-Noise Ratio | 70.2 dB | | Control | Front Panel Touch Switches
Remote via RS-232 and RS-485
Rear Panel Termination on Inputs | | Power Source | 115 VAC @ 60 Hz
230 VAC @ 50 Hz | | Dimensions (WxDxH) | 19 x 7 x 3.5"
48.26 x 17.78 x 8.9cm | | Weight | 7.8 lbs
3.5 kg | | | | Package Weight | 9.8 lb | | Box Dimensions (LxWxH) | 21.6 x 11.8 x 6.4" |
